Model: CZL602RK
Use: Count the scales, Tea machine, Industrial weighting

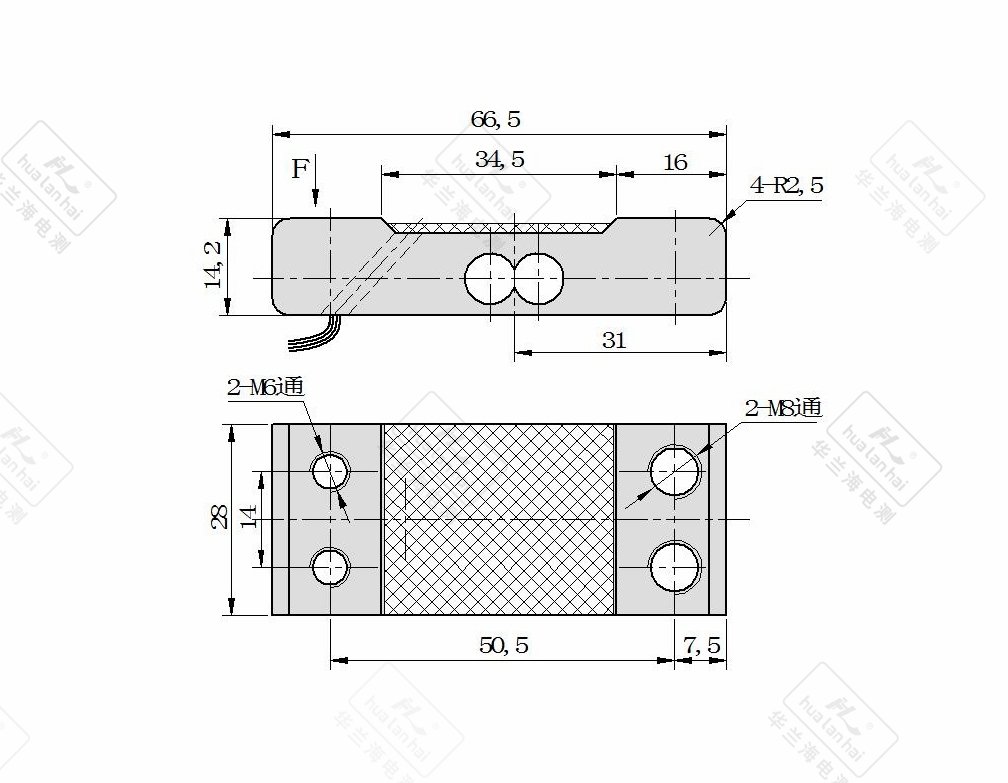

Structural diagram
parameter
Sensor range | 100kg |
Accuracy class | C1 |
Comprehensive error | ±0.05% FS |
Output sensitivity | 2.0±0.2 mV/V |
creep | ±0.05% FS/3min |
Zero output | ±0.05 mV/V |
Input impedance | 350±10Ω |
Output impedance | 350±3Ω |
insulation resistance | ≥5000 MΩ(100VDC) |
Influence of zero temperature | ±0.05% FS/10℃ |
Sensitivity temperature effect | ±0.2% FS/10℃ |
Temperature compensation range | -10℃ ~ +40 ℃ |
Operating temperature range | -20℃ ~ +60 ℃ |
Excitation voltage | 9VDC ~ 12VDC |
Safe overload range | 120% |
Limit overload range | 150% |
Material Science | Aluminum Alloy |
Protection level | IP65 |
External dimension of sensor | 66.5*28*14.2 |
Mounting hole size | 2-M6+2-M8 |
Location of mounting hole | Y14 |
