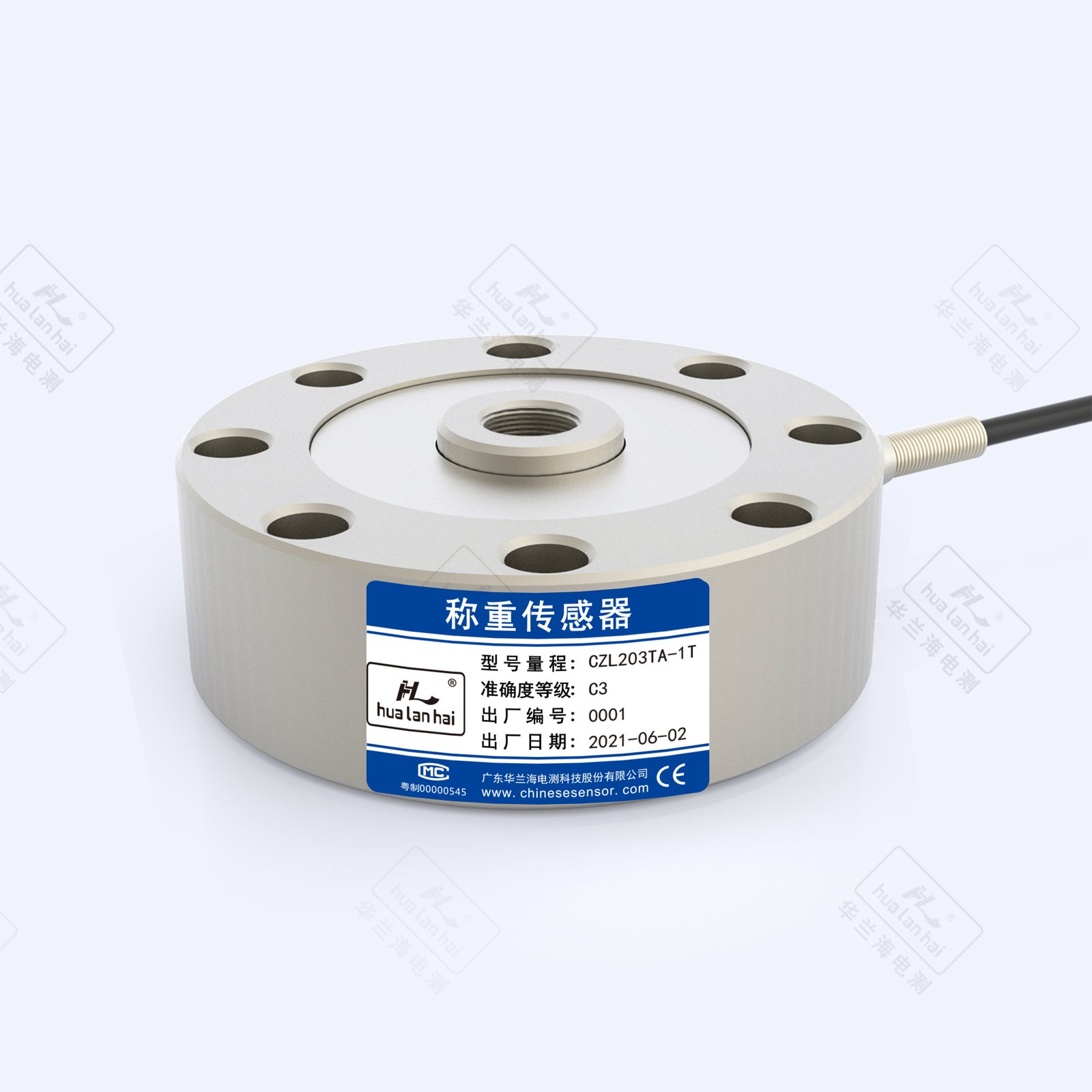

Hualanhai / CZL203TA / 스포크 압력 로드셀

3000N Or Customized Column Type Load Cell FA415 is a model of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA415 can measure 3000N or customized capacity, its Non-linearity and Repeatability both are 0.025%F.S. or customized, its cable size is ⌀4x2000mm or customized length, and its IP Class is IP65 or it also could be customized.

50-500kg 1t Alloy Steel Aluminum Alloy Spoke Type Load Cell FA120A is a model of our brand FIBOS FA1-Series, it belongs to FA120 which is in Spoke Type Load Cell category, FA120A can be used to measure load 50kg,100kg,200kg,500kg and 1t capacity, its Creep(30min) and Repeatability both ≤0.03%F.S., and its Non-linearity and Hysteresis both ≤0.05%F.S..

This sensor is made of high-grade alloy steel, is stable, can be installed in tight spaces, and can be customized. It is suitable for various industrial automation and precision measurement applications.

5000N Or Customized Column Type Load Cell FA462 is a model of Column Type Load Cell, it can measure load 5000N or customized capacity, its Non-linearity and Repeatability are same 0.01%F.S. or customized, we could use Alloy Steel or other customized metallic material as its material.

This weigh module has a rugged and compact design and an accuracy, which makes it especially suitable for load and level monitoring in storage tanks. The sensing element consists of three sections. The two outer sections constitute supports and rest on the built-in block, which is secured to the base. On the middle section, which is the loadsensing part, there is a yoke to which the leg of the tank is secured. The sensor is efficiently locked so that it cannot twist in the built-in block.

25-500kg 0.75-10t Alloy Steel S Beam Load Cell FA307 is from S Beam Load Cell category of our brand FIBOS FA3-Series, FA307 can be used to measure load ranges from 25kg up to 500kg and ranges from 0.75t up to 10t capacity, its Non-linearity,Hysteresis and Repeatability all ≤0.03%F.S., its Creep(30min) ≤0.024%F.S..

20kg The Creep ≤0.05%F.S. Stainless Steel Spoke Type Load Cell FA122B belongs to FA122 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA122B can be used to measure load 20kg capacity, its Creep(30min) ≤0.05%F.S., its Non-linearity and Repeatability both ≤0.1%F.S., and its Hysteresis ≤0.2%F.S..

50,100,150,200t or customized Spoke Type Load Cell FA120F is a model of our brand FIBOS FA1-Series, it belongs to FA120 which belongs to Spoke Type Load Cell category. FA120F can be used to measure load 50t,100t,150t and 200t or customized capacity, its Creep(30min),Non-linearity and Hysteresis all ≤0.08%F.S. or can be customized, and its Repeatability ≤0.09%F.S. or also can be customized.

0-200N Raw Sensitivity 0.6~0.8 Stainless Steel Column Type Load Cell FA906 is a model of our brand FIBOS FA9-Series, Column Type Load Cell FA906 can be used to measure load ranges up to 200N capacity, its Raw sensitivity range is 0.6~0.8, its Rated output range is 4~20mA, and its Zero Balance range is ±1%mV/V.

50,100,200,500,800kg Or Customized Spoke Type Load Cell FA127D belongs to FA127 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA127D can be used to measure load 50kg,100kg,200kg,500kg and 800kg or customized capacity, its Creep(30min) ≤0.032%F.S. or can be customized, its Non-linearity and Repeatability both ≤0.035%F.S. or also can be customized, and its Hysteresis ≤0.038%F.S. or can also be customized.

50-1000N Stainless Steel Column Type Load Cell FA402 is a model of Column Type Load Cell, it belongs to our brand FA4-Series, FA402 can be used to measure load 50N, 100N, 200N, 500N and 1000N capacity, its Creep(30min), Non-linearity, Hysteresis and Repeatability all ≤0.05%F.S., its Cable size is ⌀3x3000mm, and its weight is 0.1kg.

0.1-20kN Stainless Steel Column Type Load Cell FA406 is a model of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA406 could be used to measure load 0.1kN, 0.2kN, 0.5kN, 1kN, 2kN, 5kN, 10kN and 20kN capacity, its Creep(30min), Non-linearity and Hysteresis all ≤0.1%F.S., its Repeatability ≤0.05%F.S., its weight is 0.3kg.
