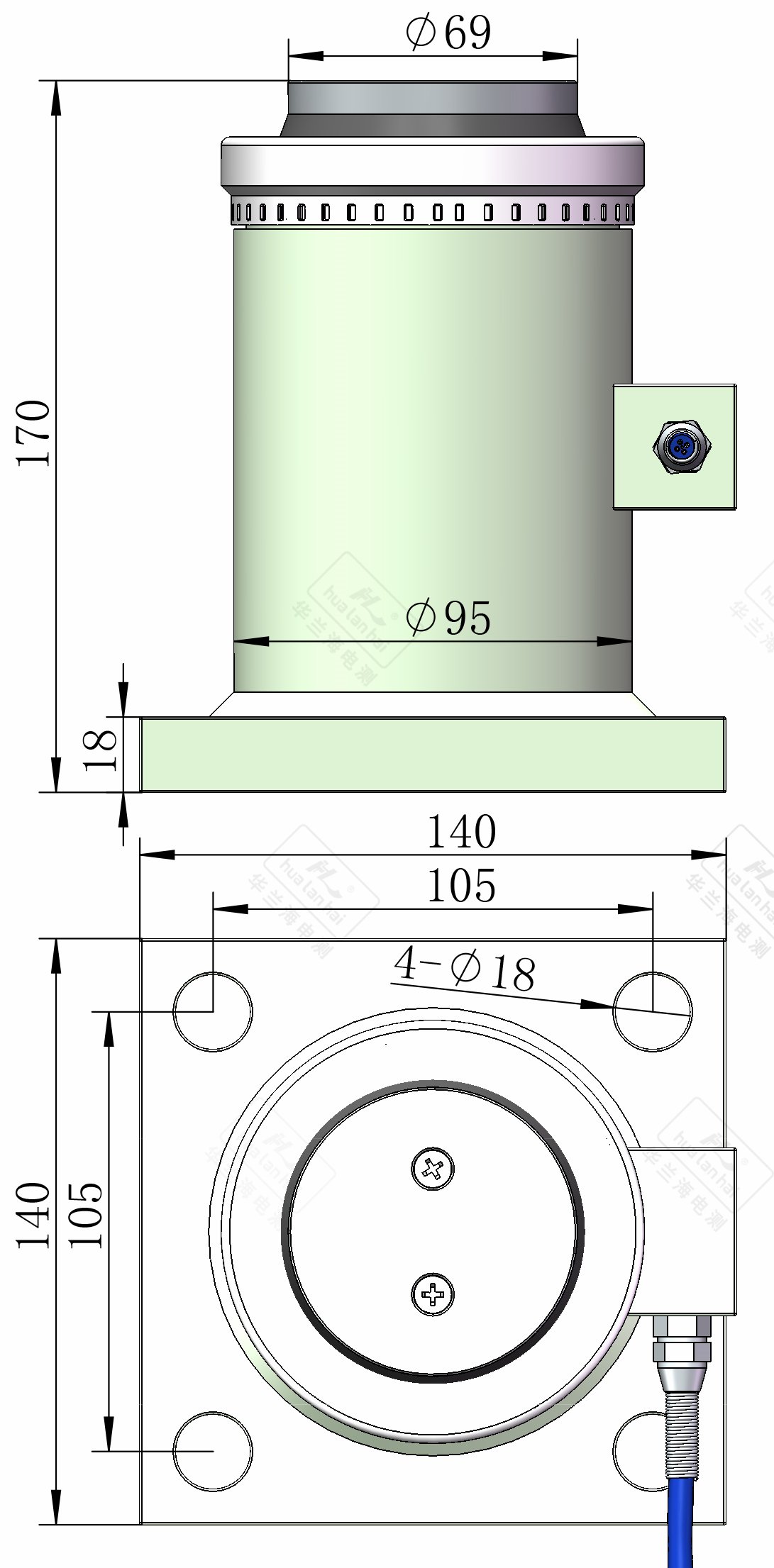

Hualanhai / CZL110E-JK / Column load cell

50kN Or Customized Capacity 0.02%F.S. Or Customized Precision Column Type Load Cell FA120M is a model of Column Type Load Cell, it is designed to measure loads in compression with the 50kN or customized lighter or heavier capacity, it could be used stainless steel or others as its material, its non-linearity is 0.02%F.S. or customized.

Column sensor basic model, with additional pressure head, the installation height can reach 188, 214.

Expansion of column sensor，compared with 110E-JD, the material of shell and cover is stainless steel, and it is mechanically fastened to prevent disassembly. The installation height can reach 188 and 214 with additional indenter.

Expansion of column sensor，compared with 110E-JD, the material of shell and cover is stainless steel, and it is mechanically fastened to prevent disassembly. The installation height can reach 188 and 214 with additional indenter.

This sensor is made of high-grade alloy steel, is stable, can be installed in tight spaces, and can be customized. It is suitable for various industrial automation and precision measurement applications.

Expansion of column sensor，compared with 110E-JD, the material of shell and cover is stainless steel, and it is mechanically fastened to prevent disassembly. The installation height can reach 188 and 214 with additional indenter.

Expansion of column sensor，compared with 110E-JD, the material of shell and cover is stainless steel, and it is mechanically fastened to prevent disassembly. The installation height can reach 188 and 214 with additional indenter.

Stainless steel column sensor with indenter, mounting height 200.

0.5kN 1kN 2kN 3kN 5kN 10kN 20kN 50kN 100kN ≤0.1%F.S. Stainless Steel Column Type Load Cell is a model of Column Type Load Cell, its material is Stainless steel, it could measure load 0.5kN, 1kN, 2kN, 3kN, 5kN, 10kN, 20kN, 50kN and 100kN, its rated output is 1.5±10%mV/V, zero balance is ±0.02mV/V, its weight is 0.8kg or 2kg, and its creep(30min)≤0.1%F.S..

This sensor is based on advanced alloy steel and features narrow space installation, high precision stability, and customization possibilities, making it suitable for a variety of industrial fields including automotive, medical, robotics, and automation.

0.1-20kN Stainless Steel Column Type Load Cell FA406 is a model of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA406 could be used to measure load 0.1kN, 0.2kN, 0.5kN, 1kN, 2kN, 5kN, 10kN and 20kN capacity, its Creep(30min), Non-linearity and Hysteresis all ≤0.1%F.S., its Repeatability ≤0.05%F.S., its weight is 0.3kg.

500kN~20000kN Or Customized Column Type Load Cell FA408-D1 is a model of Column Type Load Cell, it belongs to model FA408 in our brand FIBOS FA4-Series, FA408-D1 could be used to measure load from 500kN to 20000kN or customized capacity, its Non-linearity is 0.05%F.S. or customized, and its Repeatability is 0.02%F.S. or customized, its Cable size is ⌀3x5000mm or customized length.
