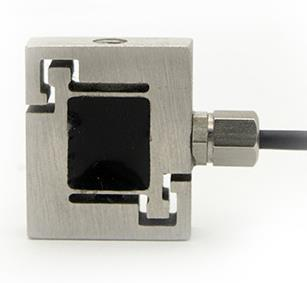

TAS501VD Mini S type load cell
INTRODUCTION:
HT SENSOR / TAS501VD / Mini S type load cell
Product Numbers:TAS501VD
Product description:
Capacity ：5N~2000N
Material: stainless steel
Type: Mini S beam load cell for tension and compression measurement.
With safety overload protection
Defend grade: IP66.
Application: . Mainly used for push-pull force meter, button hand sensitivity tester, hot and cold press pressure detection, robot hand grip, automatic lock screw machine, etc.
합금강으로 제작되었으며, 접착제로 밀봉되고 니켈 도금 처리된 이 모델은 방수 및 내식성이 뛰어나며, IP66 등급의 보호 성능을 갖추고 있습니다.
- Capacity: 0-50kg
- Sensitivity: 1.0~2.0 mV/V
- Non-linearity 0.03% F.S.
- Repeatability 0.03% F.S.
- Material Alloy steel with nickel plated
- Bi-directional tension and compression
- Can be customized
- Capacity: 0-7T
- Sensitivity: 2.0 mV/V
- Non-linearrity 0.03% F.S.
- Repeatability 0.03% F.S.
- Material Alloy steel with nickel plated
- Bi-directional tension and compression
- Can be customized
10-500N Stainless Steel Tension Compression Force Sensor FA306 is a model of our brand FIBOS FA3-Series, Tension Compression Force Sensor FA306 can be used to measure tension and compression force 10N,20N,50N,100N,150N,200N and 500N capacity, its Rated output range is 2.0±10%mV/V, and its Zero Balance range is ±2%F.S..
50-2000N Stainless Steel S Beam Load Cell FA303 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA303 can be used to measure load 50N,100N,200N,500N,1000N and 2000N capacity, its Weight is 0.2kg and material is Stainless steel, its Rated output range is 2.0±10%mV/V, its Zero Balance range is ±0.05mV/V.
25-500kg 0.75-10t Alloy Steel S Beam Load Cell FA307 is from S Beam Load Cell category of our brand FIBOS FA3-Series, FA307 can be used to measure load ranges from 25kg up to 500kg and ranges from 0.75t up to 10t capacity, its Non-linearity,Hysteresis and Repeatability all ≤0.03%F.S., its Creep(30min) ≤0.024%F.S..
- Capacity: 0-200kg
- Sensitivity: 1.0~2.0 mV/V
- Non-linearity 0.05% F.S.
- Repeatability 0.03% F.S.
- Material Stainless steel with nickel plated
- Bi-directional tension and compression
- Can be customized
Made of alloy steel, this model is sealed with adhesive and nickel-plated, offering excellent waterproof and corrosion resistance with an IP66 protection rating.
10,20,50,100,200,500,1000N or customized S Beam Load Cell FA302L is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302L can be used to measure load 10N,20N,50N,100N,200N,500N and 1000N or customized capacity, its Cable size is ⌀4x1000mm or customized length.
Made of alloy steel, this model is sealed with adhesive and nickel-plated, offering excellent waterproof and corrosion resistance with an IP66 protection rating.
- Capacity: 50kg-7T
- Sensitivity: 2.0~3.0±10% mV/V
- Non-linearrity 0.03% F.S.
- Repeatability 0.03% F.S.
- Material Alloy steel with nickel plated
- Bi-directional tension and compression
- Can be customized
