Honeywell / Model UG / Ultra Precision Universal Canister Load Cell
Honeywell / Model UG / Ultra Precision Universal Canister Load Cell

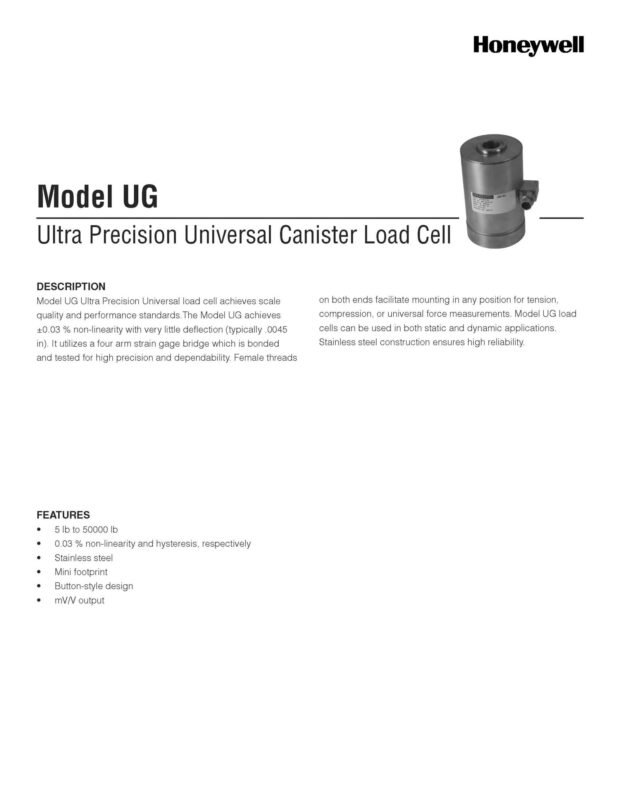

Model UG Ultra Precision Universal load cell achieves scale quality and performance standards.The Model UG achieves ±0.03 % non-linearity with very little deflection (typically .0045 in). It utilizes a four arm strain gage bridge which is bonded and tested for high precision and dependability. Female threads on both ends facilitate mounting in any position for tension, compression, or universal force measurements. Model UG load cells can be used in both static and dynamic applications. Stainless steel construction ensures high reliability.
In the fierce market competition, Ningbo Santwell Import & Export Co., Ltd has grown continuously. We invest in R&D to find better solutions in the Force Sensors & Load Cells industry. It is designed to meet the industry criterion. Reflecting the latest industry trend and development, our Compression Load Cell 50t 50 Ton Type System Column Sensor Load Cell for Testing Machines CMTD is designed to be attractive enough to catch people’s attention. Moreover, it has some excellent characteristics, which makes it more value-added. In this competitive market, this Force Sensors & Load Cells has the greatest appreciation space.
| Model Number: | CMTD | Place of Origin: | Zhejiang, China |
| Brand Name: | santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 10-50t | Sensitivity: | 2.0000mV/V |
| Total Error: | ±0.1%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
Nickel plated alloy steel IP68 column shear load cell
Hermetically sealed
Suitable for truck, track, hopper and other electronic weighing devices
High accuracy
Protected against lightning surges
Current calibrated (sc option)
1.Made of stainless steel;
2. Suitable for proportioning control system, detecting equipment and other weighing devices.
Ningbo Santwell Import & Export Co., Ltd always upholds the principle of’complementary advantages, mutual benefit and win-win’, and has established long-term cooperative relations with many well-known domestic and foreign companies. The product is characterized by multiple advantages.Its application ranges have been expanded to the Force Sensors & Load Cells. Santwell has been dedicated to the design, R&D, manufacturing, and updates of Load cells, Subminiature force transducers, miniature load cells, Intelligent load cells. We fully hope that we can satisfy customers from different fields, countries, and regions by offering them high-quality products and professional service. If you have any questions or problems, please contact us at any time through the contact information listed on our website.
| Model Number: | CM14G | Type: | / |
| Place of Origin: | Zhejiang, China | Brand Name: | santwell |
| Usage: | / | Theory: | / |
| Output: | / | Description: | / |
| Rated output: | 10t,20t, 30t, 40t,50t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.02%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V (AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Safe Over load: | 150%F.S |
| Ultimate Overload: | 200%F.S | Working temperature: | (-30~70)℃ |
| Model Number: | CMC-(M) | Place of Origin: | Zhejiang, China |
| Brand Name: | SANTWELL | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 10-40t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.02%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~18V(AC or DC) | Maximum Excitation Voltage: | 24V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Utimate Overload: | 200%F.S |
The Model 3130-131 fatigue-resistant load cells are extremely resistant to extraneous bending and side loading forces. The structure virtually eliminates bending strains at the strain gage, minimizing the primary cause of load cell failure. Dual bridge option available for feedback control and redundancy.
C16A 로드셀은 자체 복원(Self-restoring) 기능을 갖추고 있어 매우 견고하고 신뢰성이 높으며, 다양한 용도에 활용될 수 있으며 고하중 환경에서도 사용 가능합니다.
Product description：
The sensor with self-stabilizing shaking column structure is adopted, and the laser welding sealing technique is adopted. Low height, easy to install and fast. Provide a variety of forms of connection, customers can directly choose the appropriate connection according to different applications, to ensure the accuracy of measurement. Laser welding seal, protection class IP68, can be used in a variety of complex environments. The product is suitable for truck scales and track scales, all kinds of large tonnage batching control and material filling weighing.
Main Features：
• Material: Alloy steel, stainless steel optional
• Rated Capacities: 30t~50t
• OIML R60, NTEP HB44, CPA, CE and RoHS certified
• IP Rating: IP68(UT-CS600A), IP69K(UT-CS600S)
• Suitable for truck scales, heavy duty hopper scales
force measurement equipment.
• High precision by OlML R60 C4, high reliability
Category: Canister Compression
Product description:
The P510 series is a typical and standard cost-efficient canister compression load cell with compact and robust machined canister. The P510 is fully hermetically sealed with upper and base convers; which enable it to work in the harshest conditions. A rocker column design ensures optimum weighing accuracy when subjected to off-center and side forces when the scale deck is moving back and forth, meanwhile left and right.
Main Features:
• Material: Alloy steel, stainless steel optional
• Rated Capacities: 30t~50t
• OIML R60, NTEP HB44, CPA, CE and RoHS certified
• IP Rating: IP68(P510A), IP69K(P510S)
• Suitable for truck scales, heavy duty hopper scales, force measurement equipment.
• High precision by OIML R60 C4, high reliability
Category: Canister Compression
The load cells of the Series CNR950 are specially designed to meet the purpose of compression force applications. These load cells incorporate a compact canister design on top of an integral spherical load button. It is made of welded stainless steel, ensuring that it is able to withstand even the harshest applications environments.
