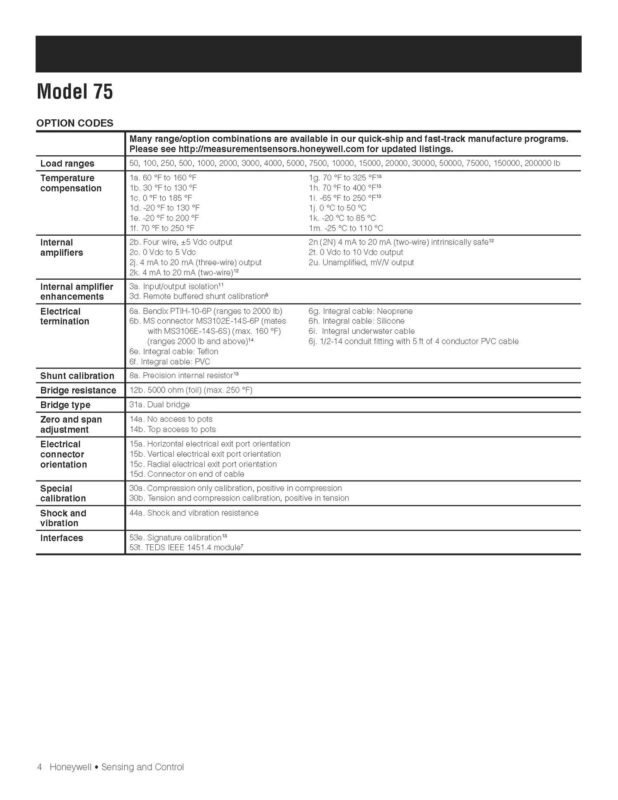

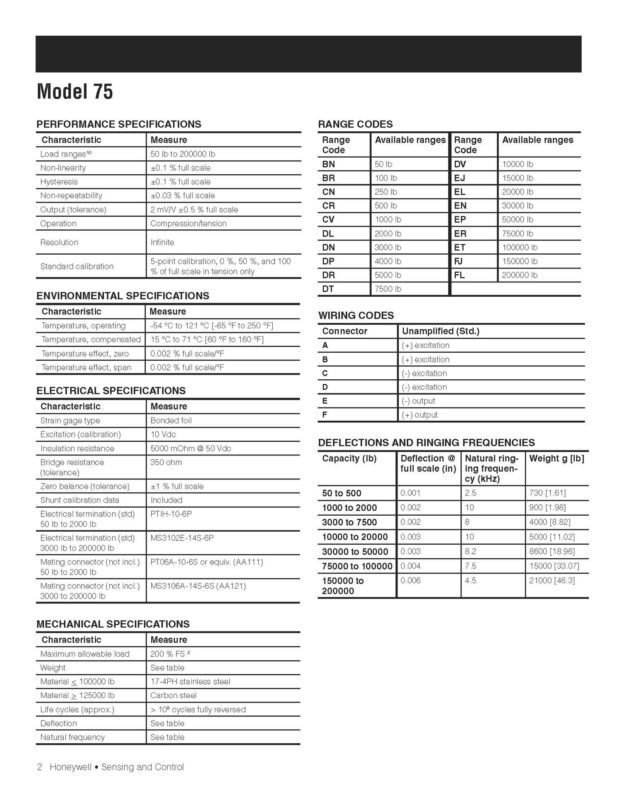

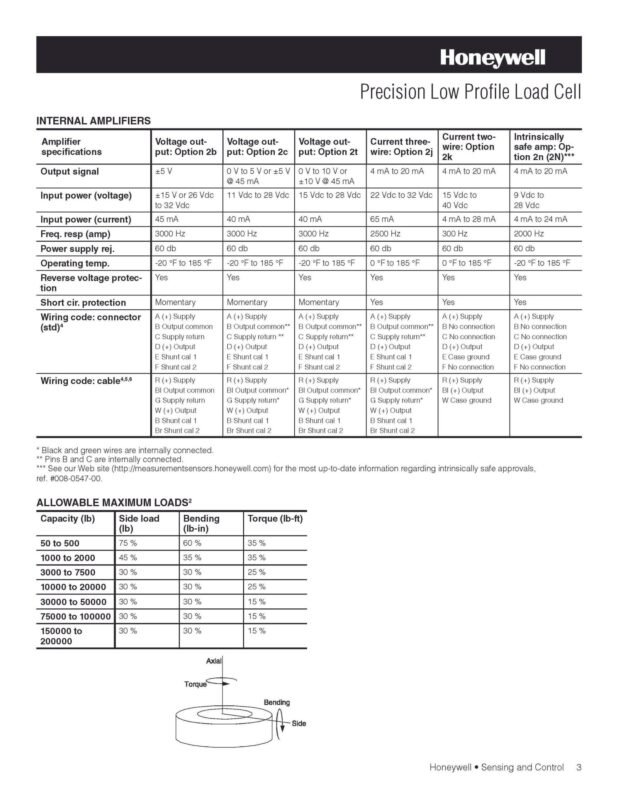

Honeywell Model 75 Precision Low Profile Load Cell
Made of alloy steel, this model is sealed with adhesive and nickel-plated, providing excellent waterproof and corrosion resistance, and features an IP66 protection rating.
Honeywell / Model 75 Precision Low Profile Load Cell

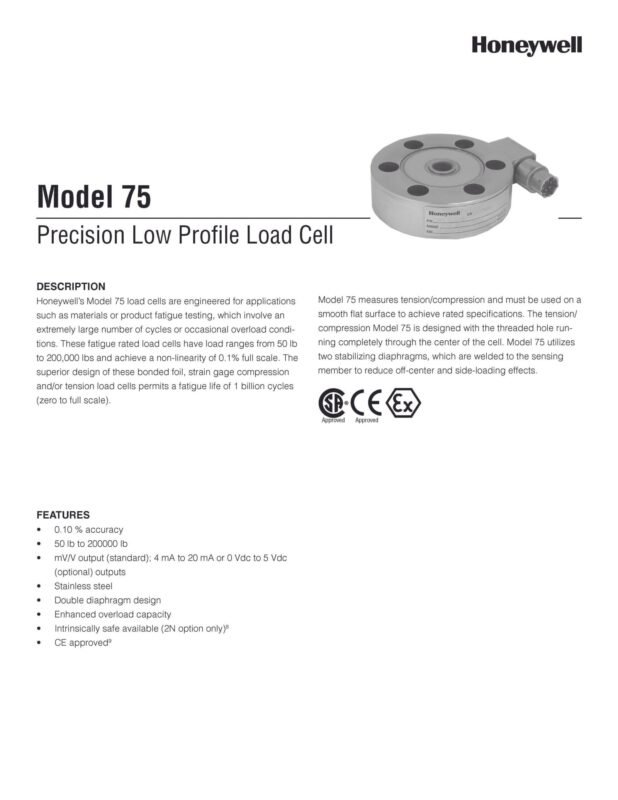

Honeywell’s Model 75 load cells are engineered for applications such as materials or product fatigue testing, which involve an extremely large number of cycles or occasional overload conditions. These fatigue rated load cells have load ranges from 50 lb to 200,000 lbs and achieve a non-linearity of 0.1% full scale. The superior design of these bonded foil, strain gage compression and/or tension load cells permits a fatigue life of 1 billion cycles (zero to full scale).
Model 75 measures tension/compression and must be used on a smooth flat surface to achieve rated specifications. The tension/compression Model 75 is designed with the threaded hole running completely through the center of the cell. Model 75 utilizes two stabilizing diaphragms, which are welded to the sensing member to reduce off-center and side-loading effects.
Diameter 120mm 10-500kg Limited Room Force Measurement Applied Ring Force Sensor FA128A belongs to FA128 which is in our brand FIBOS FA1-Series. FA128A can be used to measure force 1kg,2kg,5kg,10kg,20kg and 50kg or customized capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability are same with FA128 but also can be customized.
Ningbo Santwell Import & Export Co., Ltd has been one of the industry leaders due to providing high-quality products to clients and it is very possible for the company to achieve a greater advancement in the future. Apart from the benefits for general consumers, 0.05/0.1/0.2/0.5/10/20 Ton spoke load cell style Compression Button Pancake load cell LFB can offer amazing advantages to businesses in terms of sales and customer satisfaction. Ningbo Santwell Import & Export Co., Ltd adhere to the corporate philosophy of ‘people orientation’ and always advocate honesty, innovation, and fairness. We hope to occupy an important position in the industry and become one of the most leading brands in the future.
| Model Number: | LFB | Type: | Load Cell |
| Place of Origin: | Zhejiang, China | Brand Name: | Santwell |
| Description: | shear beam load cell | Rated Load: | 0.05/0.1/0.2/0.5/1/2/5/10/20 |
| Sensitivity: | 2.0000±0.002mv/v | Total Error: | ±0.02%F.S |
| Creep(30 minutes): | ±0.02%F.S | Recommended Excitation Voltage: | 5V-12V(AC or DC) |
| Maximum Excitation Voltage: | 15V(AC or DC) | Zero Balance: | ±1%F.S |
| Insulation Impedance: | ≥5000MΩ | Safe Overload: | ±150%F.S |
| UItimate Overload: | ±200%F.S |
50kg 100kg 200kg 500kg ≤0.1%F.S. Stainless Steel Spoke Type Load Cell FA122C is a model of our brand FIBOS FA1-Series, Spoke Type Load Cell FA122C can be used to measure load ranges from 50kg,100kg,200kg up to 500kg capacity, its Cable size is ⌀4x3m and its material is Stainless steel, its Rated output range is 1.5~2.0mV/V.
10-500kg Alloy Steel Ring Force Sensor FA128 is a model of our brand FIBOS FA1-Series, Ring Force Sensor FA128 can be used to measure force 10kg,20kg,50kg,100kg,200kg and 500kg capacity, its Rated output range is 1.0±10%mV/V, its Zero Balance range is ±1%mV/V, its Creep(30min) ≤0.1%F.S., its Non-linearity and Repeatability both ≤0.2%F.S., and its Hysteresis ≤0.3%F.S..
Made of alloy steel, this model is sealed with adhesive and nickel-plated, offering excellent waterproof and corrosion resistance with an IP66 protection rating.
50,100,150,200t or customized Spoke Type Load Cell FA120F is a model of our brand FIBOS FA1-Series, it belongs to FA120 which belongs to Spoke Type Load Cell category. FA120F can be used to measure load 50t,100t,150t and 200t or customized capacity, its Creep(30min),Non-linearity and Hysteresis all ≤0.08%F.S. or can be customized, and its Repeatability ≤0.09%F.S. or also can be customized.
After a long period of exploration,Ningbo Santwell Import & Export Co., Ltd has launched High Technology Industrial Weighing Alloy Steel prices of load cell spoke load cell 30 Ton LFR. We pride ourselves on our personalized and efficient service. In order to be able to successfully meet the challenges,Ningbo Santwell Import & Export Co., Ltd will continue to forge ahead on the road of technological innovation. In addition, it will also work hard to analyze the changing needs of the market and create better products for customers according to their needs.
| Model Number: | LFR | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Description: | spoke style load cell | Rated Load: | 0.5/1/2/3/5/10/30/40/50/60 |
| Sensitivity: | 2.0000±0.002mv/v | Total Error: | ±0.02%F.S |
| Creep(30 minutes): | ±0.02%F.S | Recommended Excitation Voltage: | 5V-18V(AC or DC) |
| Maximum Excitation Voltage: | 24V(AC or DC) | Zero Balance: | ±1%F.S |
| Insulation Impedance: | ≥5000MΩ | Safe Overload: | ±150%F.S |
| UItimate Overload: | ±200%F.S | Application: | Car weighter orbit weighter batching weighing |
We always create a perfect quality of product at prices that meet a customer’s budget. Miniature tension load cell Sensor Pull Pressure Weighing Module Automatic Force load cell 100Kg LFC provides not only excellent quality, but also very favorable price. Ningbo Santwell Import & Export Co., Ltd have long desired to become one of the most influential enterprises in the industry. At present, we are busy improving our capabilities in product manufacturing, and gathering talents especially technical talents to develop our own core technologies.
| Model Number: | LFC | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Description: | shear beam load cell | Rated Load: | 50kg~200kg |
| Sensitivity: | 2.0000±0.002mv/v | Total Error: | ±0.01%F.S |
| Creep(30 minutes): | ±0.02%F.S | Recommended Excitation Voltage: | 5V-18V(AC or DC) |
| Maximum Excitation Voltage: | 24V(AC or DC) | Zero Balance: | ±1%F.S |
| Insulation Impedance: | ≥1000MΩ | Safe Overload: | ±150%F.S |
| UItimate Overload: | ±200%F.S | Application: | Crane scales weigh-hopper scales and weigh-in |
50-70t Spoke Type Load Cell FA120C is a model of our brand FIBOS FA1-Series, it belongs to FA120 which is in Spoke Type Load Cell category, FA120C can be used to measure load 50t and 70t capacity, its Zero Balance range is ±1%F.S., its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S..
10-2000kg Stainless Steel Ring Force Sensor FA115 is a model of our brand FIBOS FA1-Series, Ring Force Sensor FA115 can be used to measure force 10kg,20kg,50kg,100kg,200kg,300kg, 500kg,1000kg and 2000kg capacity, its Creep(30min) ≤0.1%F.S., its Hysteresis and Repeatability both ≤0.2%F.S., and its Non-linearity ≤0.3%F.S..
0.1-30t ≤0.05%F.S. Alloy Steel Miniature Industrial Automation Applied Spoke Type Load Cell FA120B is a model of our brand FIBOS FA1-Series, Spoke Type Load Cell FA120B can be used to measure load 0.1t,0.2t,1t,2t,3t,5t,10t,15t,20t and 30t capacity, its Non-linearity ≤0.05%F.S. and its Repeatability ≤0.03%F.S..
