Honeywell Model 73 Precision Fatigue-Rated Low Profile Load Cell
Honeywell / Model 73 Precision Fatigue-Rated Low Profile Load Cell

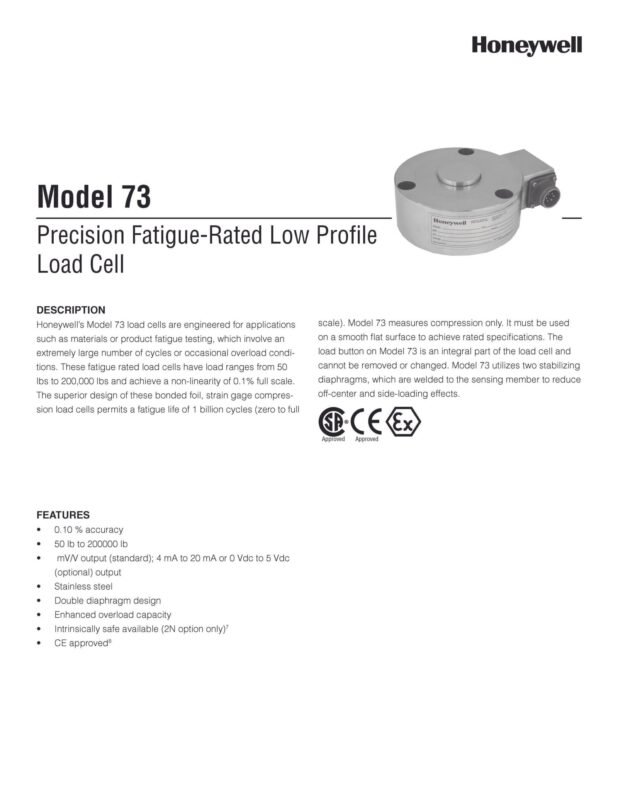

Honeywell’s Model 73 load cells are engineered for applications such as materials or product fatigue testing, which involve an extremely large number of cycles or occasional overload conditions. These fatigue rated load cells have load ranges from 50 lbs to 200,000 lbs and achieve a non-linearity of 0.1% full scale. The superior design of these bonded foil, strain gage compression load cells permits a fatigue life of 1 billion cycles (zero to full scale). Model 73 measures compression only. It must be used on a smooth flat surface to achieve rated specifications. The load button on Model 73 is an integral part of the load cell and cannot be removed or changed. Model 73 utilizes two stabilizing diaphragms, which are welded to the sensing member to reduce off-center and side-loading effects.
Micro Compression Force Sensor
D 105mm*H 37mm（size optional）
Capacity: 0.1,0.2,1,2,3,5,10,15,20,30t
Category: Spoke Load Cell
Designed for general purpose use in demanding applications in automotive, aerospace, and military applications. Some advantages of these tension/compression load cells include compact size, high accuracy, and cost efficiency. The 3140-P has smaller maximum off-center load and moment error than the standard 3140 Series.
Micro Dount Compression Force Sensor
D 95.5mm*H 30mm
Capacity: 5,10,20,30,50kN
Category: Donut Load Cell&Force Sensor
Mainly used for pushing, pulling force gauge, hopper scale, various industrial weighing systems, etc .;
Automotive assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly.
Material: Alloy steel Aluminum alloy
Size: Cylindrical, Low height
Low Profile Pancake Load Cell
D 74mm*H 34mm
Capacity: 50,100,200,500kg,1t
Category: Spoke Load Cell
These general purpose designs have exceptional structural capability to withstand extraneous loads, such as torque, bending moments, and side loads. Available in capacities of 25 lb to 300 lb, they offer maximum performance and enhanced accuracy. Minimum deflection and compactness make these general-purpose load cells easy to install and use.
These general purpose designs have exceptional structural capability to withstand extraneous loads, such as torque, bending moments, and side loads. Available in capacities of 25 lb to 300 lb, they offer maximum performance and enhanced accuracy. Minimum deflection and compactness make these general-purpose load cells easy to install and use.
