Honeywell Model 53 Low Cost Load Cell
Honeywell / Model 53 / Low Cost Load Cell

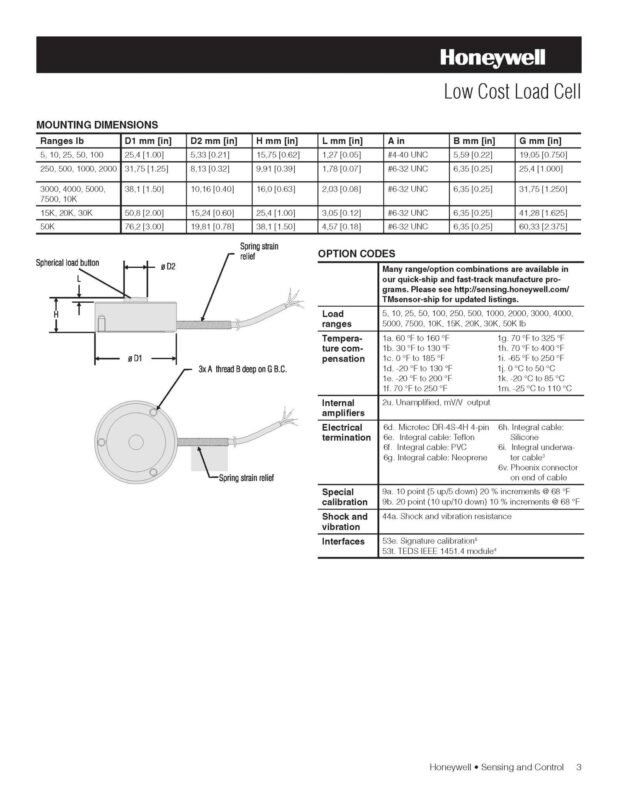

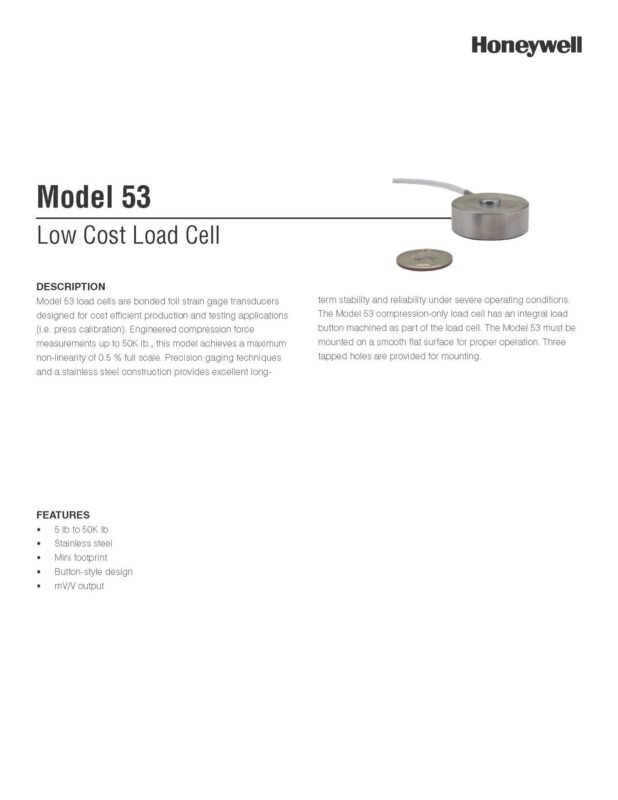

Model 53 load cells are bonded foil strain gage transducers designed for cost efficient production and testing applications (i.e. press calibration). Engineered compression force measurements up to 50K lb., this model achieves a maximum non-linearity of 0.5 % full scale. Precision gaging techniques and a stainless steel construction provides excellent long-term stability and reliability under severe operating conditions. The Model 53 compression-only load cell has an integral load button machined as part of the load cell. The Model 53 must be mounted on a smooth flat surface for proper operation. Three tapped holes are provided for mounting.
This sensor is based on advanced alloy steel and features narrow space installation, high precision stability, and customization possibilities, making it suitable for a variety of industrial fields including automotive, medical, robotics, and automation.
50,100,200,500,800kg Or Customized Spoke Type Load Cell FA127D belongs to FA127 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA127D can be used to measure load 50kg,100kg,200kg,500kg and 800kg or customized capacity, its Creep(30min) ≤0.032%F.S. or can be customized, its Non-linearity and Repeatability both ≤0.035%F.S. or also can be customized, and its Hysteresis ≤0.038%F.S. or can also be customized.
The elastomer of sensor is made of aluminum alloy, sealed by glue, colorless anodized on the surface. The protection rating reaches IP65.
The elastomer of sensor is made of aluminum alloy, sealed by glue, colorless anodized on the surface. The protection rating reaches IP65.
This sensor is made of high-grade alloy steel, is stable, can be installed in tight spaces, and can be customized. It is suitable for various industrial automation and precision measurement applications.
The elastomer of sensor is made of aluminum alloy, sealed by glue, colorless anodized on the surface. The protection rating reaches IP65.
The elastomer of sensor is made of aluminum alloy, sealed by glue, colorless anodized on the surface. The protection rating reaches IP65.
The elastomer of sensor is made of aluminum alloy, sealed by glue, colorless anodized on the surface. The protection rating reaches IP65.
The elastomer of sensor is made of aluminum alloy, sealed by glue, colorless anodized on the surface. The protection rating reaches IP65.
20kg The Creep ≤0.05%F.S. Stainless Steel Spoke Type Load Cell FA122B belongs to FA122 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA122B can be used to measure load 20kg capacity, its Creep(30min) ≤0.05%F.S., its Non-linearity and Repeatability both ≤0.1%F.S., and its Hysteresis ≤0.2%F.S..
The elastomer of sensor is made of aluminum alloy, sealed by glue, colorless anodized on the surface. The protection rating reaches IP65.
The elastomer of sensor is made of aluminum alloy, sealed by glue, colorless anodized on the surface. The protection rating reaches IP65.
