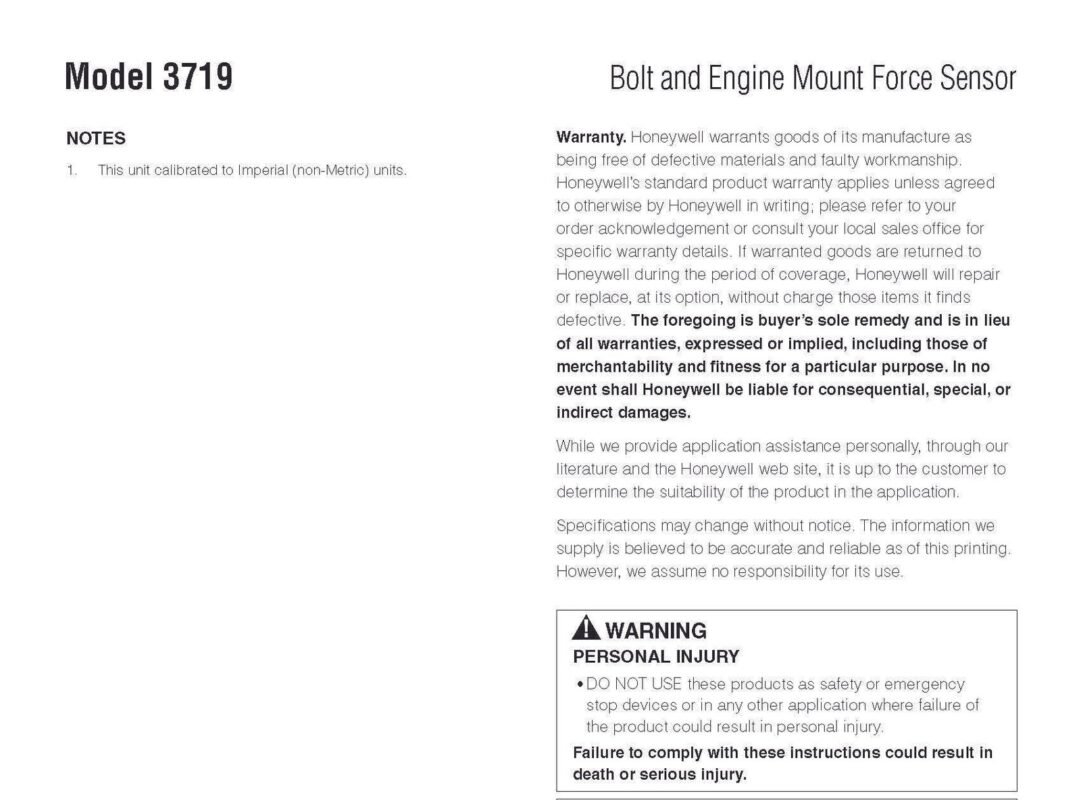

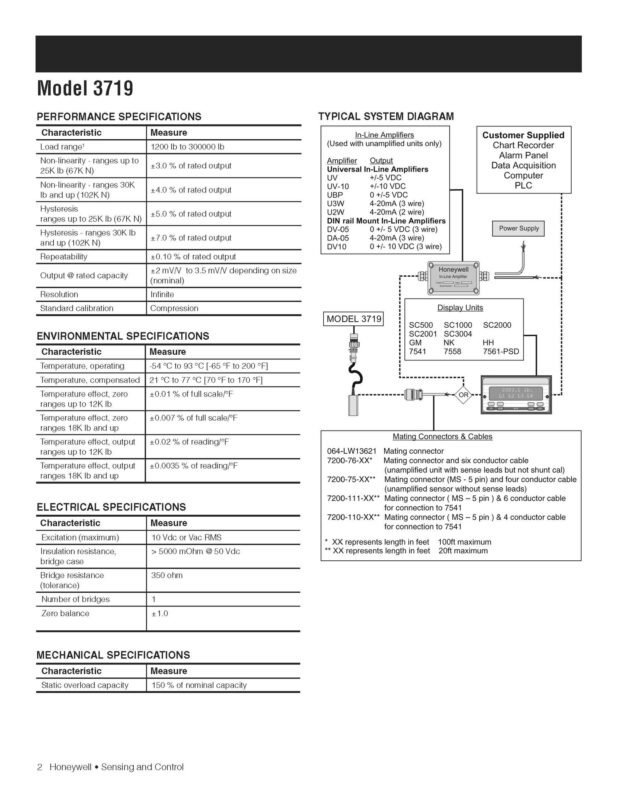

Honeywell / Model 3719 / Bolt and Engine Mount Force Sensor

Product description:
Capacity ：100kg~5000kg
Stainless Steel
High stability
Hollow design, two-way flange connection, with easy installation
Widely used in bolt monitoring, washer bolt preload force sensor of various equipment, suitable for bolt tightening force detection,extrusion, assembly, tank, material mechanics testing machine and other fields.

This sensor is suitable for most domestic and foreign cooperative robots. It is an embedded high-precision six-axis force sensor that our company hot sells. It uses silicon strain gauge, based on the principle of strain electrical measurement to convert the load into voltage signal, combined with six axis joint calibration technology to make the product achieve higher accuracy and precision. It is widely used in 3C testing, medical testing, drag teaching, automobile testing, and other fields.

KWR116 series is designed specifically for industrial robotic applications. The series provides a wide range of force and torque capacities to select from. It has various versions for different requirements.The built-in high-precision data acquisition module can combine with the six-axis joint decoupling algorithm to achieve higher accuracy and precision of the sensor.

KWR75EC series is a kind of hex force torque sensor which integrated with industrial Ethernet moduel, so that the product could better support terminal equipment in various industries. The customer needn’t to configure the serial port server box, which reduces the space occupation and the complexity of the connection.

Product description:
Capacity ：500kg~5000kg
Stainless Steel
High stability
Hollow design, two-way flange connection, with easy installation
Widely used in bolt monitoring, washer bolt preload force sensor of various equipment,suitable for bolt tightening force detection,extrusion, assembly, tank, material mechanics testing machine and other fields.

The BPR029 compression force sensor provides the ideal solution for bolt force monitoring. It can be used in product assembly lines in various industries, such as automotive assembly, robotics and other semi-automatic assembly lines, for measuring or monitoring bolt forces. It has a high dynamic response frequency and is suitable for fast measurement.

1.The elastic body adopts S-beam structure, which has the advantages of compact appearance, threaded design at both ends, small volume, high precision and easy installation, and can meet the force measurement in the range of 1-100kg.
2.It is mainly used for automobile press-fitting, automatic assembly, 3C product testing, robot hand grip, keyboard feel testing,etc.
3.At the same time, it is also widely used in the force measuring system of belt scale, hopper scale, electromechanical combination scale, universal material testing machine, hook scale and various engineering devices.
4.oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments.

• Stainless steel, tension and pressure can be measured in both directions!
• Suitable for pull and push dynamometer,hopper scale and industrial measuring systems.

1.S-shape is a common shape of force sensor, which is characterized by simple structure, light weight, convenient installation, high precision, good linearity and high stability. This kind of sensor is usually used to measure light load and medium load.
2.S-Type load cells that receive tension or compression forces. Applications include tank weighing, hoppers, suspended loads and truck scales. S-Type load cells provide superior performance in a compact, versatile package.
3.it can be used in mechanical and electrical integration scales, crane scales, hopper scales and various special application scales and industrial measurement systems.
4.Wide range of capacities :0-1.5T
5.Alloy steel construction
6.Environmental Protection IP65 with complete hermetic sealing
7.Calibration in mV/V Low profile design

It is Also known as shear beam weighing sensor, its shape is mostly rectangular, and the strain zone is located in the middle of the sensor. The cantilever beam weighing sensor has the characteristics of simple structure, easy installation, reliable use, long service life, and high cost-effectiveness.
Cantilever beam weighing sensors are used in highway scales such as automobile scales, main axle load gauges, small weighing scales, and flat scales in industrial scales Platform scales, steel cylinder scales, and other fields have been widely used, generally using three or four sensors as a group.
