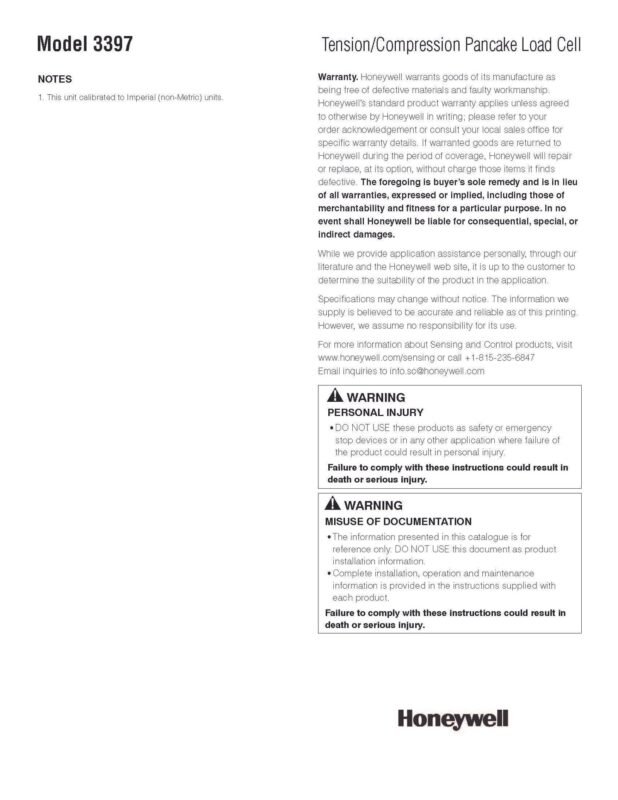

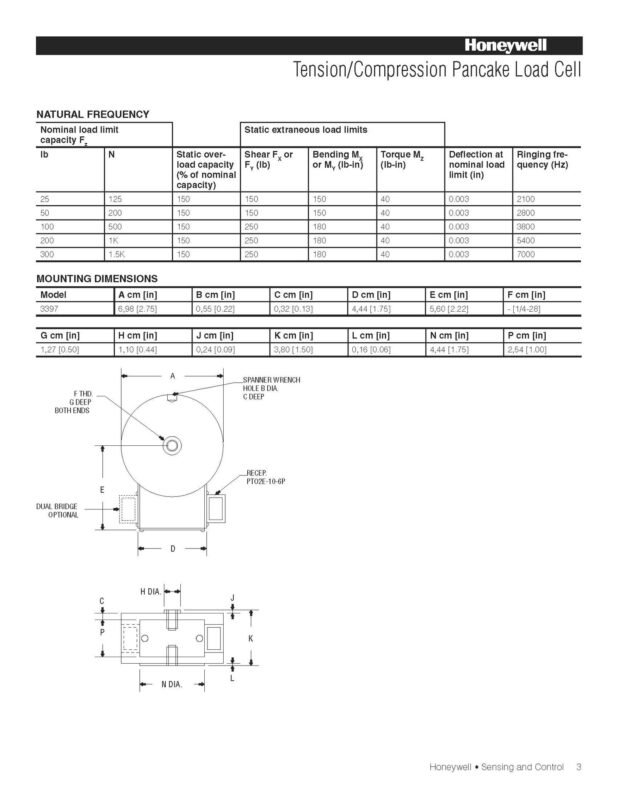

Honeywell Model 3397 Tension/Compression Pancake Load Cell
Honeywell / Model 3140 / Tension/Compression Pancake Load Cell
These general purpose designs have exceptional structural capability to withstand extraneous loads, such as torque, bending moments, and side loads. Available in capacities of 25 lb to 300 lb, they offer maximum performance and enhanced accuracy. Minimum deflection and compactness make these general-purpose load cells easy to install and use.
10-150kN Stainless Steel Tension Compression Force Sensor FA403 is a model of our brand FIBOS FA4-Series, Tension Compression Force Sensor FA403 can be used to measure tension and compression force 10kN,20kN,50kN,75kN,100kN and 150kN capacity, its Rated output range is 2.0±10%mV/V, and its Zero Balance range is ±0.05mV/V.
0.1-30t ≤0.05%F.S. Alloy Steel Miniature Industrial Automation Applied Spoke Type Load Cell FA120B is a model of our brand FIBOS FA1-Series, Spoke Type Load Cell FA120B can be used to measure load 0.1t,0.2t,1t,2t,3t,5t,10t,15t,20t and 30t capacity, its Non-linearity ≤0.05%F.S. and its Repeatability ≤0.03%F.S..
10,20,50,100kg Or Customized Tension Compression Force Sensor FA208 is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor can be used to measure tension and compression force 10kg,20kg,50kg and 100kg or can be customized, its Creep(30min) ≤0.015%F.S. or can be customized, its Non-linearity,Hysteresis and Repeatability all ≤0.016%F.S. or can also be customized.
1-50kN Stainless Steel Tension Compression Force Sensor FA206 is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor FA206 can be used to measure tension and compression force 1kN,2kN,5kN,10kN,20kN and 50kN capacity, its Zero Balance range is ±0.03mV/V, its Cable size is ⌀4x3000mm.
50-1000kg Stainless Steel Tension Compression Force Sensor FA205 is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor FA205 can be used to measure tension force and compression force 50kg,100kg,200kg,500kg and 1000kg, its Non-linearity ≤0.2%F.S., its Creep(30min),Hysteresis and Repeatability all ≤0.1%F.S..
| Model Number: | BHA | Place of Origin: | Zhejiang, China |
| Brand Name: | santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 5t,6t,7.5t,8t,10t,12t,18t,20t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.05%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ulitimate Overload: | 200%F.S |
10-1000N Stainless Steel S Beam Load Cell FA302 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA302 can be used to measure load ranges from 10N,20N,50N,100N,200N,500N up to 1000N capacity, its Cable size is ⌀2x3000mm, its Weight is 0.1kg and Material is Stainless steel, its range of Input impedance and Output impedance are both 650/350±5Ω.
1,3,5,10,30,50,100,300,500,1000,3000,5000,10000,30000,50000,100000,300000N Or Customized Tension Compression Force Sensor FA904AB belongs to FA904 which belongs to Tension Compression Force Sensor category of our brand FIBOS FA9-Series, FA904AB can be used to measure tension force ranges from 1N,3N,5N,10N,30N,50N,100N,300N,500N,1000N,3000N,5000N,10000N,30000N,50000N,100000N up to 300000N or customized capacity.
50kg The Creep ≤0.05%F.S. Stainless Steel Spoke Type Load Cell FA401 belongs to FA411 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA401 can be used to measure load 50kg capacity, its Creep(30min) ≤0.05%F.S., its Non-linearity and Repeatability both ≤0.05%F.S., and its Hysteresis ≤0.05%F.S..
| Model Number: | BHG | Place of Origin: | Zhejiang, China |
| Brand Name: | Santwell | Usage: | PRESSURE SENSOR |
| Theory: | Resistance Sensor | Output: | Analog SENSOR |
| Rated Load: | 3t,5t,10t | Sensitivity: | 2.0000±0.002mV/V |
| Total Error: | ±0.3%F.S | Creep(30minutes): | ±0.02%F.S |
| Recommended Excitation Voltage: | 5V~12V(AC or DC) | Maximum Excitation Voltage: | 15V(AC or DC) |
| Zero Balance: | ±1%F.S | Insulation Impedance: | ≥5000MΩ |
| Safe Overload: | 150%F.S | Ultimate Overload: | 200%F.S |
100,300,500,1000,3000,5000,10000kg Or Customized S Beam Load Cell FA302C is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302C can be used to measure load ranges from 100kg up to 10000kg or customized capacity, its Weight is 0.75kg or can be customized.
Diameter 13mm 50-1000N Miniature Tension Compression Force Sensor FA201A is a model of our brand FIBOS FA2-Series, Tension Compression Force Sensor FA201A belongs to FA201, it can be used to measure tension and compression force 50N,100N,200N,500N,1000N and 2000N or customized capacity, its Zero Balance range is ±0.2mV/V.
