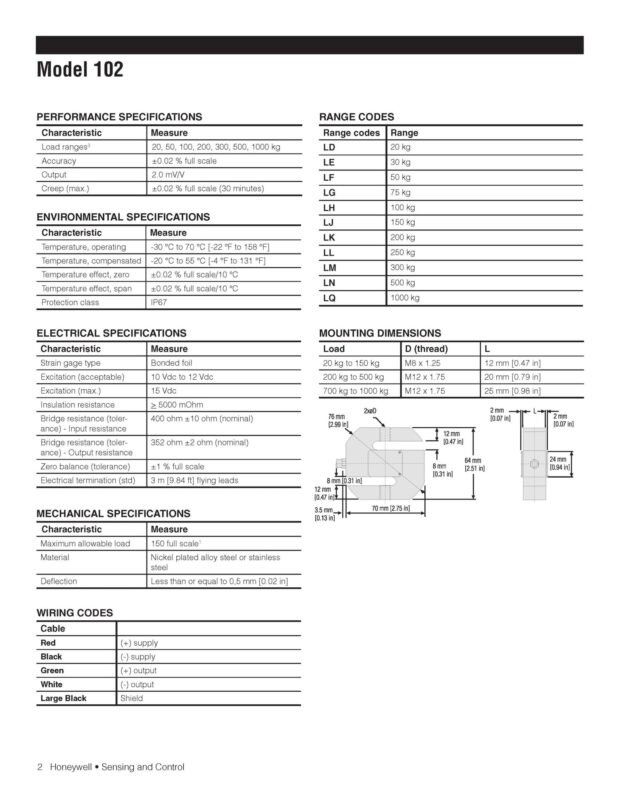

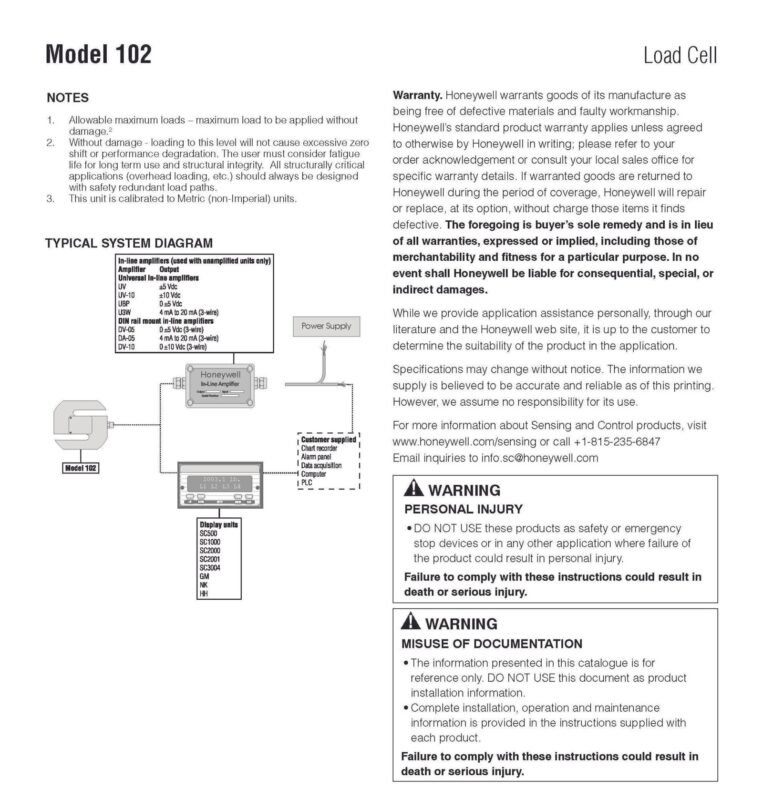

Honeywell Model 102 S-Type Load Cell
Honeywell / Model 102 / S-Type Load Cell
The Model 102 load cells combines both a compact form and high precision to offer a superior tension force transducer. The one-piece S-shaped design achieves a maximum non-linearity of 0.02 % full scale for load ranges from 20 kg to 1000 kg. Additional features include minimal temperature effects on zero and span of 0.002 %/°C and 0.002 %/°C, respectively.
합금강으로 제작되었으며, 접착제로 밀봉되고 니켈 도금 처리된 이 모델은 방수 및 내식성이 뛰어나며, IP66 등급의 보호 성능을 갖추고 있습니다.
- Capacity: 0-200kg
- Sensitivity: 1.0~2.0 mV/V
- Non-linearity 0.1% F.S.
- Repeatability 0.05% F.S.
- Material Stainless steel with nickel plated
- Bi-directional tension and compression
- Can be customized
10-500N Stainless Steel Tension Compression Force Sensor FA306 is a model of our brand FIBOS FA3-Series, Tension Compression Force Sensor FA306 can be used to measure tension and compression force 10N,20N,50N,100N,150N,200N and 500N capacity, its Rated output range is 2.0±10%mV/V, and its Zero Balance range is ±2%F.S..
SC512는 인장 및 압축 하중을 모두 받는 어플리케이션에 적합하도록 설계된 S형 로드셀입니다. 합금강 또는 스테인리스강으로 제작된 SC516은 상부 및 하부 암에 정렬된 장착 구멍이 있어 매달린 어플리케이션에 부착할 수 있습니다. 또한, 압축 하중은 로드셀 본체에 직접 가할 수 있어 설치가 간편합니다.
The SC512 is a S-type load cell designed for applications that involve both tension and compression. Manufactured from alloy steel or stainless steel, the SC516 has an upper and a lower arm with aligned mounting holes for attachment in suspended applications. Meanwhile, compressive loads can be applied directly to the body of the load cell for easy installation.
- Capacity: 0-50kg
- Sensitivity: 1.0~2.0 mV/V
- Non-linearity 0.03% F.S.
- Repeatability 0.03% F.S.
- Material Alloy steel with nickel plated
- Bi-directional tension and compression
- Can be customized
5,10,20,50,100,200N Or Customized S type Load Cell FA301 is a model of our brand FIBOS FA3-Series, S type Load Cell FA301 can be used to measure force 5N,10N,20N,50N,100N,200N or customized capacity, its material we use Stainless steel, we can also customized material.
- Capacity: 0-1.5t
- Sensitivity: 2.0 mV/V
- Non-linearity 0.031% F.S.
- Repeatability 0.03% F.S.
- Material Alloy steel with nickel plated
- Bi-directional tension and compression
- Can be customized
- Capacity: 0-200kg
- Sensitivity: 1.0~2.0 mV/V
- Non-linearity 0.05% F.S.
- Repeatability 0.03% F.S.
- Material Stainless steel with nickel plated
- Bi-directional tension and compression
- Can be customized
5-200N Stainless Steel S Beam Load Cell FA301 is a model of our brand FIBOS FA3-Series, it belongs to S Beam Load Cell category, FA301 can be used to measure load 5N,10N,20N,50N,100N and 200N capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S., its Cable size is ⌀2x3000mm.
- Capacity: 0-7T
- Sensitivity: 2.0 mV/V
- Non-linearrity 0.03% F.S.
- Repeatability 0.03% F.S.
- Material Alloy steel with nickel plated
- Bi-directional tension and compression
- Can be customized
