Haibo Sensor Dynamic Rotary Torque Sensor HBWTQ2205
Key Features:
High precision, excellent stability, and strong EMI resistance
Digital signal output
Compact, lightweight design for easy installation
Non-contact sensing—no slip rings or wear-prone components

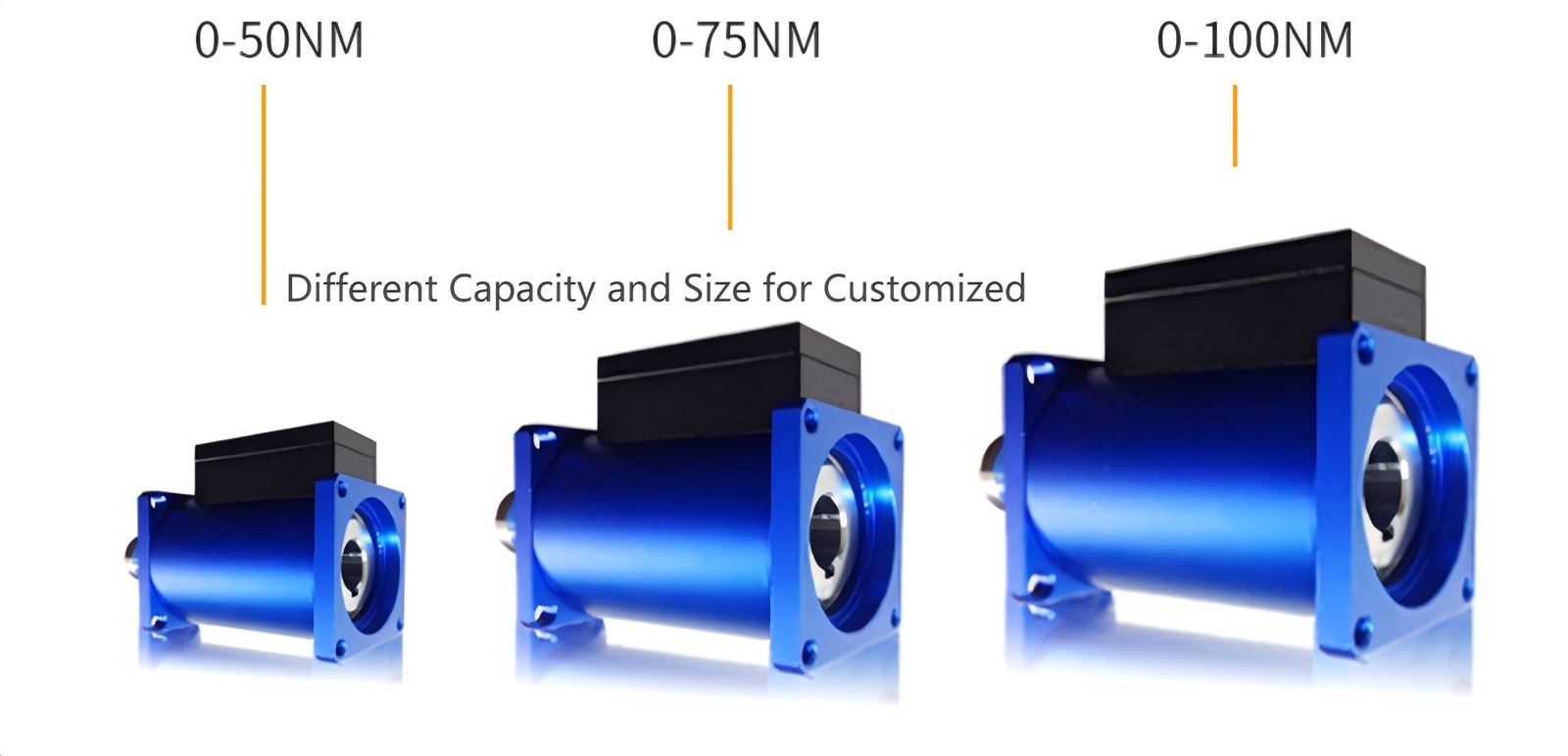

Bidirectional torque measurement (±100 range options)
Supports static, rotational, and dynamic torque signals
Zero-adjustment-free operation for quick setup
Capable of long-term high-speed operation
Usage & Applications:
Torque wrenches
Screwdrivers, and pneumatic tools
Robotic arm force feedback
torque of rotating machinery
engines, drive shafts
Wind turbines, etc.

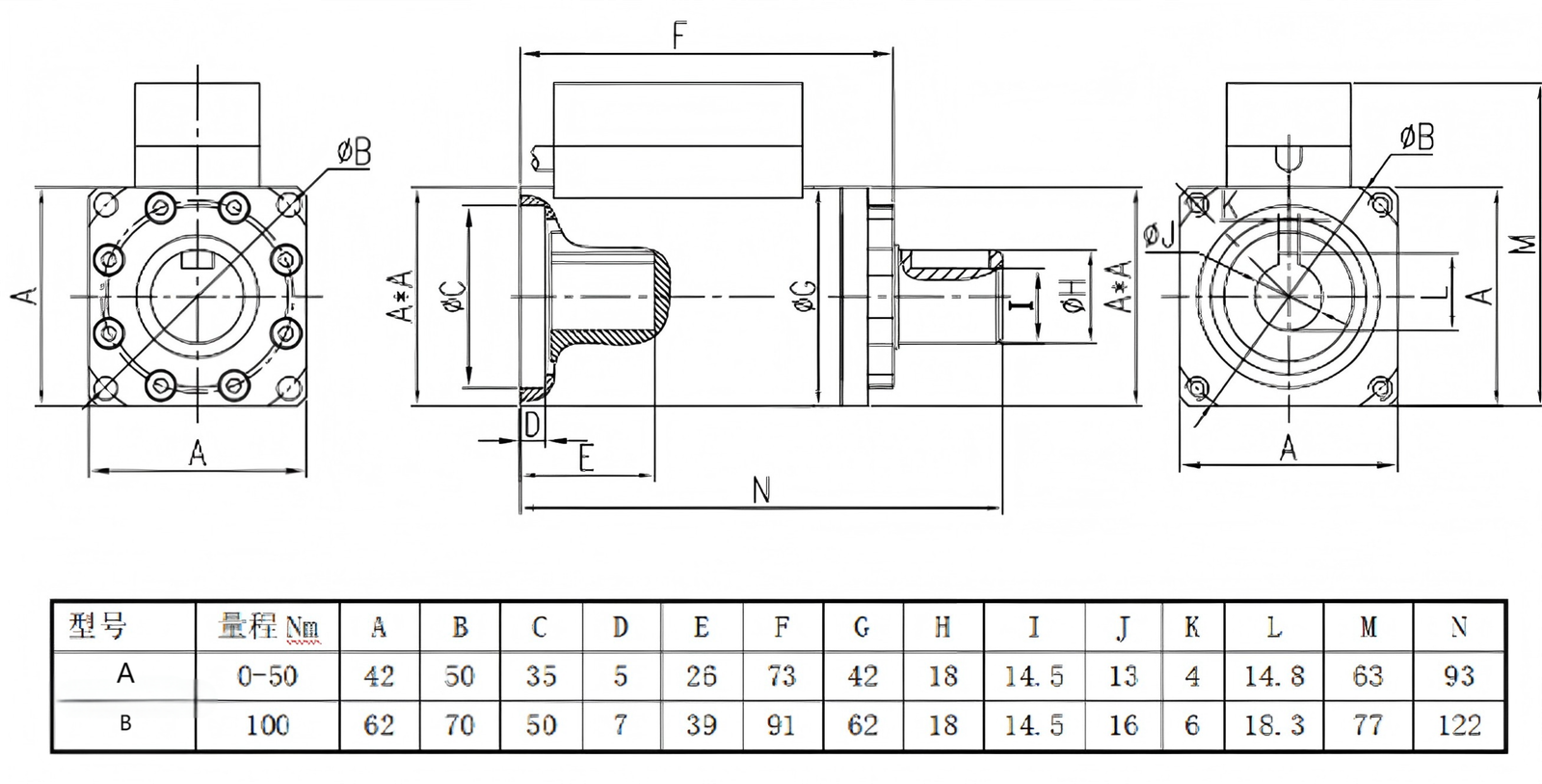

Dimension Size:
HAIBOSENSOR HBWQ2050A/B Non-Contact Torque Sensor Specifications:
| Parameter | Specification |
| Measurement Range | 0-5/10/20/30/50/100 (selectable) |
| Speed Range | 0-4,000 RPM |
| Speed Output | Pulse/rev, 4-20mA, 0-10V |
| Power Supply | 5-15VDC |
| Accuracy | |
| – Nonlinearity | ≤0.5% F.S. |
| – Hysteresis | ≤0.5% F.S. |
| – Repeatability | ≤0.2% F.S. |
| Temperature Characteristics | |
| – Zero Drift | ≤0.1% F.S./10°C |
| – Sensitivity Drift | ≤0.03% F.S./10°C |
| Mechanical | |
| – Construction Material | High-strength alloy steel |
| – Overload Capacity | 150% (safe), 200% (ultimate) |
| Environmental | |
| – Operating Temperature | -20°C to +60°C |
| – Humidity Range | 0-90% RH (non-condensing) |
| Electrical | |
| – Bridge Impedance | 350Ω/750Ω ±10% |
| – Insulation Resistance | ≥5,000MΩ @100VDC |
| – Response Frequency | 10 kHz |
| Standard Features | |
| – Cable Length | 3 meters (φ5mm) |
| – Cable Strength | 10kg tension rating |
| – Long-term Stability | ≤0.3%/year |
| Special Feature | Integrated digital torque/RPM display |
| Options | Custom ranges/outputs available |
