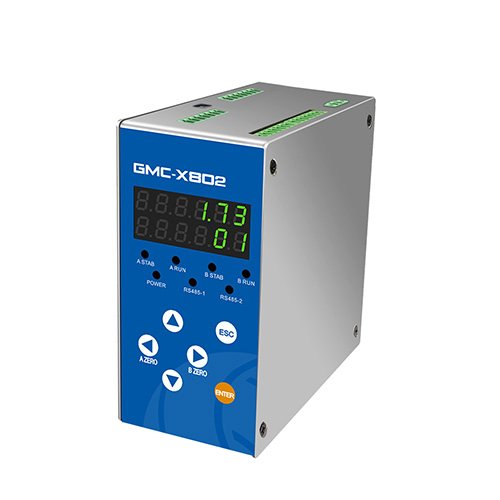

GMC-X802
Features
Key Features
-
Space-Saving DIN Rail Mount
-
Built-in Display and Buttons for simple operation
-
Dual Weighing System (CD): Up to 3 controllers can interconnect 6 packing scales without a PLC
-
McgsPro Program Sample Provided (supports 1/2/4/6 scale configurations)
-
Supports Various Feeding Mechanisms: Vibratory feeders, pneumatic, stepping motors, etc.
-
Supports Multiple Discharge Methods: Pneumatic, standard motor, stepping motor, etc.
-
Multi-Function Control: Batch management, back clamp/release, material level control, over/under alarm, low-level feeding, etc.
-
Self-Recognizing Analog Calibration and Lead Adaptation for reduced debugging time and intelligent control
Hardware Interface
Standard Configuration
-
RS485 ×2: Connect to PC, PLC, printer, label printer, remote display, etc.
-
USB Port: Firmware updates, parameter backup/restore/export
-
I/O Ports: 10 inputs / 20 outputs (configurable for feeding, discharge, start/stop, etc.)
Load Cell Interface
-
C2: 1 channel
-
CD: 2 channels (6-wire, up to 8 × 350 Ω load cells per channel)
Optional Features
-
Network Port: Single or dual, supports Modbus TCP
-
Analog Output:
-
C2: 1–2 channels
-
CD: 2–4 channels
-
-
Output Range: 0–5 V / 0–10 V / 4–20 mA
Applications
Ideal for precision packing systems based on vibratory feeders, handling powders or small granular materials such as sugar, salt, rice, seeds, detergent, coffee, spices, and powdered milk.
