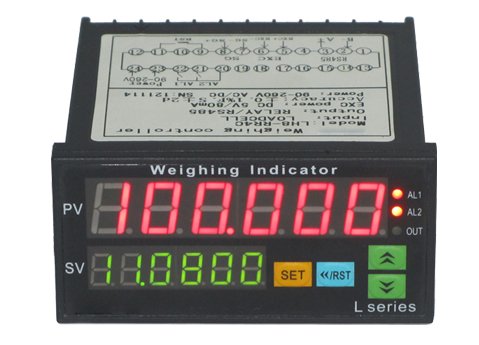

GSI312-1 Digital Multi-function 6 Digits
GSI312-1 can be connected with load cell or other force transducer directly, with fast response, high precision, stable measurement, tare weight, display correction and other adjustment functions. It has 6-channel switch control for start/stop, fast forward\slow into and a variety of control. It can be used for quantitative, ingredient, balance, weighbridge, cement, food packaging, chemical ingredients and other industries automatically control. Special control types can be customized.
The housing of GSI312-1 can be reached the IP65 standard.
- Input: It can be directly connected with one or four weighing (measuring force) sensors, or other signals such as 0-70mV 4-20mA 0-10V.
- Analog output: isolated current transmission output 4-20mA or 0-10V, the output range can be set.
Digital output: 6 channels can be arbitrarily set for various control outputs at most, used for various ingredients and force control, with fully functional.
- Externally isolated sensor power supply: + 12 / 40mA or 150mA or two-wire 24V / 30mAh.
- Accuracy: five digits 0.1% or six digits 0.05%, floating decimal settings, accurate measurement, stable.
- Wide power supply: conventional: 80-265V AC / DC. Custom-made: 12-30V AC / DC.
It can be equipped with standard RS232 / 485 communication MODBUS RTU protocol, can directly connected to a computer, PLC or other equipment.
