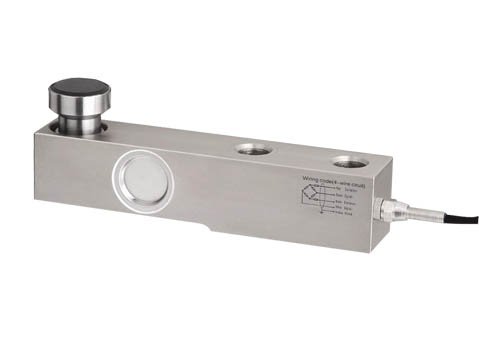

GSB200 Floor scales Shear Beam Load Cell
What is specifications of GSB200 Load cell?
| Specification: | |
| Range : 500kg~20000kg | |
| Accuracy : C2 & C3 | Temp. effect on span (%F.S/10℃): ±0.017& ±0.011 |
| Comprehensive error (%F.S) : ±0.03 & ±0.02 | Temp. effect on zero (%F.S/10℃): ±0.023 & ±0.015 |
| Rated output (mv/v) : 3.0±0.003 | Compensated temp. range (℃ ) : -10~+40 |
| Creep (%F.S/30min) : ±0.024 & ±0.016 | Use temp. range (℃ ) : -20~+55 |
| Zero balance (%F.S) : ±1.0 | Excitation voltage (V) : 9~12(DC) |
| Input resistance (Ω) : 350±5 | Safe overload (%F.S) : 150 |
| Output resistance (Ω) : 350±3 | Ultimate overload (%F.S) : 200 |
| Insulation resistance (MΩ): ≥5000 (100VDC) | Defend grade : IP66 |

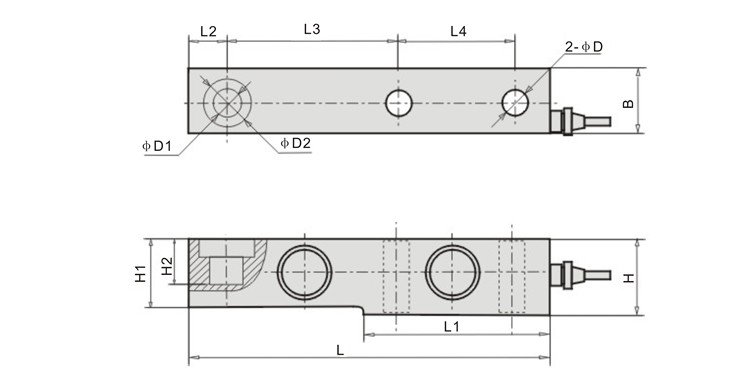

What is dimension of GSB200 Load cell?
