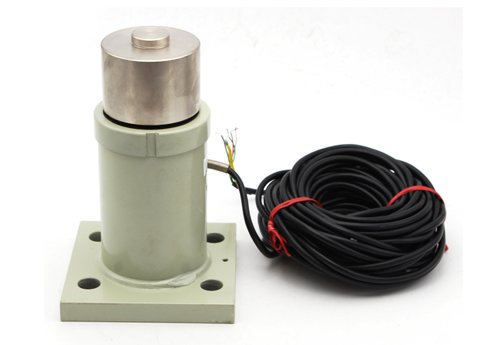

GCS702 Compression Canister Column Type Weighing Scale Load Cell

• Capacity: 0-100T
• Sensitivity: 1.5±0.05mV/V
• Non-linearity 0.1% F.S.
• Repeatability 0.05% F.S.
• Material Aluminum alloy with nickel plated
• Bi-directional tension and compression
• Can be customized

1.Made of stainless steel;

2. Suitable for proportioning control system, detecting equipment and other weighing devices.

Buy a tension and compression column load cell online with optional capacities ranging from 1 kg, 5 kg, 10 kg, 20 kg, 50 kg, 100 kg up to 2 tons. This miniature column-type load cell accurately measures both tensile and compressive forces, ideal for use in testing machines, industrial automation, process control, and weighing systems.

SC4810은 대용량 압축 어플리케이션의 계량에 이상적인 캐니스터형 컬럼 로드셀입니다. 10톤부터 300톤까지 다양한 용량으로 제공됩니다. IP68 등급의 견고한 내구성을 갖추고 있어 열악한 환경에서도 사용 가능합니다.

The SC4810 is canister style column load cell ideal for weighing in large compressive applications. It is available in a wide variety of capacities from 10 Tonnes to 300 Tonnes. It is rugged and rated at IP68 for harsh environments.

KWT1C80/130 series is a kind of column structure load cell, which both sides designed with double flanges to locating the position of mounting. The middle of load cell adopts through-hole design to meet the special requirements in the use process. This series has two size, the diameter of KWT1C80 is 80mm, the range is 25kN to 50kN, the KWT1C130 is 130mm and its range is 100kN. We also support customization on size and range as your needs.

1.Column Type, hermetically sealed structure, argon-arc welded, good self-centering, fast dynamic response, strong anti-overload capability.

2.Simple to install, easy to use.

3.Suitable for electronic truck scales, railroad scale and big capacity hopper scale, etc.

KWT1D52H is a big-range compact-design column load cell. It is made of 17-4PH material, and its rated range is 200kN. The sensor has a rasied surface radius to reduce the possibility of off-center load.

1.Made of stainless steel.

2.Laser welding sealing treatment, can be anti-oil, waterproof, anti-corrosive gases and media.

SC4818은 10톤에서 40톤까지의 압축 하중을 측정하도록 설계된 고하중 캐니스터형 로드셀입니다. 합금강 또는 스테인리스강으로 제작되어 혹독한 측정 환경에 적합하며 IP68 등급을 받았습니다.

The SC4818 is a heavy duty canister type load cell designed to measure compressive load in ranges from 10 Tonne to 40 Tonne. Built with either alloy steel or stainless steel it is suite for harsh measurement environments and is rated with an IP68 rating.

This product is simple in structure design and low in cost. The design of its sealing diaphragm changes the complicated process of matching the shell in the past, overcomes the defect that the shell of the traditional sensor is easy to be damaged due to deformation, and greatly improves the sealing performance of the sensor. Compared with the traditional column sensor, the sensor with this structure has higher accuracy in linearity, lateral resistance, torsion resistance and azimuth error.
This small size is suitable for the production and testing of 3C digital products. Traditional column sensors are widely used in various electronic weighing equipment such as track scales, hopper scales and platform scales.

Column load cell with flange type body combined is an excellent performance weight measurement device for 5 ton/10 ton to 30 ton load measurement optional. It is made of high-strength alloy steel, which is robust and ensures stable operation in harsh environments.
