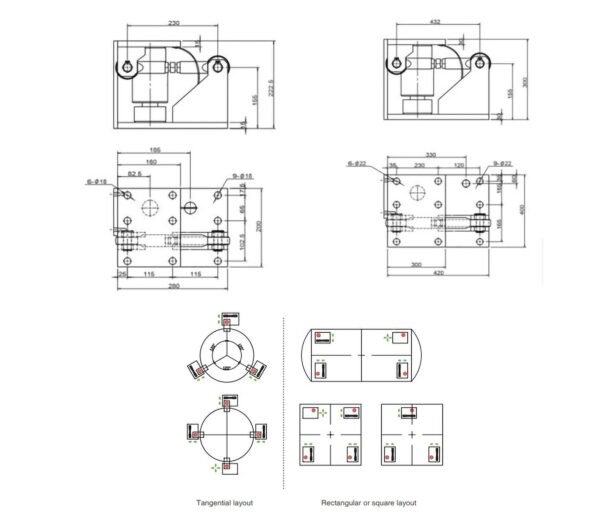

FA806 static load weighing module is based on the FA473 column load cell, with a range from 10t to 50t. It is characterized by its compact construction, which does not require the installation of additional accessories; the self-stabilizing load cell bearing head allows accurate and repeatable metering; quick and easy installation, saving installation and downtime for maintenance. The static load weighing module can be easily mounted on containers of various shapes and can be easily loaded, dosed, or mixed in this container.
FA806
| Name | Load Cell Kit | Rated Load | 10, 20, 30, 40, 50t |
|---|---|---|---|
| Rated Output | 2.0±0.0050mV/V | Safe Overload | 150%R.C. |
| Ultimate Overload | 300%R.C. | Protection Class | IP68 |
| Item | Unit | Specification |
|---|---|---|
| Name | – | Load Cell Kit |
| Rated Load | t | 10, 20, 30, 40, 50 |
| Rated Output | mV/V | 2.0 ±0.0050 |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 300 |
| Protection Class | – | IP68 |
본 게시물은 케이센서스에 저작권이 있습니다. 무단으로 전제 및 도용 시 법적으로 처벌 될 수 있습니다. Copyright 2025. 케이센서스(KSENSORS) Co. All rights reserved. |
합금강으로 제작되었으며, 접착제로 밀봉되고 니켈 도금 처리된 이 모델은 방수 기능과 내식성을 갖추고 있으며, IP66 등급의 보호 성능을 제공합니다.
0-200N Raw Sensitivity 0.6~0.8 Stainless Steel Column Type Load Cell FA906 is a model of our brand FIBOS FA9-Series, Column Type Load Cell FA906 can be used to measure load ranges up to 200N capacity, its Raw sensitivity range is 0.6~0.8, its Rated output range is 4~20mA, and its Zero Balance range is ±1%mV/V.
20kg The Creep ≤0.05%F.S. Stainless Steel Spoke Type Load Cell FA122B belongs to FA122 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA122B can be used to measure load 20kg capacity, its Creep(30min) ≤0.05%F.S., its Non-linearity and Repeatability both ≤0.1%F.S., and its Hysteresis ≤0.2%F.S..
500kN~20000kN Or Customized Column Type Load Cell FA408-D1 is a model of Column Type Load Cell, it belongs to model FA408 in our brand FIBOS FA4-Series, FA408-D1 could be used to measure load from 500kN to 20000kN or customized capacity, its Non-linearity is 0.05%F.S. or customized, and its Repeatability is 0.02%F.S. or customized, its Cable size is ⌀3x5000mm or customized length.
50kN Or Customized Capacity 0.02%F.S. Or Customized Precision Column Type Load Cell FA120M is a model of Column Type Load Cell, it is designed to measure loads in compression with the 50kN or customized lighter or heavier capacity, it could be used stainless steel or others as its material, its non-linearity is 0.02%F.S. or customized.
50,100,500,1000,5000kg Or Customized Tension Compression Force Sensor FA130C belongs to FA130 which is in Tension Compression Force Sensor category of our brand FIBOS FA1-Series. FA130C can be used to measure tension&compression force ranges from 50kg,100kg,500kg,1000kg and 5000kg or customized capacity.
50,100,150,200t or customized Spoke Type Load Cell FA120F is a model of our brand FIBOS FA1-Series, it belongs to FA120 which belongs to Spoke Type Load Cell category. FA120F can be used to measure load 50t,100t,150t and 200t or customized capacity, its Creep(30min),Non-linearity and Hysteresis all ≤0.08%F.S. or can be customized, and its Repeatability ≤0.09%F.S. or also can be customized.
10000kN Or Customized Column Type Load Cell FA438 is one of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA438 can measure load from 500kN to 10000kN or customized capacity, its Non-linearity is 0.05%F.S. or customized, and its Repeatability is 0.02%F.S. or customized, it supports IP66 or customized.
5-200N Stainless Steel S Beam Load Cell FA301 is a model of our brand FIBOS FA3-Series, it belongs to S Beam Load Cell category, FA301 can be used to measure load 5N,10N,20N,50N,100N and 200N capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S., its Cable size is ⌀2x3000mm.
20,50,100,200,500kg Or Customized Spoke Type Load Cell FA119B is a model of our brand FIBOS FA1-Series, it belongs to FA119 which is in Spoke Type Load Cell category, FA119B can be used to measure load 20kg,50kg,100kg,200kg and 500kg or customized capacity, its Rated output range is 1.5±15%mV/V, its Cable size is ⌀1.2x3000mm or customized length.
25-500kg 0.75-10t Alloy Steel S Beam Load Cell FA307 is from S Beam Load Cell category of our brand FIBOS FA3-Series, FA307 can be used to measure load ranges from 25kg up to 500kg and ranges from 0.75t up to 10t capacity, its Non-linearity,Hysteresis and Repeatability all ≤0.03%F.S., its Creep(30min) ≤0.024%F.S..
3000N Or Customized Column Type Load Cell FA415 is a model of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA415 can measure 3000N or customized capacity, its Non-linearity and Repeatability both are 0.025%F.S. or customized, its cable size is ⌀4x2000mm or customized length, and its IP Class is IP65 or it also could be customized.
