Models
FA704C
Features
| Category(N) | Multi-axis Sensors | Capacity | X:50/100/200/500/1000/2000/5000; Y:50/100/200/500/1000/2000/5000; Z:50/100/200/500/1000/2000/5000. |
|---|---|---|---|
| Rated Output | ≈1.0mV/V | Material | Stainless Steel |

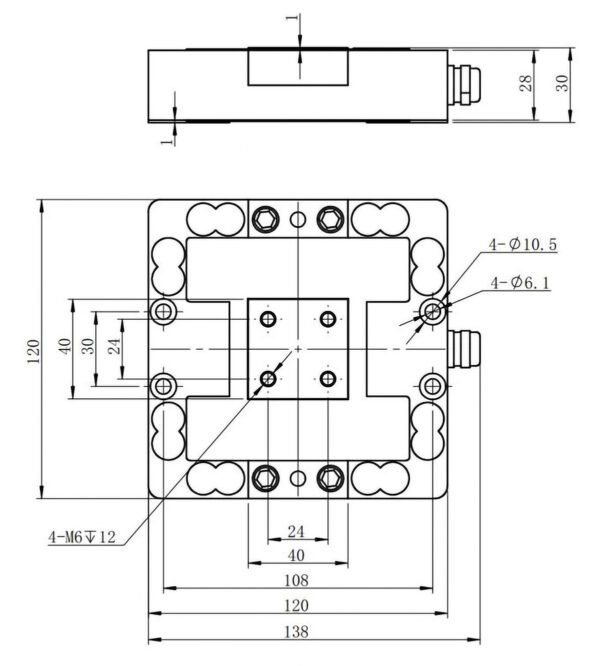

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Capacity (X/Y/Z) | N | 50 / 100 / 200 / 500 / 1000 / 2000 / 5000 |
| Rated output | mV/V | ≈ 1.0 |
| Zero balance | %F.S. | ±2 |
| Non-linearity | %F.S. | 0.1 |
| Hysteresis | %F.S. | 0.1 |
| Repeatability | %F.S. | 0.1 |
| Interference error | %F.S. | 0.3 |
| Temp. effect on output | %F.S./10℃ | 0.1 |
| Temp. effect on zero | %F.S./10℃ | 0.1 |
| Input impedance | Ω | 785 ± 20 |
| Output impedance | Ω | 700 ± 10 |
| Insulation resistance | MΩ/100VDC | ≥ 5000 |
| Recommended excitation | V | 5 ~ 12 |
| Maximum excitation | V | 15 |
| Compensated temp range | ℃ | -10 ~ 40 |
| Operating temp range | ℃ | -20 ~ 75 |
| Safe overload | %F.S. | 150 |
| Ultimate overload | %F.S. | 300 |
| Cable size | – | ⌀5 × 3000 mm |
