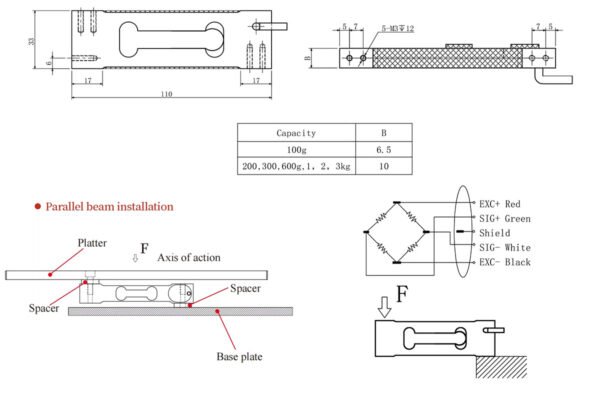

FIBOS / FA502 / Single Point Load Cell

This weigh module has a rugged and compact design and an accuracy, which makes it especially suitable for load and level monitoring in storage tanks. The sensing element consists of three sections. The two outer sections constitute supports and rest on the built-in block, which is secured to the base. On the middle section, which is the loadsensing part, there is a yoke to which the leg of the tank is secured. The sensor is efficiently locked so that it cannot twist in the built-in block.

FA806 static load weighing module is based on the FA473 column load cell, with a range from 10t to 50t. It is characterized by its compact construction, which does not require the installation of additional accessories; the self-stabilizing load cell bearing head allows accurate and repeatable metering; quick and easy installation, saving installation and downtime for maintenance. The static load weighing module can be easily mounted on containers of various shapes and can be easily loaded, dosed, or mixed in this container.

20kg The Creep ≤0.05%F.S. Stainless Steel Spoke Type Load Cell FA122B belongs to FA122 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA122B can be used to measure load 20kg capacity, its Creep(30min) ≤0.05%F.S., its Non-linearity and Repeatability both ≤0.1%F.S., and its Hysteresis ≤0.2%F.S..

This sensor is based on advanced alloy steel and features narrow space installation, high precision stability, and customization possibilities, making it suitable for a variety of industrial fields including automotive, medical, robotics, and automation.

5000N Or Customized Column Type Load Cell FA462 is a model of Column Type Load Cell, it can measure load 5000N or customized capacity, its Non-linearity and Repeatability are same 0.01%F.S. or customized, we could use Alloy Steel or other customized metallic material as its material.

25-500kg 0.75-10t Alloy Steel S Beam Load Cell FA307 is from S Beam Load Cell category of our brand FIBOS FA3-Series, FA307 can be used to measure load ranges from 25kg up to 500kg and ranges from 0.75t up to 10t capacity, its Non-linearity,Hysteresis and Repeatability all ≤0.03%F.S., its Creep(30min) ≤0.024%F.S..

50-1000N Stainless Steel Column Type Load Cell FA402 is a model of Column Type Load Cell, it belongs to our brand FA4-Series, FA402 can be used to measure load 50N, 100N, 200N, 500N and 1000N capacity, its Creep(30min), Non-linearity, Hysteresis and Repeatability all ≤0.05%F.S., its Cable size is ⌀3x3000mm, and its weight is 0.1kg.

500kN~20000kN Or Customized Column Type Load Cell FA408-D1 is a model of Column Type Load Cell, it belongs to model FA408 in our brand FIBOS FA4-Series, FA408-D1 could be used to measure load from 500kN to 20000kN or customized capacity, its Non-linearity is 0.05%F.S. or customized, and its Repeatability is 0.02%F.S. or customized, its Cable size is ⌀3x5000mm or customized length.

50,100,300,500kg Or Customized Spoke Type Load Cell FA129B is a model of our brand FIBOS FA1-Series, it belongs to FA129. Spoke Type Load Cell FA129B can be used to measure load 50kg,100kg,300kg and 500kg or customized capacity, its Creep(30min) and Non-linearity both ≤0.02%F.S. or can be customized, its Hysteresis and Repeatability both ≤0.018%F.S. or can also be customized.

50,100,200,500,800kg Or Customized Spoke Type Load Cell FA127D belongs to FA127 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA127D can be used to measure load 50kg,100kg,200kg,500kg and 800kg or customized capacity, its Creep(30min) ≤0.032%F.S. or can be customized, its Non-linearity and Repeatability both ≤0.035%F.S. or also can be customized, and its Hysteresis ≤0.038%F.S. or can also be customized.

10,20,50,100,200,500,1000N or customized S Beam Load Cell FA302L is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302L can be used to measure load 10N,20N,50N,100N,200N,500N and 1000N or customized capacity, its Cable size is ⌀4x1000mm or customized length.

50kN~3000kN IP67 Alloy Steel Or Stainless Steel Column Type Load Cell Weighing Sensor FA410 is a model of Column Type Load Cell, it is designed to measure load ranges from 50kN up to 3000kN. The material Alloy Steel or Stainless Steel can be customized, its cable size is 5.4x6000mm, it supports IP67.
