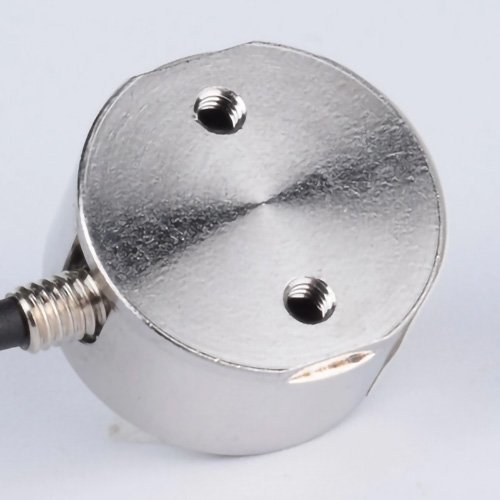

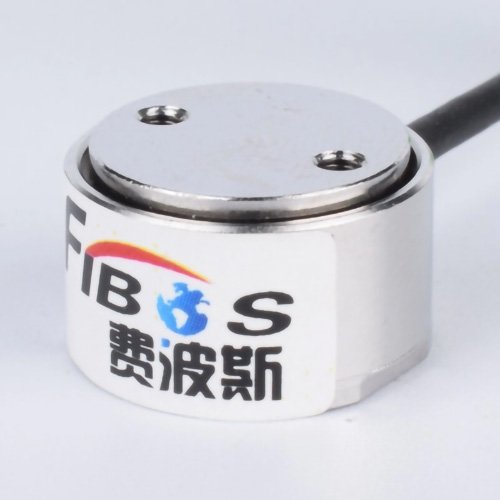

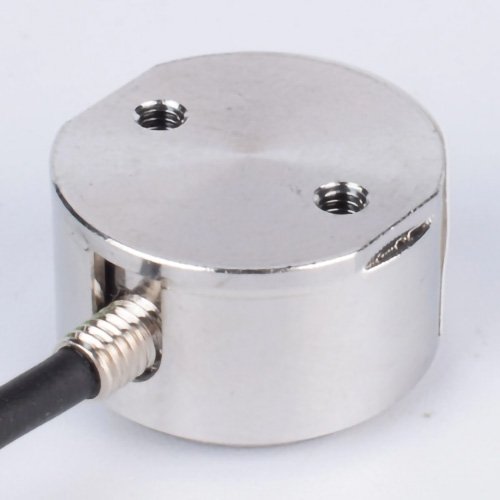

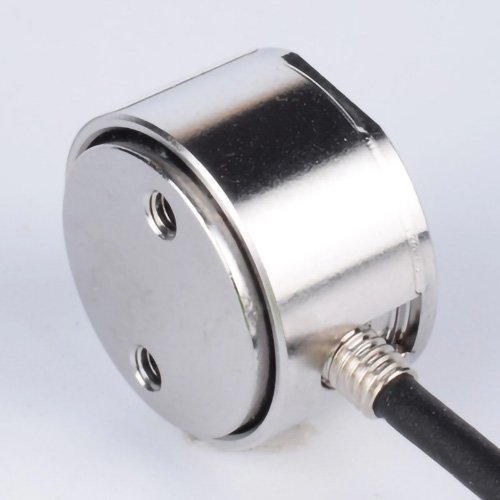

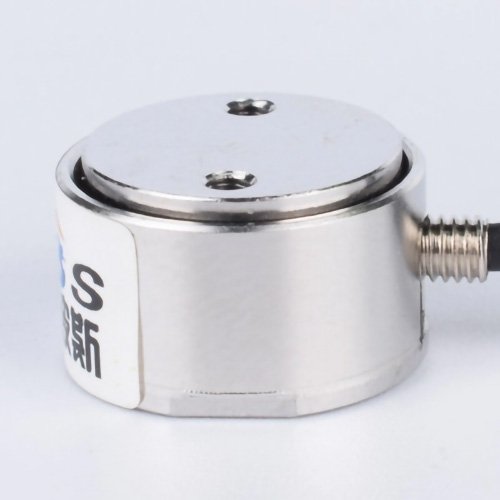

FIBOS / FA402B / 컬럼형 로드셀

0.1-20kN Stainless Steel Column Type Load Cell FA406 is a model of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA406 could be used to measure load 0.1kN, 0.2kN, 0.5kN, 1kN, 2kN, 5kN, 10kN and 20kN capacity, its Creep(30min), Non-linearity and Hysteresis all ≤0.1%F.S., its Repeatability ≤0.05%F.S., its weight is 0.3kg.

50kN Or Customized Capacity 0.02%F.S. Or Customized Precision Column Type Load Cell FA120M is a model of Column Type Load Cell, it is designed to measure loads in compression with the 50kN or customized lighter or heavier capacity, it could be used stainless steel or others as its material, its non-linearity is 0.02%F.S. or customized.

5,10,20,50,1000kN Or Customized Column Type Load Cell FA407B is a model of Column Type Load Cell, it belongs to FA407 in our brand FA4-Series, FA407B is used to measure load 5kN, 10kN, 20kN, 50kN and 1000kN or customized capacity, its Cable size is ⌀6x5000mm or customized length, its weight is 2kg or customized.

This sensor is made of high-grade alloy steel, is stable, can be installed in tight spaces, and can be customized. It is suitable for various industrial automation and precision measurement applications.

50-500kg 1t Alloy Steel Aluminum Alloy Spoke Type Load Cell FA120A is a model of our brand FIBOS FA1-Series, it belongs to FA120 which is in Spoke Type Load Cell category, FA120A can be used to measure load 50kg,100kg,200kg,500kg and 1t capacity, its Creep(30min) and Repeatability both ≤0.03%F.S., and its Non-linearity and Hysteresis both ≤0.05%F.S..

5-200N Stainless Steel S Beam Load Cell FA301 is a model of our brand FIBOS FA3-Series, it belongs to S Beam Load Cell category, FA301 can be used to measure load 5N,10N,20N,50N,100N and 200N capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S., its Cable size is ⌀2x3000mm.

10,20,50,100,200,500,1000N or customized S Beam Load Cell FA302L is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302L can be used to measure load 10N,20N,50N,100N,200N,500N and 1000N or customized capacity, its Cable size is ⌀4x1000mm or customized length.

0-200N Raw Sensitivity 0.6~0.8 Stainless Steel Column Type Load Cell FA906 is a model of our brand FIBOS FA9-Series, Column Type Load Cell FA906 can be used to measure load ranges up to 200N capacity, its Raw sensitivity range is 0.6~0.8, its Rated output range is 4~20mA, and its Zero Balance range is ±1%mV/V.

5000N Or Customized Column Type Load Cell FA462 is a model of Column Type Load Cell, it can measure load 5000N or customized capacity, its Non-linearity and Repeatability are same 0.01%F.S. or customized, we could use Alloy Steel or other customized metallic material as its material.

50kg 100kg 200kg 500kg ≤0.1%F.S. Stainless Steel Spoke Type Load Cell FA122C is a model of our brand FIBOS FA1-Series, Spoke Type Load Cell FA122C can be used to measure load ranges from 50kg,100kg,200kg up to 500kg capacity, its Cable size is ⌀4x3m and its material is Stainless steel, its Rated output range is 1.5~2.0mV/V.

50,100,300,500kg Or Customized Spoke Type Load Cell FA129B is a model of our brand FIBOS FA1-Series, it belongs to FA129. Spoke Type Load Cell FA129B can be used to measure load 50kg,100kg,300kg and 500kg or customized capacity, its Creep(30min) and Non-linearity both ≤0.02%F.S. or can be customized, its Hysteresis and Repeatability both ≤0.018%F.S. or can also be customized.

FA806 static load weighing module is based on the FA473 column load cell, with a range from 10t to 50t. It is characterized by its compact construction, which does not require the installation of additional accessories; the self-stabilizing load cell bearing head allows accurate and repeatable metering; quick and easy installation, saving installation and downtime for maintenance. The static load weighing module can be easily mounted on containers of various shapes and can be easily loaded, dosed, or mixed in this container.
