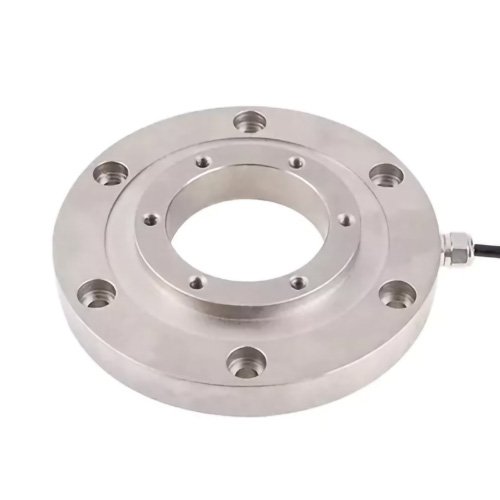

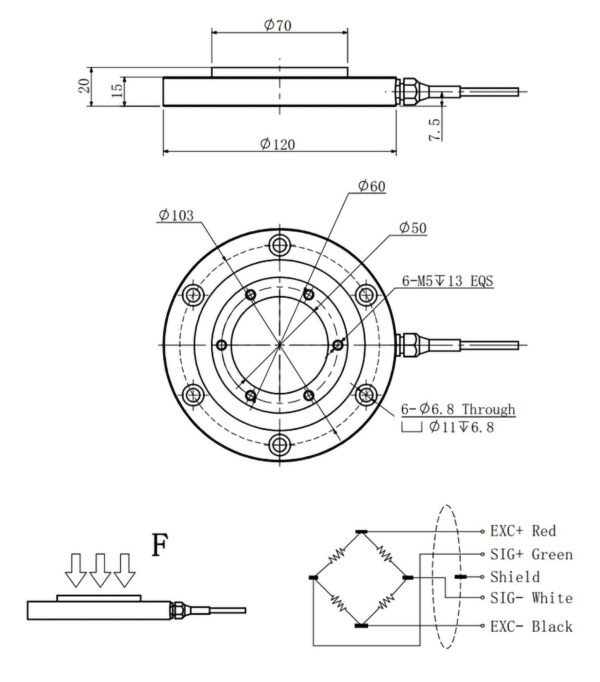

FIBOS / FA128 / 관통형 로드셀

This sensor is based on advanced alloy steel and features narrow space installation, high precision stability, and customization possibilities, making it suitable for a variety of industrial fields including automotive, medical, robotics, and automation.

0-200N Raw Sensitivity 0.6~0.8 Stainless Steel Column Type Load Cell FA906 is a model of our brand FIBOS FA9-Series, Column Type Load Cell FA906 can be used to measure load ranges up to 200N capacity, its Raw sensitivity range is 0.6~0.8, its Rated output range is 4~20mA, and its Zero Balance range is ±1%mV/V.

This weigh module has a rugged and compact design and an accuracy, which makes it especially suitable for load and level monitoring in storage tanks. The sensing element consists of three sections. The two outer sections constitute supports and rest on the built-in block, which is secured to the base. On the middle section, which is the loadsensing part, there is a yoke to which the leg of the tank is secured. The sensor is efficiently locked so that it cannot twist in the built-in block.

500kN~20000kN Or Customized Column Type Load Cell FA408-D1 is a model of Column Type Load Cell, it belongs to model FA408 in our brand FIBOS FA4-Series, FA408-D1 could be used to measure load from 500kN to 20000kN or customized capacity, its Non-linearity is 0.05%F.S. or customized, and its Repeatability is 0.02%F.S. or customized, its Cable size is ⌀3x5000mm or customized length.

50kN~3000kN IP67 Alloy Steel Or Stainless Steel Column Type Load Cell Weighing Sensor FA410 is a model of Column Type Load Cell, it is designed to measure load ranges from 50kN up to 3000kN. The material Alloy Steel or Stainless Steel can be customized, its cable size is 5.4x6000mm, it supports IP67.

100,300,500,1000,3000,5000,10000kg Or Customized S Beam Load Cell FA302C is a model belongs to FA302 which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA302C can be used to measure load ranges from 100kg up to 10000kg or customized capacity, its Weight is 0.75kg or can be customized.

10-1000N Stainless Steel S Beam Load Cell FA302 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA302 can be used to measure load ranges from 10N,20N,50N,100N,200N,500N up to 1000N capacity, its Cable size is ⌀2x3000mm, its Weight is 0.1kg and Material is Stainless steel, its range of Input impedance and Output impedance are both 650/350±5Ω.

5,10,20,50,1000kN Or Customized Column Type Load Cell FA407B is a model of Column Type Load Cell, it belongs to FA407 in our brand FA4-Series, FA407B is used to measure load 5kN, 10kN, 20kN, 50kN and 1000kN or customized capacity, its Cable size is ⌀6x5000mm or customized length, its weight is 2kg or customized.

50,100,300,500kg Or Customized Spoke Type Load Cell FA129B is a model of our brand FIBOS FA1-Series, it belongs to FA129. Spoke Type Load Cell FA129B can be used to measure load 50kg,100kg,300kg and 500kg or customized capacity, its Creep(30min) and Non-linearity both ≤0.02%F.S. or can be customized, its Hysteresis and Repeatability both ≤0.018%F.S. or can also be customized.

50-500kg 1t Alloy Steel Aluminum Alloy Spoke Type Load Cell FA120A is a model of our brand FIBOS FA1-Series, it belongs to FA120 which is in Spoke Type Load Cell category, FA120A can be used to measure load 50kg,100kg,200kg,500kg and 1t capacity, its Creep(30min) and Repeatability both ≤0.03%F.S., and its Non-linearity and Hysteresis both ≤0.05%F.S..

3000N Or Customized Column Type Load Cell FA415 is a model of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA415 can measure 3000N or customized capacity, its Non-linearity and Repeatability both are 0.025%F.S. or customized, its cable size is ⌀4x2000mm or customized length, and its IP Class is IP65 or it also could be customized.

20kg The Creep ≤0.05%F.S. Stainless Steel Spoke Type Load Cell FA122B belongs to FA122 which is in Spoke Type Load Cell category of our brand FIBOS FA1-Series, Spoke Type Load Cell FA122B can be used to measure load 20kg capacity, its Creep(30min) ≤0.05%F.S., its Non-linearity and Repeatability both ≤0.1%F.S., and its Hysteresis ≤0.2%F.S..
