Models
FA08
Features
| Product Name | Load Cell Amplifier | Division Value | 1,2,5,10,20,50 |
|---|---|---|---|
| Readability | 900000 | A/D Conversion Speed | ≤3200 Times/sec |
| Nonlinear Error | ≤0.002%F.S. | Humidity Range | ≤90%RH(no Condensation) |

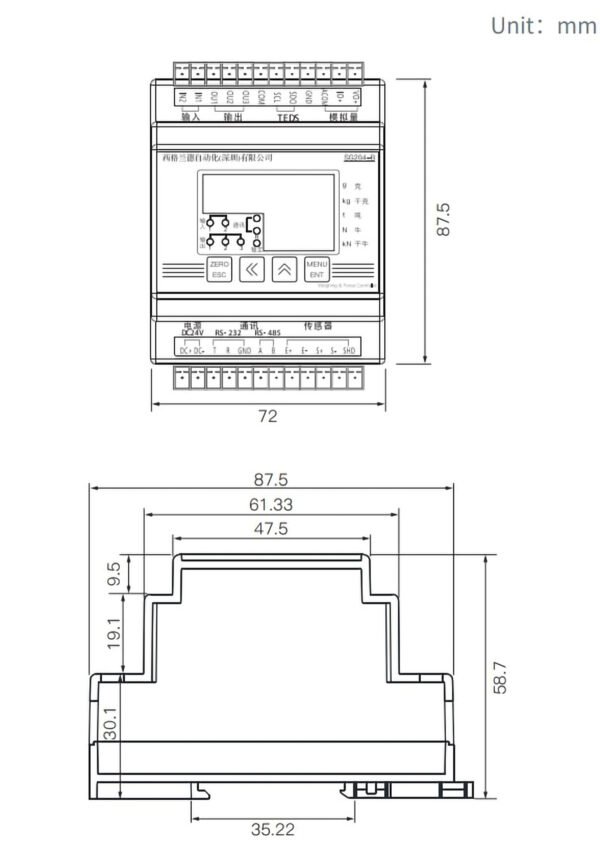

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | Load Cell Amplifier |
| Display | – | Dual-row LED display |
| Maximum scale display range | – | 999999 |
| Division value | – | 1, 2, 5, 10, 20, 50 |
| Readability | – | 900000 |
| A/D Conversion speed | Times/sec | ≤3200 |
| Accept sensor range | mV, mV/V | -30 mV ~ +30 mV (equivalent to -6 mV/V ~ +6 mV/V) |
| Input load | – | Up to 4 units of 350 Ω sensors |
| Analog output specification | V / mA | ±10 V / 4~20 mA (parameters optional) |
| Communication output | – | RS232, RS485 (parameters optional) |
| Digital output (I/O) | – | Relay / Transistor (hardware optional) |
| Temp. effect on output | ppm/℃ | ≤10 ppm / ℃ |
| Temp. effect on zero | μV/℃ | ≤10 μV / ℃ |
| Excitation voltage | VDC | 5 VDC |
| Power supply | VDC | 24 ±5 VDC |
| Power consumption | W | ≤10 W |
| Operating temperature range | ℃ | -10 ~ 50 ℃ |
| Nonlinear error | %F.S. | ≤0.002% F.S. |
| Humidity range | RH | ≤90% RH (no condensation) |
