Models
FA04C
Features
| Product Name | Load Cell Amplifier | Display Accuracy | 0.001%F.S. |
|---|---|---|---|
| IP Class | IP65 | Output Rate | 10,40,80,120,200,400,600,800,1200,1600,2400,4800 Times/sec |
| Baud Rate | 1200,2400,4800,9600,19200,38400,57600,115200,230400, 460800,921600 | Resolution | 1/60000 |

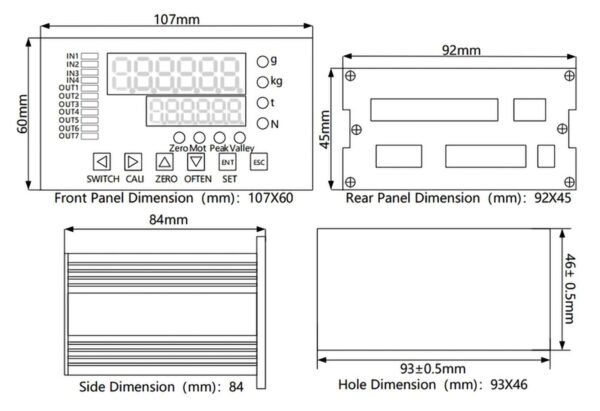

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Product name | – | Load Cell Amplifier |
| Output specifications | mV/V | 0.4 ~ 6 mV/V |
| Display | – | Dual-row 6-digit LED display |
| Display accuracy | – | 1/100000 |
| Sensor excitation voltage | VDC | 5 VDC ±2%, 100 mA |
| Input load | – | Up to 6 units of 350 Ω sensors |
| Power supply | VDC | 12 ~ 30 VDC |
| Operation temp range | ℃ | -30 ~ 60 ℃ |
| IP Class | – | IP65 |
| A/D performance | – | 24-bit, Delta-Sigma method |
| Output rate | Times/sec | 10, 40, 80, 120, 200, 400, 600, 800, 1200, 1600, 2400, 4800 |
| Baud rate | bps | 1200 ~ 921600 (stepwise selectable) |
| Withstand voltage | – | 1 minute at 2000V AC 50/60Hz |
| Surrounding temp range | ℃ | Operation: -10 ~ 55 ℃ / Storage: -25 ~ 65 ℃ |
| Humidity range | %RH | Operation & Storage: 35 ~ 85%RH (no condensation) |
| Protocol type | – | Modbus RTU, ASCII, Free Protocol |
| Communication output | – | RS232 / RS485 |
| Analog output | – | 0 ~ ±10V, 0 ~ 20mA, 4 ~ 20mA |
| Resolution | – | 1/60000 |
