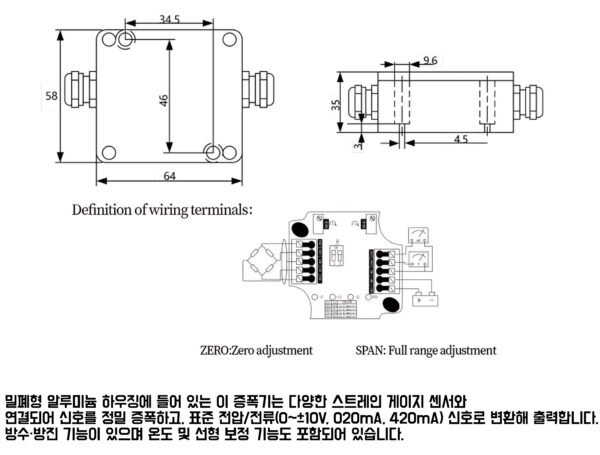

FIBOS / FA01 / Amplifier

The JB4-HX711 is an amplifier for load cells and strain gauges. It combines the functionality of the HX711C and the JB4 to simplify weighing installations. Multiple load cell outputs are summed and it uses the HX711 Integrated Circuit (IC) to convert the mV/V output signals from load cells into amplified digital value that can be read by a microcontroller or PLC system.

JB4-HX711은 로드셀 및 스트레인 게이지용 증폭기입니다. HX711C와 JB4의 기능을 결합하여 계량 설치를 간소화합니다. 여러 로드셀 출력을 합산하고, HX711 집적 회로(IC)를 사용하여 로드셀의 mV/V 출력 신호를 마이크로컨트롤러 또는 PLC 시스템에서 읽을 수 있는 증폭된 디지털 값으로 변환합니다.

The Resolution 1/3000 The Accuracy 0.01%F.S. Force Sensor Instrument Load Cell Amplifier FA04 is a model of our brand FIBOS Load Cell Amplifier&instrument series, Force Sensor Instrument Load Cell Amplifier FA04 its Sensor excitation voltage range is 5VDC±2%,100mA, it can get connected to 6 units of 350Ω sensors.

Input Load 4 * 350~1000 Ω Sensors 0.01%F.S. Load Cell Amplifier FA07-A4 is a model of our brand FIBOS Load Cell Amplifier and instrument series, FA07-A4 its Display accuracy is 0.01%F.S., it can be connected to 4 units of 350Ω~1000Ω sensors, its Output rate is 10 times,40 times,640 times and 1280 times per second.

The HX711N is an amplifier for load cells and strain gauges. It uses the HX711 Integrated Circuit (IC) to convert the mV/V output signals from load cells into amplified digital value that can be read by a microcontroller or PLC system. Unlike the HX711C, the HX711N does not come with on-board connectors and has solder terminals instead. Users can solder the load cell or strain gauge wires directly or use standard 2.54mm headers for prototyping.

HX711N은 로드셀 및 스트레인 게이지용 증폭기입니다. HX711 IC(집적 회로)를 사용하여 로드셀의 mV/V 출력 신호를 마이크로컨트롤러 또는 PLC 시스템에서 읽을 수 있는 증폭된 디지털 값으로 변환합니다. HX711C와 달리 HX711N은 온보드 커넥터가 없고 납땜 단자를 사용합니다. 사용자는 로드셀 또는 스트레인 게이지 와이어를 직접 납땜하거나 표준 2.54mm 헤더를 사용하여 프로토타입을 제작할 수 있습니다.

Input 4 * 350Ω Sensors Dual-Row LED Display ≤0.002%F.S. Weighing Controller Load Cell Amplifier FA08 is a model of our brand FIBOS Load Cell Amplifier and instrument series, FA08 has a Dual-row LED display, its Maximum scale display range is 999999, its Readability is 900000, its Division value is 1,2,5,10,20,50.

Input Load 6 * 350Ω Sensors The Resolution 1/3000 0.01%F.S. IP64 Load Cell Amplifier FA04D is a model of our brand FIBOS Load Cell Amplifier and instrument series, it has a Single-row 6-digit LED display as monitor, its Display accuracy is 0.01%F.S., it can connect to 6 units of 350Ω sensors, it supports IP64.

<0.01%F.S. IP65 Aluminum Alloy Shell Handheld Portable Weighing Instrument Load Cell Amplifier FA06A is a model of our brand FIBOS Amplifier and instrument series, it monitor could display 2.8″ TFT true color and LCD backlight, its Readability is 1/90000, its Output linear <0.002% and its Comprehensive accuracy <0.01%F.S..

Industrial automation, medical, 3C, agriculture and animal husbandry, assembly measurement and various industrial system testing

Industrial automation, medical, 3C, agriculture and animal husbandry, assembly measurement and various industrial system testing

Input 8 * 350Ω Sensors <0.01%F.S. RS232/RS485 IP65 Aluminum Alloy Weight Sensor Instrument Load Cell Amplifier FA05B is a model of our brand FIBOS Weight Sensor Instrument and Load Cell Amplifier series, it has Dual-row LED display, its Readability is 1/900000, its Output linear <0.002%F.S. and its Comprehensive accuracy <0.01%F.S..

2.8″ TFT True Color LCD Backlight <0.01%F.S. IP65 Plastic Shell Handheld Portable Instrument Load Cell Amplifier FA06 is a model of our brand FIBOS Amplifier&instrument series, Plastic Shell Handheld Portable Instrument Load Cell Amplifier FA06 has plastic shell as its material, its Weight approximates 0.5kg, it supports IP65.

Input Load 1 * 350~1000Ω Sensors ≤0.1%F.S. Support Communication RS485/232 IP65 Load Cell Amplifier FA13 is a model of our brand FIBOS Amplifier&instrument series, Load Cell Amplifier FA13 its Comprehensive accuracy ≤0.1%F.S., its Sensor excitation voltage range is 5VDC±2%, 100mA. It has only 1 unit of 350~1000Ω sensors can get connected.
