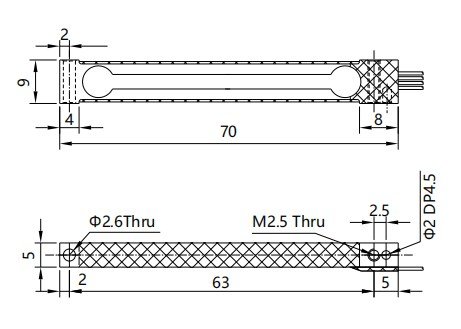

DLC608M Miniature load cell
Featrues:
Aluminum alloy
Special used for pocket scales.
Parametres:
|
Accuracy Class: 0.05% |
Temp. Effect On Output: ±0.05%F.S/10℃ |
|
Rated Output: 0.5±0.15mv/v |
Temp. Effect On Zero: ±0.2%F.S/10℃ |
|
Zero Balance : ±0.1mv/v |
Compensated Temp. Range: -10～+40℃ |
|
Linearity Error: ±0.05%F.S |
Operating Temp. Range: -20～+60℃ |
|
Creep in 3 Min. : ±0.05%F.S |
Excitation Recommended: 3～12(VDC) |
|
Hysteresis Error: ±0.05%F.S |
Safe Overload: 150% |
|
Repeatability Error: ±0.05%F.S |
Ultimate Overload: 200% |
|
Input Resistance: 1130±20Ω |
Insulation Resistance: >2000MΩ(100VDC) |
| Output Resistance: 1000±10Ω |
Protection Class: IP65 |
Wiring Code:
Remarks:
The standard cable length is 100mm.
The length of cable can be customized,ordering instructions.
