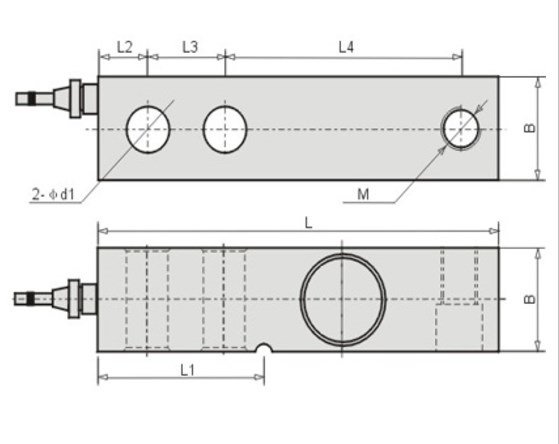

DLC803K Shear Beam Load Cell
Featrues:
Alloy steel
electronic platform scales, hopper scales, and other electronic weighing devies.
Parametres:
|
Accuracy Class: C3 |
Temp. Effect On Output: ±0.02%F.S/10℃ |
|
Rated Output: 3.0±0.003mv/v |
Temp. Effect On Zero: ±0.03%F.S/10℃ |
|
Zero Balance : ±1%mv/v |
Compensated Temp. Range: -10～+40℃ |
|
Linearity Error: ±0.02%F.S |
Operating Temp. Range: -20～+60℃ |
|
Creep in 3 Min. : ±0.02%F.S |
Excitation Recommended: 5～12(VDC) |
|
Hysteresis Error: ±0.02%F.S |
Safe Overload: 150% |
|
Repeatability Error: ±0.02%F.S |
Ultimate Overload: 200% |
|
Input Resistance: 405±10Ω |
Insulation Resistance: >5000MΩ(100VDC) |
| Output Resistance: 350±10Ω |
Protection Class: IP66 |
Wiring Code:
Remarks:
The standard cable length is 3m.
The length of cable can be customized,ordering instructions.
