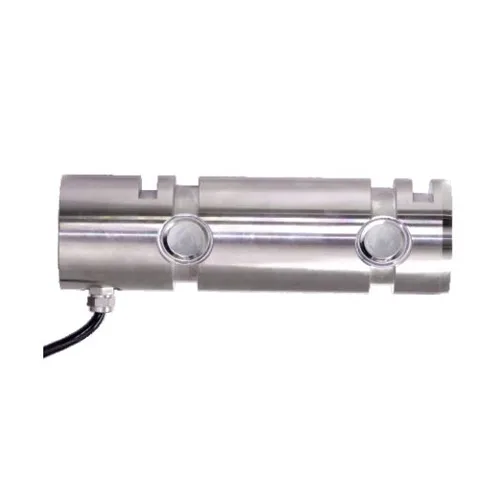

DYZX-001
Features
High stability
Structurally resistant to torsion and bending
Easy installation and system integration
Strong resistance to signal interference with stable output
Made from premium nickel-plated alloy steel
Widely used in various weighing equipment, including crane scales, electronic hook scales, and hoist scales
Also applicable in automation and testing equipment fields

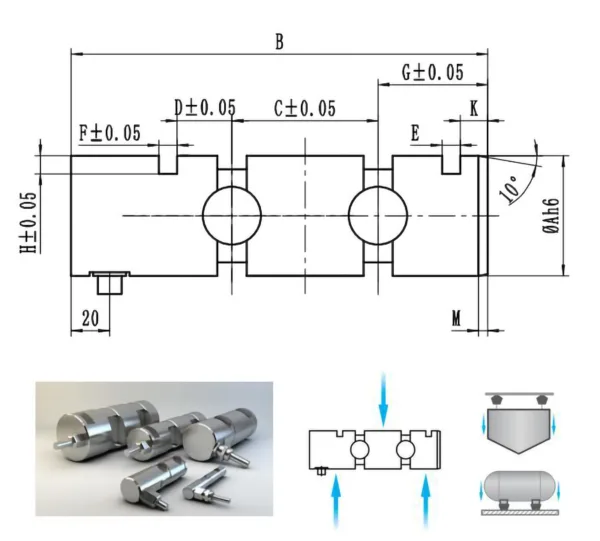

Dimensions
| Capacity(mm) | A | B | C | D | E | F | G | H | K | M |
| 2~5t | 50 | 180 | 66 | 27 | 4.5 | 6.5 | 32 | 7 | 9 | 3 |
| 7~10t | 60 | 190 | 96 | 14 | 10 | 9 | 33 | 9 | 9 | 5 |
| 10~15t | 65 | 210 | 116 | 14 | 10 | 9 | 32 | 9 | 8 | 5 |
| 20~30t | 80 | 225 | 109 | 20 | 12 | 11 | 40 | 10 | 8 | 6 |
| 40~100t | 120 | 275 | 153 | 25 | 14 | 13 | 51 | 15 | 12 | 6 |
Specifications
| Item | Unit | Specification |
|---|---|---|
| Rated Capacity | T | 0–100 |
| Output Sensitivity | mV/V | 1.0 ± 0.05 |
| Zero Balance | %F.S. | ±2 |
| Non-linearity | %F.S. | 0.5 |
| Hysteresis | %F.S. | 0.5 |
| Repeatability | %F.S. | 0.5 |
| Creep (30 min) | %F.S. | 0.5 |
| Temp. Effect on Sensitivity | %F.S./10℃ | 0.05 |
| Temp. Effect on Zero | %F.S./10℃ | 0.05 |
| Frequency Response | kHz | 10 |
| Material | — | Alloy Steel |
| Impedance | Ω | 700 ± 5 |
| Insulation Resistance | MΩ/100V DC | ≥5000 |
| Excitation Voltage | V | 5–15 |
| Operating Temperature Range | ℃ | -20–80 |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 300 |
| Cable Specification | m | Φ5×3m |
| Cable Max Tension | kg | 10 |
| TEDS | — | Optional |
