Models
DYZC-055
Features
-
High stability
-
Low construction height
-
Easy to install and integrate with systems.
-
Stable signal and resistance to external interference.
-
Made from high-quality nickel-plated alloy steel.
-
Widely used in various weighing equipment, including bearing housings, conveyor belt weighing, and overhead crane scales, as well as in automation equipment and testing applications.

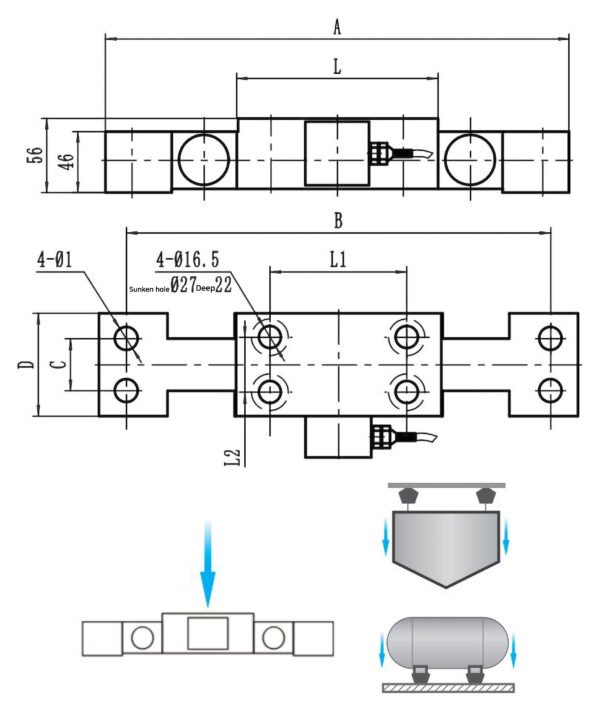

Dimensions
| Capacity(mm) | A | B | C | Φ1 | D | L | L1 | L2 |
| 1.5T | 350 | 310 | 38 | 17 | 75 | 152 | 100 | 40 |
| 2.5T | 410 | 355 | 50 | 21 | 100 | 182 | 130 | 60 |
| 4T | 410 | 355 | 50 | 21 | 100 | 212 | 160 | 60 |
| 10~20T | 410 | 355 | 50 | 21 | 100 | 212 | 160 | 60 |
Specifications
| Item | Unit | Value |
|---|---|---|
| Rated Capacity | T | 0–20 |
| Output Sensitivity | mV/V | 1.0 ± 0.05 |
| Zero Output | %F.S. | ±2 |
| Non-linearity | %F.S. | 0.5 |
| Hysteresis | %F.S. | 0.5 |
| Repeatability | %F.S. | 0.5 |
| Creep (30 minutes) | %F.S. | 0.5 |
| Temperature Effect on Sensitivity | %F.S./10℃ | 0.05 |
| Temperature Effect on Zero | %F.S./10℃ | 0.05 |
| Frequency Response | Hz | 1k |
| Material | — | Alloy Steel |
| Impedance | Ω | 350 / 700 ±5 |
| Insulation Resistance | MΩ (100V DC) | ≥5000 |
| Operating Voltage | V | 5–15 |
| Operating Temperature Range | ℃ | -20 to 80 |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 300 |
| Cable Specification | m | Φ5×3 |
| Maximum Cable Tension | kg | 10 |
| TEDS | — | Optional |
