DYZ-104
Features
-
High stability
-
Can be installed even in narrow spaces
-
Non-standard customization available
-
Strong resistance to signal interference and stable output
-
Made from high-quality nickel-plated alloy steel.
-
Widely used in automotive press equipment, automated assembly, 3C product testing, renewable energy product assembly, medical inspection, robotics, mold assembly, and various industrial testing and automation inspection applications.

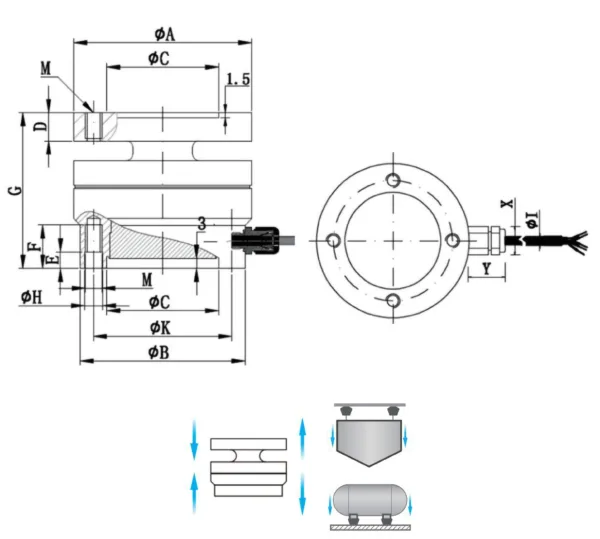

Dimensions
| Capacity(mm) | A | B | C | D | E | F | G | H | K | X | Y | I | J | Z | M |
| 0.5~10kN | 54 | 50 | 34 | 8.5 | 5 | 13 | 47 | 5.5 | 42 | 10 | 13 | 3 | 8 | 9 | 8-M5 |
| 20~100kN | 95 | 90 | 55 | 15 | 5.5 | 20 | 72 | 11 | 70 | 15.7 | 14 | 5 | 10.5 | 14 | 10-M10 |
Specifications
| Item | Unit | Specification |
|---|---|---|
| Rated Capacity | KN | 0–100 |
| Output Sensitivity | mV/V | 2.0 ±10% |
| Zero Output | %F.S. | ±2 |
| Non-linearity | %F.S. | 0.5 |
| Hysteresis | %F.S. | 0.1 |
| Repeatability | %F.S. | 0.1 |
| Creep (30 min) | %F.S. | 0.1 |
| Temp. Effect on Sensitivity | %F.S./10℃ | 0.1 |
| Temp. Effect on Zero | %F.S./10℃ | 0.1 |
| Frequency Response | Hz | 10k |
| Material | — | Stainless Steel / Alloy Steel |
| Impedance | Ω | 700 |
| Insulation Resistance | MΩ/100V DC | ≥5000 |
| Excitation Voltage | V | 10–15 |
| Operating Temperature Range | ℃ | -20 to +80 |
| Safe Overload | %R.C. | 120 |
| Ultimate Overload | %R.C. | 150 |
| Cable Specification | m | Φ5×3m |
| Cable Max Tension | kg | 10 |
| TEDS | — | Optional |
