Models
DYZ-018
Features
-
Wide measurement range
-
Excellent sealing and stable performance
-
Easy to install and use
-
Non-standard customization available
-
Strong resistance to signal interference
-
The sensor adopts a cylindrical or columnar structure depending on the load magnitude and direction.
It features a broad measurement range, good structural sealing, stable and reliable performance, and convenient installation and operation.
Widely used in various industrial weighing and load measurement equipment, such as electronic truck scales, rail scales, platform scales, hopper scales, and other devices, across industries like cement, coal, and more.

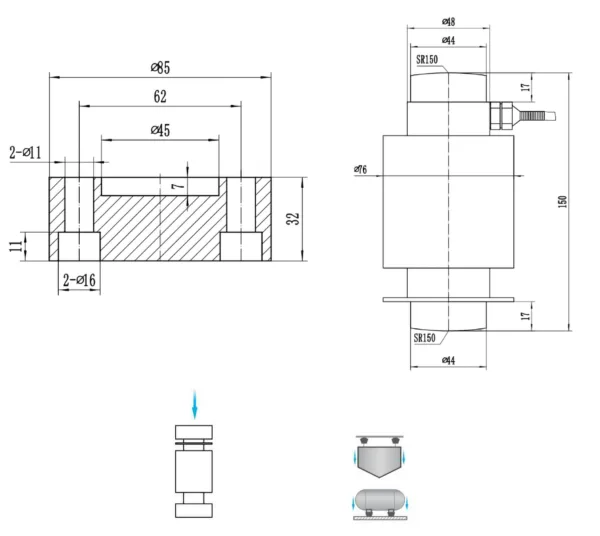

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Rated Capacity | T | 0–40 |
| Output Sensitivity | mV/V | 2.0 ± 0.05 |
| Zero Balance | %F.S. | ±1 |
| Non-linearity | %F.S. | 0.5 |
| Hysteresis | %F.S. | 0.2 |
| Repeatability | %F.S. | 0.15 |
| Creep (30 min) | %F.S. | 0.3 |
| Temperature Effect on Sensitivity | %F.S./10℃ | 0.03 |
| Temperature Effect on Zero | %F.S./10℃ | 0.03 |
| Frequency Response | kHz | 10 |
| Material | — | Stainless Steel |
| Impedance | Ω | 750 ± 20 |
| Insulation Resistance | MΩ/100V DC | ≥5000 |
| Excitation Voltage | V | 5–15 |
| Operating Temperature Range | ℃ | -20 to 80 |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Cable Specification | m | Φ5 × 3m |
| Cable Maximum Tension | Kg | 10 |
| TEDS | — | Optional |
