Models
DYZ-012
Features
-
High stability
-
Can be installed even in narrow spaces
-
Non-standard/custom specifications available
-
Strong resistance to signal interference and stable output
-
Use of high-grade alloy steel
-
Widely used in automotive press equipment, automated assembly, 3C product testing, renewable energy product assembly, medical inspection, robotics, mold assembly, and various industrial testing and automation inspection applications.

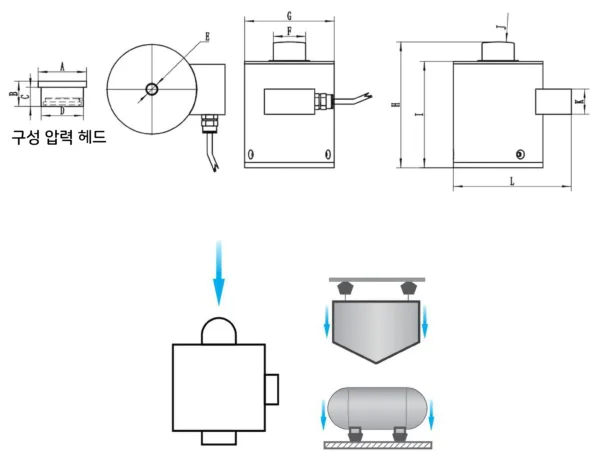

Dimensions
| Capacity(mm) | A | B | C | D | E | F | G | H | I | J | K | L |
| 5~10t | Φ48 | 25 | 19 | Φ42 | M12Deep20 | Φ32.1 | Φ89 | 125 | 105.7 | SR130 | 25 | 117 |
| 30t | Φ55 | 28 | 22 | Φ49 | M12Deep20 | Φ39 | Φ102 | 133 | 117.5 | SR150 | 25 | 130 |
| 60t | Φ64 | 50 | 42 | Φ60 | M20Deep30 | Φ45 | Φ102 | 140 | 118.5 | SR170 | 25 | 130 |
| 100t | Φ87 | 67.5 | 57.4 | Φ77 | M20Deep30 | Φ59 | Φ114 | 190 | 153.5 | SR430 | 25 | 143 |
| 200t | Φ106 | 72.6 | 57.6 | Φ96 | M20Deep30 | Φ80 | Φ140 | 200 | 168 | SR550 | 25 | 170 |
| 300t | Φ123 | 74 | 48.6 | Φ115 | M20Deep30 | Φ94 | Φ158.5 | 235 | 203.5 | SR550 | 25 | 188.5 |
| 500t | Φ158.3 | 95 | / | / | 4-M10Deep20 | Φ130 | Φ201.5 | 305 | 262.5 | SR710 | / | 222 |
Specifications
| Item | Unit | Specification |
|---|---|---|
| Rated Capacity | T | 5–500 |
| Output Sensitivity | mV/V | 2.0 |
| Zero Output | %F.S. | ±0.1 |
| Non-linearity | %F.S. | 0.1 |
| Hysteresis | %F.S. | 0.1 |
| Repeatability | %F.S. | 0.1 |
| Creep (30 min) | %F.S. | 0.1 |
| Temp. Effect on Sensitivity | %F.S./10℃ | 0.05 |
| Temp. Effect on Zero | %F.S./10℃ | 0.05 |
| Response Frequency | Hz | 1k |
| Material | — | Stainless Steel |
| Impedance | Ω | ≤100t: 700Ω, 100t–500t: 1400Ω |
| Insulation Resistance | MΩ/100V DC | ≥5000 |
| Operating Voltage | V | 5–15 |
| Operating Temperature Range | ℃ | -20–80 |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Cable Specification | m | Φ5×2m |
| Cable Max Tension | kg | 10 |
| TEDS | — | Optional |
