DYX-302
Features
-
High stability
-
Low structural height
-
High overall precision
-
Outstanding signal interference prevention performance
-
Made from high-quality nickel-plated alloy steel.
-
Widely used in various weighing equipment such as electronic belt scales, packaging scales, and liquid filling scales, as well as in automation equipment and testing fields.

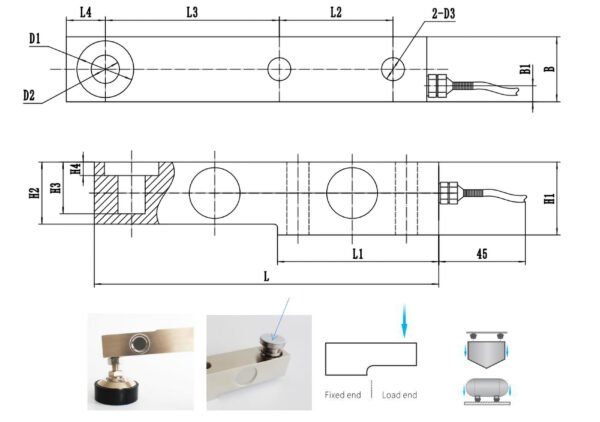

Dimensions
| Capacity(mm) | L | L1 | L2 | L3 | L4 | L5 | W1 | H | H1 | D | D1 | ΦD2 | ΦD3 |
| 0.5~2T | 72 | 41 | 16 | 8 | 25 | 62 | 72 | 13 | 4.6 | 62 | 72 | 13 | 4.6 |
| 3T | 88 | 53 | 20 | 10 | 34 | 75 | 88 | 20 | 5.6 | 62 | 72 | 13 | 4.6 |
| 5T~8T | 114 | 70 | 25 | 13 | 46 | 95 | 114 | 25 | 6.5 | 62 | 72 | 13 | 4.6 |
| 15~25T | 145 | 91 | 32 | 16 | 60 | 120 | 145 | 30 | 11 | 62 | 72 | 13 | 4.6 |
Specifications
| Item | Unit | Specification |
|---|---|---|
| Rated Capacity | T | 0–25 |
| Output Sensitivity | mV/V | 2.0 ± 0.02 |
| Zero Output | %F.S. | ±1 |
| Non-linearity | %F.S. | 0.03 |
| Hysteresis | %F.S. | 0.03 |
| Repeatability | %F.S. | 0.02 |
| Creep (30 minutes) | %F.S. | 0.02 |
| Temperature Effect on Sensitivity | %F.S./10℃ | 0.03 |
| Temperature Effect on Zero | %F.S./10℃ | 0.03 |
| Frequency Response | Hz | 1k |
| Material | – | Alloy Steel / Stainless Steel |
| Impedance | Ω | 350 |
| Insulation Resistance | MΩ/100V DC | ≥5000 |
| Operating Voltage | V | 5–10 |
| Operating Temperature Range | ℃ | -20 to 80 |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 300 |
| Cable Specification | m | Φ5×5m |
| Cable Maximum Tension | kg | 10 |
| TEDS | – | Optional |
