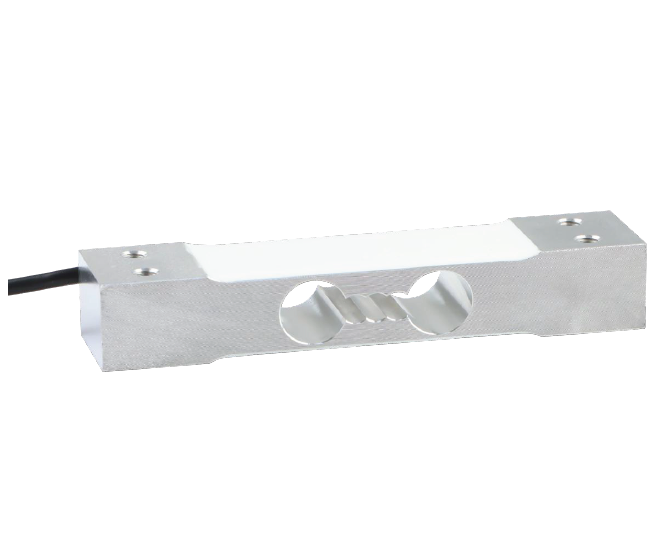

DYX-306B Single-Ended Beam Load Cell Specifications
Special features
- Aluminum construction
- capacities from 3kg to 50kg
- Complies with OIML R60 regulations up to 6000d divisions
- Special silicone rubber potting (IP66)
- Off-center load compensated(OIML R76)
- Applications: retail scale, packaging scale and process weighing systems
Option
- Aligned output, suitable for parallel connection
- Explosion-proof versions
Dimensions

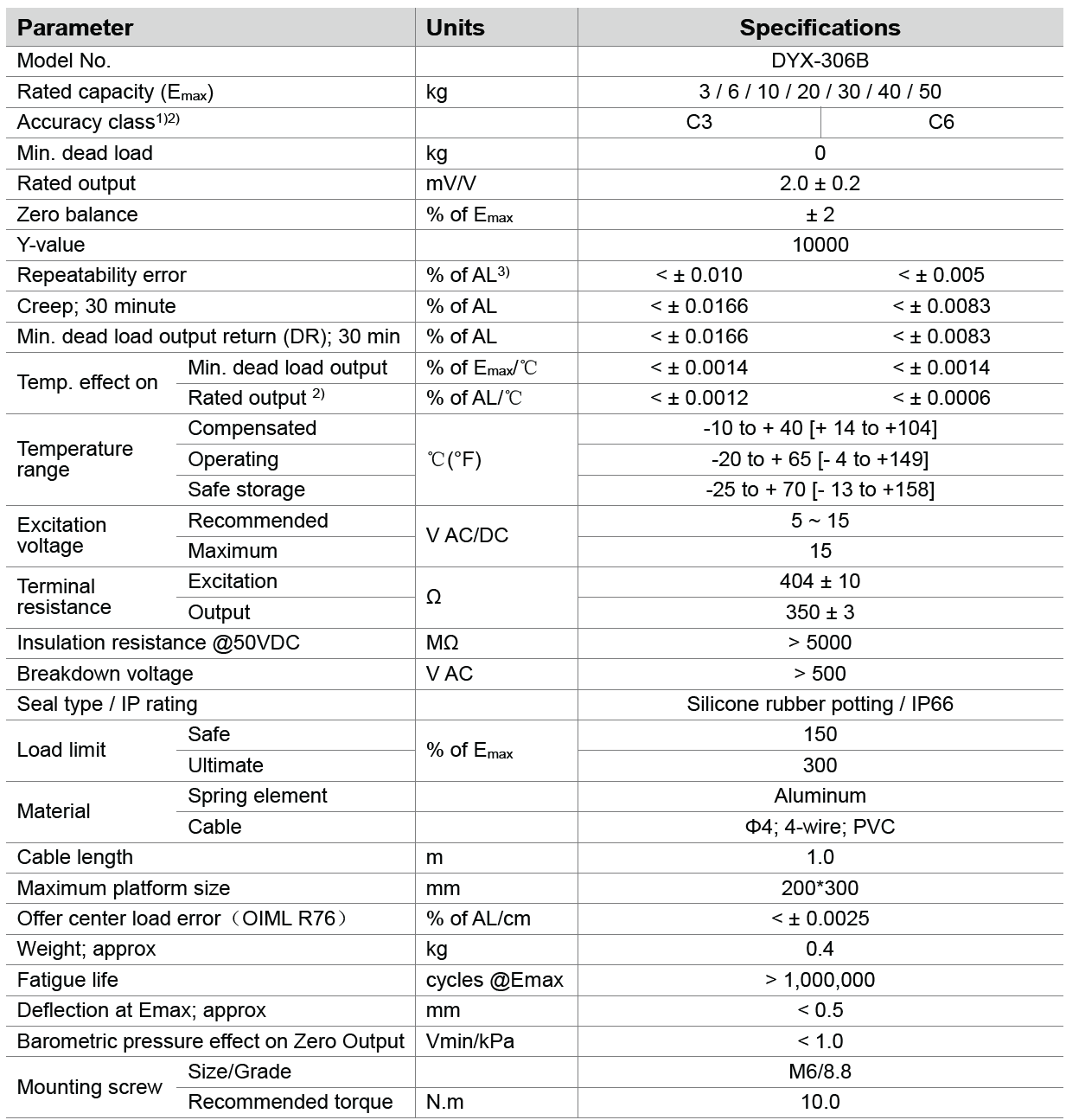

Notes:
1) Error due to combined effect of non-linearity and hysteresis.
2) The sum of errors due to Temperature Effect on Output comply with the requirements of OIML R60 and NIST HB44
3) AL = Applied Load.
