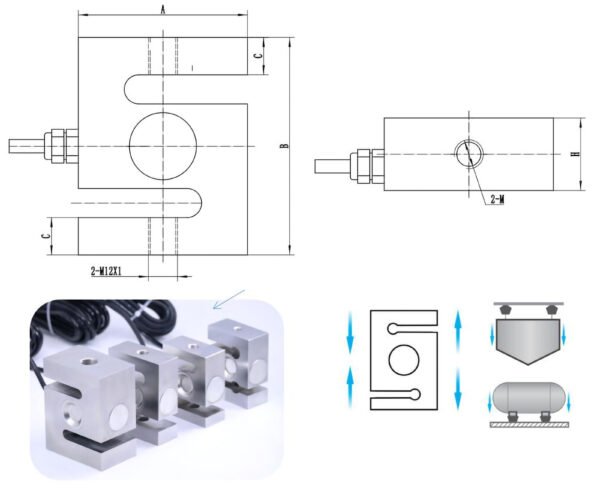

DAYSENSOR / DYTSH / S type Load Cell

This weigh module has a rugged and compact design and an accuracy, which makes it especially suitable for load and level monitoring in storage tanks. The sensing element consists of three sections. The two outer sections constitute supports and rest on the built-in block, which is secured to the base. On the middle section, which is the loadsensing part, there is a yoke to which the leg of the tank is secured. The sensor is efficiently locked so that it cannot twist in the built-in block.

50,100,300,500kg Or Customized Spoke Type Load Cell FA129B is a model of our brand FIBOS FA1-Series, it belongs to FA129. Spoke Type Load Cell FA129B can be used to measure load 50kg,100kg,300kg and 500kg or customized capacity, its Creep(30min) and Non-linearity both ≤0.02%F.S. or can be customized, its Hysteresis and Repeatability both ≤0.018%F.S. or can also be customized.

5,10,20,50,1000kN Or Customized Column Type Load Cell FA407B is a model of Column Type Load Cell, it belongs to FA407 in our brand FA4-Series, FA407B is used to measure load 5kN, 10kN, 20kN, 50kN and 1000kN or customized capacity, its Cable size is ⌀6x5000mm or customized length, its weight is 2kg or customized.

50-2000N Stainless Steel S Beam Load Cell FA303 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA303 can be used to measure load 50N,100N,200N,500N,1000N and 2000N capacity, its Weight is 0.2kg and material is Stainless steel, its Rated output range is 2.0±10%mV/V, its Zero Balance range is ±0.05mV/V.

20,50,100,200,500kg Or Customized Spoke Type Load Cell FA119B is a model of our brand FIBOS FA1-Series, it belongs to FA119 which is in Spoke Type Load Cell category, FA119B can be used to measure load 20kg,50kg,100kg,200kg and 500kg or customized capacity, its Rated output range is 1.5±15%mV/V, its Cable size is ⌀1.2x3000mm or customized length.

500,1000,2000,5000,10000N Or Customized Column Type Load Cell FA402B is a model of Column Type Load Cell, it belongs to FA402 in our brand FIBOS FA4-Series, FA402B could measure load 500N, 1000N, 2000N, 5000N and 10000N or customized Capacity, its Creep(30min), Non-linearity, Hysteresis, Repeatability all ≤0.05%F.S. or could be customized, its weight is 0.1kg or customized.

FA806 static load weighing module is based on the FA473 column load cell, with a range from 10t to 50t. It is characterized by its compact construction, which does not require the installation of additional accessories; the self-stabilizing load cell bearing head allows accurate and repeatable metering; quick and easy installation, saving installation and downtime for maintenance. The static load weighing module can be easily mounted on containers of various shapes and can be easily loaded, dosed, or mixed in this container.

10-1000N Stainless Steel S Beam Load Cell FA302 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA302 can be used to measure load ranges from 10N,20N,50N,100N,200N,500N up to 1000N capacity, its Cable size is ⌀2x3000mm, its Weight is 0.1kg and Material is Stainless steel, its range of Input impedance and Output impedance are both 650/350±5Ω.

50kg 100kg 200kg 500kg ≤0.1%F.S. Stainless Steel Spoke Type Load Cell FA122C is a model of our brand FIBOS FA1-Series, Spoke Type Load Cell FA122C can be used to measure load ranges from 50kg,100kg,200kg up to 500kg capacity, its Cable size is ⌀4x3m and its material is Stainless steel, its Rated output range is 1.5~2.0mV/V.

50,100,500,1000,5000kg Or Customized Tension Compression Force Sensor FA130C belongs to FA130 which is in Tension Compression Force Sensor category of our brand FIBOS FA1-Series. FA130C can be used to measure tension&compression force ranges from 50kg,100kg,500kg,1000kg and 5000kg or customized capacity.

50-5000kg Large Range Weight Measurement Applied S Beam Load Cell FA305 is a model of our brand FIBOS FA3-Series, S Beam Load Cell FA305 can be used to measure load 50kg,100kg,200kg,500kg,1000kg, 2000kg,3000kg and 5000kg capacity, its Rated output range is 2.0±0.25%mV/V, its Zero Balance range is ±0.01mV/V.

5-200N Stainless Steel S Beam Load Cell FA301 is a model of our brand FIBOS FA3-Series, it belongs to S Beam Load Cell category, FA301 can be used to measure load 5N,10N,20N,50N,100N and 200N capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability all ≤0.05%F.S., its Cable size is ⌀2x3000mm.
