Models
DYSBS
Features
High stability
Low construction height
Excellent overall precision
Excellent signal stability and strong electromagnetic interference resistance
High-quality nickel-plated alloy steel
Widely used in weighing equipment such as electronic belt scales, packaging scales, and liquid filling scales, as well as in automation and testing equipment

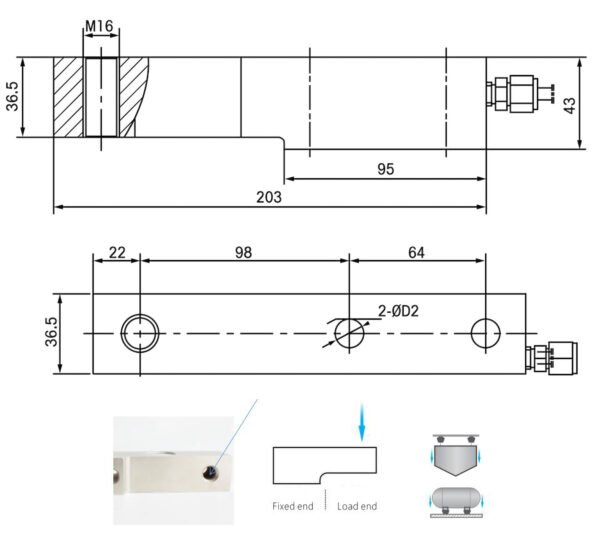

Dimensions
| Capacity(mm) | D2 |
| 0.3~2T | 13 |
| 3T | 15 |
Specifications
| Item | Unit | Specification |
|---|---|---|
| Rated Capacity | T | 0–3 |
| Output Sensitivity | mV/V | 2.0 ± 0.02 |
| Zero Balance | %F.S. | ±1 |
| Non-linearity | %F.S. | 0.03 |
| Hysteresis | %F.S. | 0.03 |
| Repeatability | %F.S. | 0.02 |
| Creep (30min) | %F.S. | 0.02 |
| Temperature Effect on Sensitivity | %F.S./10℃ | 0.03 |
| Temperature Effect on Zero | %F.S./10℃ | 0.03 |
| Frequency Response | Hz | 1k |
| Material | – | Alloy Steel / Stainless Steel |
| Impedance | Ω | 350 |
| Insulation Resistance | MΩ/100V DC | ≥5000 |
| Excitation Voltage | V | 5–15 |
| Operating Temperature Range | ℃ | -20 to 80 |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Cable Specification | m | Φ5*3m |
| Cable Maximum Tension | kg | 10 |
| TEDS | – | Optional |
