Models
DYPB-003
Features
Large load-bearing area
Low Structure
High Overall Precision
Excellent long-term stability.
High-Grade Nickel-Plated Alloy Steel
Applied to pressure measurement equipment such as battery compression equipment and general material testing machines, as well as automation and testing fields.

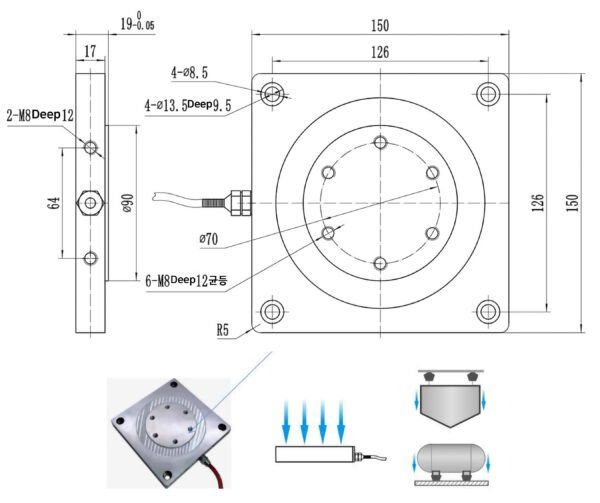

Dimensions
Specifications
| Item | Unit | Value |
|---|---|---|
| Rated Capacity | T | 1-5 |
| Output Sensitivity | mV/V | 1.5–2.0 |
| Zero Balance | %F.S. | ±2 |
| Non-linearity | %F.S. | 0.5 |
| Hysteresis | %F.S. | 0.5 |
| Repeatability | %F.S. | 0.5 |
| Creep (30 minutes) | %F.S. | 0.3 |
| Temperature Effect on Sensitivity | %F.S./10℃ | 0.1 |
| Temperature Effect on Zero | %F.S./10℃ | 0.3 |
| Frequency Response | Hz | 10k |
| Material | — | 42CrMoA |
| Impedance | Ω | 750± |
| Insulation Resistance | MΩ/100V DC | ≥5000 |
| Operating Voltage | V | 10–15 |
| Operating Temperature Range | ℃ | -20 to 80 |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Cable Specification | m | φ5×2m |
| Cable Pull Strength Limit | kg | 10 |
| TEDS | — | Optional |
