Models
DYPB-001
Features
-
하중을 받는 면적이 넓음
-
Low construction height
-
High overall accuracy.
-
Excellent long-term stability.
-
Made from high-quality nickel-plated alloy steel.
-
Applicable to pressure testing equipment and automation equipment, such as battery press fitting and universal material testing machines, and testing fields.

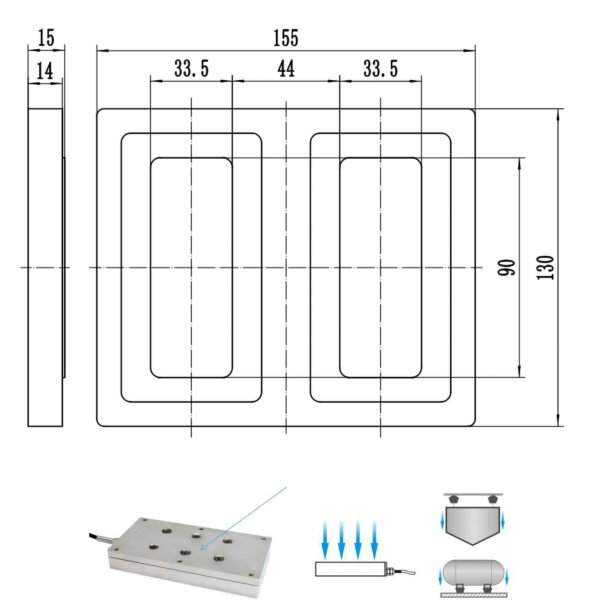

Dimensions
Specifications
| Item | Unit | Value |
|---|---|---|
| Rated Capacity | T | 1–3 |
| Output Sensitivity | mV/V | 1.5–2.0 |
| Zero Output | %F.S. | 0.1 |
| Non-linearity | %F.S. | 0.5 |
| Hysteresis | %F.S. | 0.5 |
| Repeatability | %F.S. | 0.5 |
| Creep (30 minutes) | %F.S. | 0.3 |
| Temperature Effect on Sensitivity | %F.S./10℃ | 0.1 |
| Temperature Effect on Zero | %F.S./10℃ | 0.3 |
| Frequency Response | kHz | 10 |
| Material | — | 42CrMoA |
| Impedance | Ω | 750 |
| Insulation Resistance | MΩ (100V DC) | ≥5000 |
| Operating Voltage | V | 10–15 |
| Operating Temperature Range | ℃ | -20 to 80 |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Cable Specification | m | Φ5×2 |
| Maximum Cable Tension | kg | 10 |
| TEDS | — | Optional |
