Models
DYN-207
Features
-
Capable of measuring non-rotating and rotating torque
-
High precision, stable, and reliable performance
-
Capable of continuous operation at high speeds for extended periods
-
Forward and reverse torque signal output
-
Keyed connections at both ends
-
Maximum rotation speed: 3,000 rpm or less

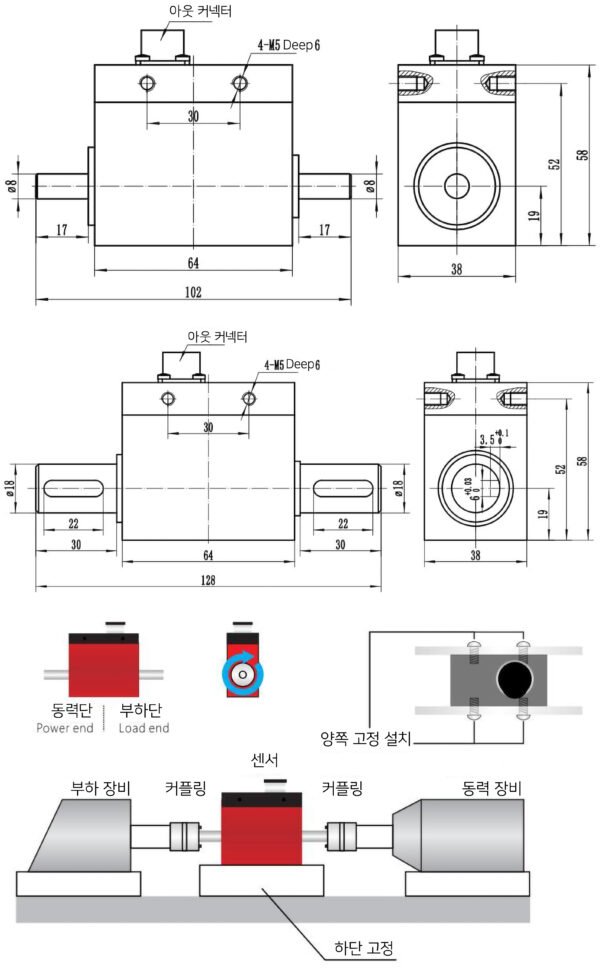

Dimensions
Specifications
| Parameter | Unit | Value |
|---|---|---|
| Measuring Range | N·m | 0–200 |
| Speed Range | RPM | ≤3000 |
| Zero Output | %F.S. | ±0.5 |
| Non-linearity | %F.S. | 0.1 |
| Hysteresis | %F.S. | 0.5 |
| Repeatability | %F.S. | 0.05 |
| Creep (30 minutes) | %F.S. | 0.05 |
| Temp. Sensitivity Drift | %F.S./10℃ | 0.05 |
| Zero Temp. Drift | %F.S./10℃ | 0.05 |
| Response Time | ms (50% resp.) | 1.0 |
| Frequency Response | kHz | 1 |
| Max Torsional Angle | rad (°) | 2.60×10 rad (0.149°) |
| Moment of Inertia | kg·cm² | 0.38 |
| Rotor Natural Vibration Freq. | kHz | 19.4 |
| Torque Constant | Nm/rad | 3.85×10 |
| Material | – | Stainless steel |
| Annual Stability | %/year | 0.3% |
| Operating Voltage | V DC | 5–15 |
| Current Consumption | mA | <150 |
| Operating Environment | – | -10–50℃, 0–85% RH |
| Safe Overload | % | 200% |
| Cable Specification | – | φ5×3m |
| Max Cable Tensile Strength | kg | 10 |
