Models
DYN-206
Features
-
Capable of measuring non-rotating and rotating torque
-
High precision, excellent performance stability
-
High-speed, long-term operation possible
-
Forward and reverse torque signal output
-
Key-type connections at both ends
-
Maximum rotation speed: 3,000 rpm or less

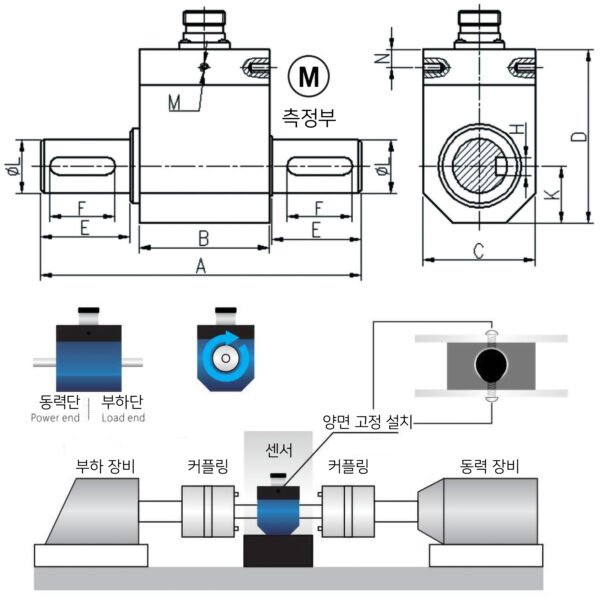

Dimensions
Original texts: (b*l1*m*quantity)
| Capacity(mm) | A | ΦL | B | C | D | E | F | K | N | M | H |
| 5~100N·m | 108 | 18 | 44 | 38 | 58 | 123 | 58 | 72 | 95 | 62 | 90 |
| 200~300N·m | 143 | 28 | 56 | 53 | 73.5 | 133 | 63 | 72 | 95 | 62 | 90 |
| 500~800N·m | 188 | 38 | 70 | 78 | 96 | 144 | 69 | 72 | 95 | 62 | 90 |
Specifications
| Parameter | Unit | Value |
|---|---|---|
| Measuring Range | N·m | 0–800 |
| Speed Range | rpm | ≤3000 |
| Zero Output | %F.S. | ±0.5 |
| Non-linearity | %F.S. | 0.1 |
| Hysteresis | %F.S. | 0.5 |
| Repeatability | %F.S. | 0.05 |
| Creep (30 minutes) | %F.S. | 0.05 |
| Temperature Sensitivity Drift | %F.S./10℃ | 0.05 |
| Zero Temperature Drift | %F.S./10℃ | 0.05 |
| Response Time (50% response) | ms | 1.0 |
| Frequency Response | kHz | 1 |
| Max Torsion Angle | rad (°) | 2.60×10 rad (0.149°) |
| Moment of Inertia | kg·cm² | 0.38 |
| Rotor Natural Frequency | kHz | 19.4 |
| Torsional Stiffness | N·m/rad | 3.85×10 |
| Material | — | Stainless Steel |
| Annual Stability | %/year | 0.3 |
| Operating Voltage | V DC | 5–15 |
| Power Consumption | mA | <150 |
| Operating Environment | °C / %RH | -10–50°C / 0–85%RH |
| Safe Overload | — | 200% |
| Cable Specification | — | φ5×3m |
| Max Cable Tensile Strength | kg | 10 |
