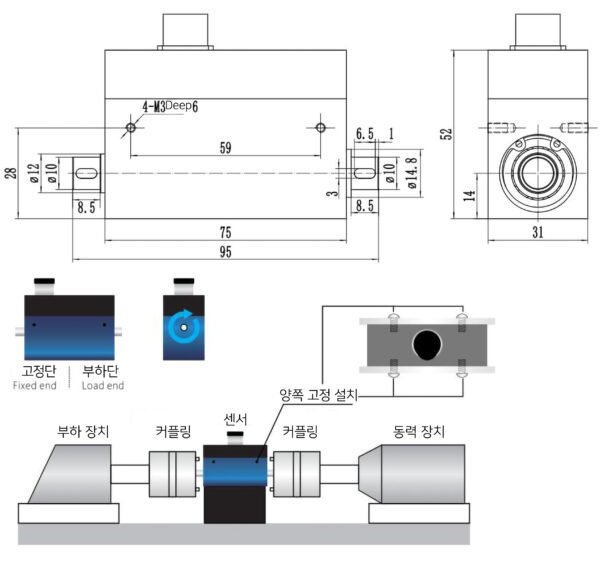

DAYSENSOR / DYN-204 / Torque Sensor

Static torque sensor is an instrument that converts the strain generated by torsional torque into an electrical signal with a linear relationship according to the principle of resistance strain, the product has mature manufacturing technology, complete variety, wide range, high precision, stable and reliable performance. It is widely used in testing machines, static torque detection and other test systems.

The ZMNJ is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. The ZMNJ can be used in both clockwise and counterclockwise direction ranging from 1Nm up to 200Nm. The sensor is used in static and non-rotating torsion measure applications.

Nickel plated alloy steel

The ZMNJF2 is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. The ZMNJF2 can be used in both clockwise and counterclockwise direction ranging from 1000Nm up to 5000Nm. The sensor is used in static and non-rotating torsion measure applications.

Nickel plated alloy steel

0.5,1,2,3,5,10,20,30,50,100,200,300,500kN.m or customized Static Torque Sensor Force Torque Sensor FA625A belongs to FA625 which is in Static Torque Sensor of Force Torque Sensor category, FA625A can be used to measure Static Torque force 0.5kN.m,1kN.m,2kN.m,3kN.m,5kN.m,10kN.m,20kN.m,30kN.m,50kN.m,100kN.m,200kN.m,300kN.m and 500kN.m or customized capacity.

A dynamic torque sensor is a precision measuring instrument capable of measuring the output torque and power of rotating power equipment It is widely used in torque and power testing of rotating power equipment such as electric motors, engines, and internal combustion engines, as well as torque and power testing of mechanical components such as fans, water pumps, gearboxes, and torque wrenches.

The ZHKY2051 is a compact high capacity slip ring type torque sensor ideal for a wide range of torque applications. Its size is larger than ZHKY2050 torque sensors, however, it offers a broad capacity range in the same form factor with mounting plate. This sensor is built with a stainless steel shaft and aluminum body and so that it can handle a maximum of up to 500N·m at 8000RPM.

ZHKY2051은 다양한 토크 어플리케이션에 적합한 소형 고용량 슬립링 타입 토크 센서입니다. ZHKY2050 토크 센서보다 크기가 크지만, 장착 플레이트를 포함하여 동일한 폼팩터에서 광범위한 용량 범위를 제공합니다. 이 센서는 스테인리스 스틸 샤프트와 알루미늄 바디로 제작되어 8000RPM에서 최대 500N·m의 토크를 견딜 수 있습니다.

The KWR46 series sensor is a small-size compact six-axis force sensor. It has characristics with light weight and small volumn. Its measuring range is around 50N to 200N, and could be customized as your needs. Our product has high anti-overload protection ability, it can withstand 300% overload.The small-size sensor widely used in scientific research and medical testing fields. For this series model small volumn that it can’t be embedded in circuit board moduel, so we will provide a signal acquisition box according to the communication protocol version you need.

Suitable for dynamic, bearing, torque wrench and other testers

Suitable for dynamic, bearing, torque wrench and other testers

For static, non-continuous torque measurement

The ZHKY2050 is a compact non-contact type torque sensor ideal for low torque applications with maximum of only 5N·m. The ZHKY2050 can still handle up to 8000RPM so it is for systems that require high speed.

The ZMZNJ is dual range shaft torque sensor. The torque sensor measures shaft-shaft type connection, measuring torsion by strain gages. There are both analog and digital output signals available for evaluation. The stainless steel construction is optional.

Nickel plated alloy steel
