Models
DYMK-003
Features
High stability
Supports various installation methods
Customizable for non-standard specifications
Strong interference resistance with stable signal output
Made of high-quality alloy steel 반응기, 배합 탱크, 호퍼, 사일로, 저장탱크, 시멘트 믹싱 플랜트, 화학·의약·식품 산업 등 다양한 배합 계량 분야에 광범위하게 사용됨

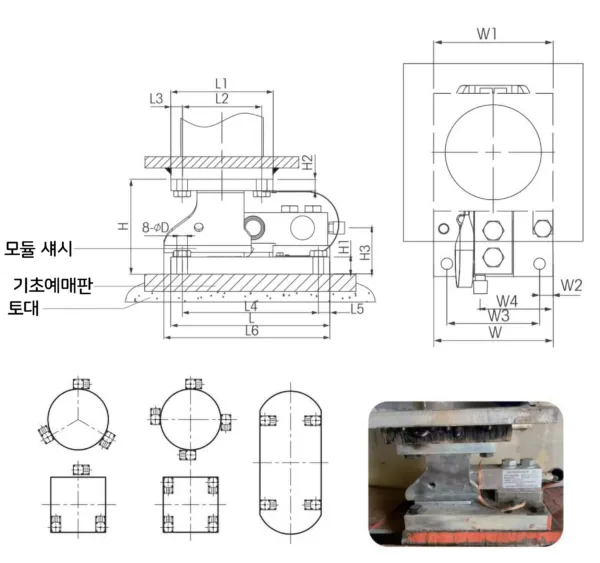

Dimensions
| Capacity(mm) | D | H | H1 | H2 | H3 | H4 | L | L1 | L2 | L3 | L4 | L5 | L6 | W | W1 | W2 | W3 | W4 |
| 10~100kg | 10 | 83 | 12.7 | 8 | 41 | 10 | 165 | 102 | 82 | 10 | 145 | 10 | – | 102 | 102 | 10 | 82 | 60 |
| 100~300kg | 11.2 | 105.2 | 19.1 | 12.7 | 50.9 | 15 | 177.9 | 114.4 | 89 | 12.7 | 152.4 | 12.7 | 185.6 | 114.4 | 114.1 | 12.7 | 89 | 66.6 |
| 300kg~1t | 11.2 | 105.2 | 19.1 | 12.7 | 50.9 | 15 | 177.9 | 114.4 | 89.0 | – | – | – | – | – | – | – | – | 66.6 |
| 2~3t | – | – | – | – | 51.3 | – | – | – | – | 12.7 | 152.4 | 12.7 | 185.6 | 114.4 | 114.4 | 12.7 | 89.0 | 69.7 |
| 5t | 17.5 | 139.2 | 25.4 | 19.1 | 67.9 | 20 | 235.0 | 152.4 | 101.6 | 25.4 | 184.2 | 25.4 | – | 152.4 | 152.4 | 25.4 | 101.6 | 91.7 |
Specifications
| Item | Unit | Specification |
|---|---|---|
| Rated Capacity | T | 0–5T |
| Output Sensitivity | mV/V | 2.0 ±0.002 |
| Zero Output | %F.S. | ±2 |
| Non-linearity | %F.S. | 0.05 |
| Hysteresis | %F.S. | 0.03 |
| Repeatability | %F.S. | 0.03 |
| Creep (30 minutes) | %F.S. | 0.03 |
| Temp. Effect on Sensitivity | %F.S./10℃ | 0.03 |
| Temp. Effect on Zero | %F.S./10℃ | 0.05 |
| Frequency Response | Hz | 10k |
| Material | – | Alloy Steel / Stainless Steel |
| Impedance | Ω | 350 / 380 |
| Insulation Resistance | MΩ/100V DC | ≥5000 |
| Excitation Voltage | V | 5–15 |
| Operating Temperature Range | ℃ | -20 to 60 |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Cable Specification | m | Φ5×5m |
| Maximum Cable Tension | kg | 10 |
| TEDS | – | Optional |
