Models
DYLY-108
Features
-
Capable of measuring tensile and compressive loads in both directions.
-
Easy to install thanks to its compact design.
-
High overall accuracy.
-
Excellent long-term stability.
-
Made from high-quality nickel-plated alloy steel.
-
Universal material testing machines, hopper scales, crane scales, packaging scales, belt scales, plug-in/output force testers, etc.
Widely used in tensile and compressive strength testing equipment, automation equipment, and testing applications.

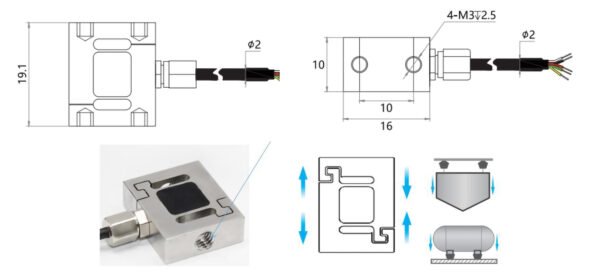

Dimensions
Specifications
| Item | Unit | Specification |
|---|---|---|
| Rated Capacity | Kg | 200 |
| Output Sensitivity | mV/V | 1.0–2.0 |
| Zero Output | %F.S. | ±0.05 |
| Non-linearity | %F.S. | 0.1 |
| Hysteresis | %F.S. | 0.05 |
| Repeatability | %F.S. | 0.05 |
| Creep (30 minutes) | %F.S. | 0.05 |
| Temp. Effect on Sensitivity | %F.S./10℃ | 0.05 |
| Temp. Effect on Zero | %F.S./10℃ | 0.05 |
| Frequency Response | Hz | 1k |
| Material | — | Stainless Steel |
| Impedance | Ω | 350 |
| Insulation Resistance | MΩ/100V DC | ≥5000 |
| Excitation Voltage | V | 5–10 |
| Operating Temperature | ℃ | -20 to 80 |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 200 |
| Cable Specification | m | <100kg: Φ2×1m >100kg: Φ3×2m |
| Maximum Cable Tension | N | 98 |
| TEDS | — | Optional |
