Models
DYLSC-50kg, DYLSC-100kg, DYLSC-200kg, DYLSC-300kg, DYLSC-500kg, DYLSC-1,000kg, DYLSC-2,000kg, DYLSC-3,000kg, DYLSC-5,000kg
Features
-
Capable of measuring tensile and compressive loads in both directions.
-
Easy to install thanks to its compact design.
-
High overall accuracy.
-
Excellent long-term stability.
-
Made from high-quality nickel-plated alloy steel.
-
Universal material testing machines, hopper scales, crane scales, packaging scales, belt scales, plug-in/output force testers, etc.
Widely used in tensile and compressive strength testing equipment, automation equipment, and testing applications.

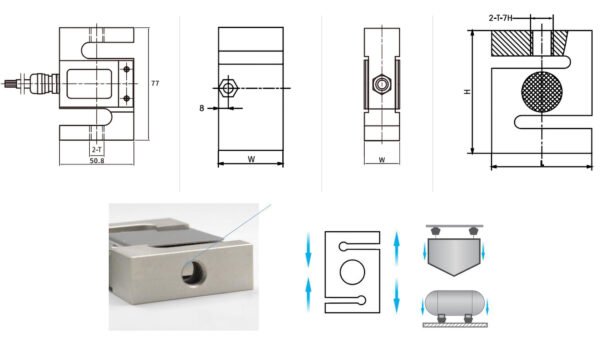

Dimensions
| Capacity(mm) | W | T |
| 50, 100, 200kg | 18.5 | M10*1 |
| 300kg | 24.4 | M10*1 |
| 500kg | 24.4 | M12*1 |
| 1,000kg | 36 | M12*1 |
| Capacity(mm) | L | H | W | T |
| 2,000kg | 70 | 86 | 45 | M16*1.5 |
| 3,000kg | 80 | 100 | 50 | M18*1.5 |
| 5,000kg | 92 | 130 | 58 | M20*2 |
Specifications
| Item | Unit | Specification |
|---|---|---|
| Rated Capacity | – | 50 kg – 5 T |
| Output Sensitivity | mV/V | 2.0–3.0 ±10% |
| Zero Output | %F.S. | ±1 |
| Non-linearity | %F.S. | 0.03 |
| Hysteresis | %F.S. | 0.03 |
| Repeatability | %F.S. | 0.03 |
| Creep (30 min) | %F.S. | 0.05 |
| Temp. Effect on Sensitivity | %F.S./10℃ | 0.03 |
| Temp. Effect on Zero | %F.S./10℃ | 0.05 |
| Frequency Response | Hz | 10k |
| Material | – | Alloy Steel |
| Impedance | Ω | 350 |
| Insulation Resistance | MΩ / 100V DC | ≥5000 |
| Operating Voltage | V | 5–15 |
| Operating Temp. Range | ℃ | -20 to 80 |
| Safe Overload | %R.C. | 150 |
| Ultimate Overload | %R.C. | 300 |
| Cable Specification | m | Φ5 × 6 m |
| Cable Max Tension | kg | 10 |
| TEDS | – | Optional |
