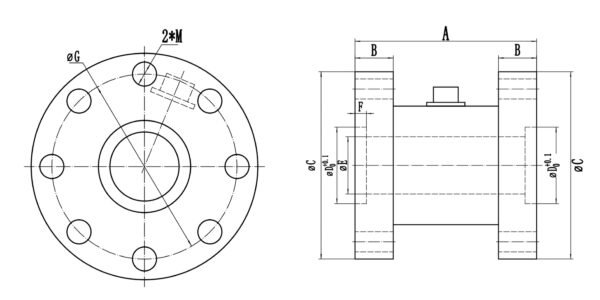

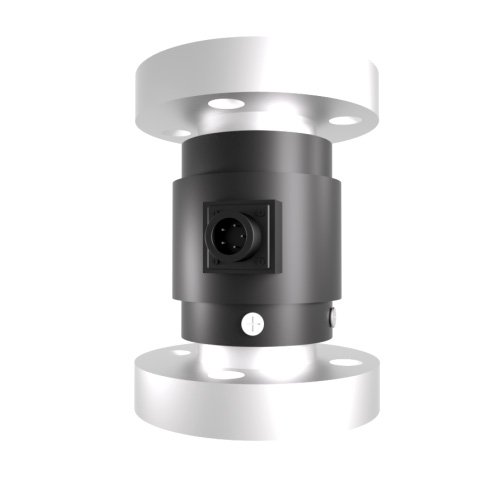

DAYSENSOR / DYJN-111 / Torque Sensor

The KWR63 series is a small circle volumn Multi Axis load cell, which is close to the outer diameter of the end of most cooperative robots. The material is aluminum alloy, and the f/t sensor has the characteristics of high overload, high rigidity and high sensitivity.It support wide communication protocol, such as RS422, RS485, Industrial Ethernet, USB, CAN,etc.

Suitable for dynamic, bearing, torque wrench and other testers

For static, non-continuous torque measurement

The KWR46 series sensor is a small-size compact six-axis force sensor. It has characristics with light weight and small volumn. Its measuring range is around 50N to 200N, and could be customized as your needs. Our product has high anti-overload protection ability, it can withstand 300% overload.The small-size sensor widely used in scientific research and medical testing fields. For this series model small volumn that it can’t be embedded in circuit board moduel, so we will provide a signal acquisition box according to the communication protocol version you need.

1,2,3,5,10,20,30,50,100,200Nm Or Customized Dynamic Torque Sensor FA607B is a model of our brand FIBOS FA6-Series, FA607B belongs to FA607 which is from Torque Force Sensor, it can be used to measure Torque Force 1N.m, 2N.m, 3N.m, 5N.m, 10N.m, 20N.m, 30N.m, 50N.m, 100N.m, 200N.m or customized capacity, its Creep(30min) and Repeatability both same ≤0.1%F.S. or can be customized, its Non-linearity and Hysteresis both same ≤0.2%F.S. or also can be customized.

For static, non-continuous torque measurement

The ZHKY2050 is a compact non-contact type torque sensor ideal for low torque applications with maximum of only 5N·m. The ZHKY2050 can still handle up to 8000RPM so it is for systems that require high speed.

10,20,50,100,200,500t Or Customized Dynamic Torque Sensor Force Torque Sensor FA607A belongs to FA607 which is in Dynamic Torque Sensor Force Torque Sensor category of our brand FIBOS FA6-Series, Dynamic Torque Sensor Force Torque Sensor FA607 its Creep(30min),Non-linearity and Hysteresis all ≤0.15%F.S. or can be customized, its Repeatability ≤0.13%F.S. or customized.

This sensor is suitable for most domestic and foreign cooperative robots. It is an embedded high-precision six-axis force sensor that our company hot sells. It uses silicon strain gauge, based on the principle of strain electrical measurement to convert the load into voltage signal, combined with six axis joint calibration technology to make the product achieve higher accuracy and precision. It is widely used in 3C testing, medical testing, drag teaching, automobile testing, and other fields.

For static, non-continuous torque measurement

The ZM2DW force sensor F, M utilizes independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.

Compact size

0.5,1,2,3,5,10,20,30,50,100,200,300,500kN.m or customized Static Torque Sensor Force Torque Sensor FA625A belongs to FA625 which is in Static Torque Sensor of Force Torque Sensor category, FA625A can be used to measure Static Torque force 0.5kN.m,1kN.m,2kN.m,3kN.m,5kN.m,10kN.m,20kN.m,30kN.m,50kN.m,100kN.m,200kN.m,300kN.m and 500kN.m or customized capacity.
