DYJN-109
Features
-
Capable of measuring non-rotating and rotating torque
-
Torque accuracy reaches ±0.5%FS.
-
Measurement range and socket (sleeve) dimensions are customizable.
-
A display mounted on the top of the socket displays torque in real time.
-
Real-time torque and maximum torque (peak value) can be switched between display options.
-
Equipped with real-time wireless torque data transmission, the wireless transmission distance is up to 10 meters.
-
Dedicated PC software automatically saves real-time torque display, bolt tightening quantity, torque curves, and other information in Excel format for easy tracking and querying.

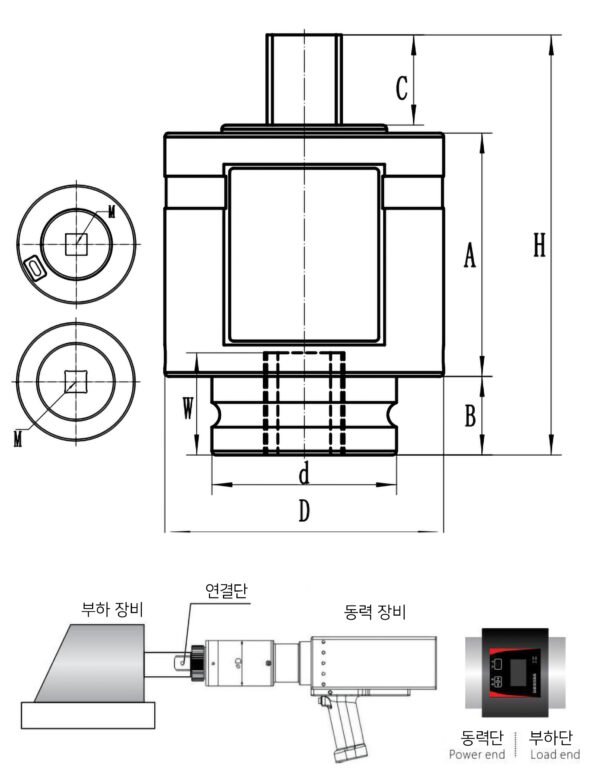

Dimensions
| Capacity(mm) | M | A | B | C | W | H | d | D |
| 300~500N·m | 1/2(12.7*12.7) | 62 | 20 | 23 | 26 | 107 | 47 | 71 |
| 600~1,200N·m | 3/4(19.1*19.1) | 62 | 20 | 23 | 26 | 107 | 47 | 71 |
| 1,500N·m | 1/1(25.4*25.4) | 62 | 30 | 28 | 31 | 122 | 52 | 76 |
| 5,000N·m | 3/2(38.1*38.1) | 62 | 40 | 39 | 40 | 143 | 75 | 99 |
| 10,000~30,000N·m | 5/2(63.5*63.5) | 62 | 66 | 55 | 56 | 187 | 128 | 154 |
Specifications
| Item | Unit | Value |
|---|---|---|
| Rated Capacity | N·m | 0–30000 |
| Output Sensitivity | mV/V | 1.0–2.0 |
| Zero Output | %F.S. | ±2 |
| Non-linearity | %F.S. | 0.5 |
| Hysteresis | %F.S. | 0.5 |
| Repeatability | %F.S. | 0.2 |
| Creep (30 minutes) | %F.S. | 0.05 |
| Temp. Effect on Sensitivity | %F.S./10℃ | 0.05 |
| Temp. Effect on Zero | %F.S./10℃ | 0.1 |
| Annual Stability | %/year | 0.3 |
| Response Frequency | kHz | 1 |
| Material | — | Stainless Steel / 42CrMoA |
| Insulation Resistance | MΩ/100V DC | ≥2000 |
| Operating Voltage | V | 5–15 |
| Operating Temperature Range | ℃ | -10 to 50 |
| Safe Overload | %R.C. | 150% |
| Ultimate Overload | %R.C. | 200% |
