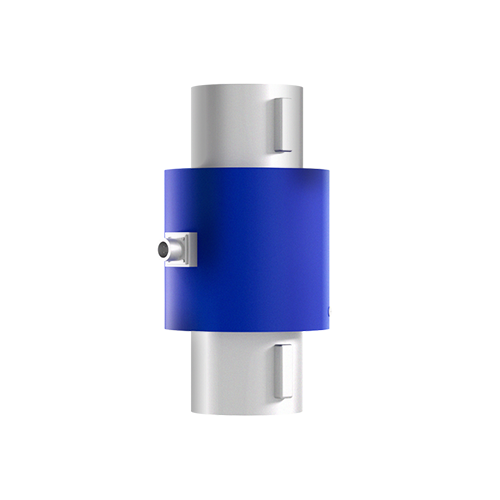

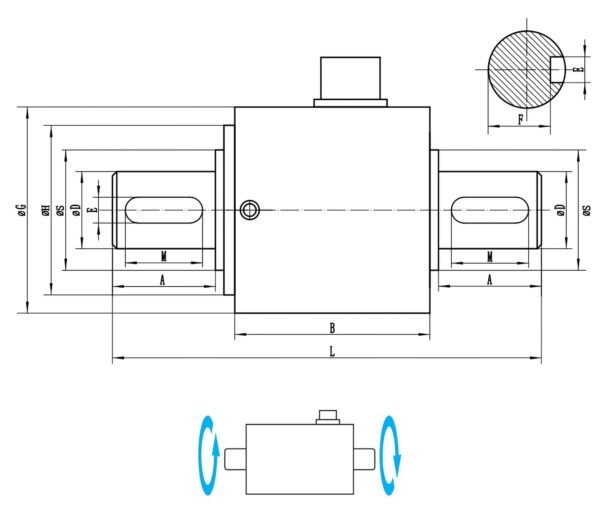

DAYSENSOR / DYJN-106 / Torque Sensor

The ZHKY2050 is a compact non-contact type torque sensor ideal for low torque applications with maximum of only 5N·m. The ZHKY2050 can still handle up to 8000RPM so it is for systems that require high speed.

For static, non-continuous torque measurement

10,20,50,100,200,500t Or Customized Dynamic Torque Sensor Force Torque Sensor FA607A belongs to FA607 which is in Dynamic Torque Sensor Force Torque Sensor category of our brand FIBOS FA6-Series, Dynamic Torque Sensor Force Torque Sensor FA607 its Creep(30min),Non-linearity and Hysteresis all ≤0.15%F.S. or can be customized, its Repeatability ≤0.13%F.S. or customized.

The ZM2DW force sensor F, M utilizes independent wheatstone full bridge for each axis which provides mV/V output proportional to the applied force and requires no mathematical manipulation. Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement,etc.

Compact size

This sensor is suitable for most domestic and foreign cooperative robots. It is an embedded high-precision six-axis force sensor that our company hot sells. It uses silicon strain gauge, based on the principle of strain electrical measurement to convert the load into voltage signal, combined with six axis joint calibration technology to make the product achieve higher accuracy and precision. It is widely used in 3C testing, medical testing, drag teaching, automobile testing, and other fields.

1、Static torque sensor is a kind of sensor used to measure the torque of a stationary or slowly rotating object.
2、The flange mounted sensor is connected with a load transfer device, which can output voltage or current signals.
3、It is used for static discontinuous rotation, non-standard customization, anti-interference signal stability, and is widely used in static torque testing systems such as testing machines, torque wrenches, steering gears, electric actuators, valves, transmissions, and hydraulic pressure.
4、Small size, light weight and convenient installation and use.
5、 High detection accuracy, good stability and strong anti-interference ability.

100,200,1000,2000,3000N.m Or Customized Static Torque Sensor Force Torque Sensor FA625B belongs to FA625 which belongs to Static Torque Sensor of Force Torque Sensor category, FA625B can be used to measure Static Torque force 100N.m,200N.m,1000N.m,2000N.m and 3000N.m or customized capacity, its Cable size is ⌀6x4500mm or can be customized.

The ZMNJF2 is a non-rotating type torque transducer that converts a torsional mechanical input into an electrical output signal. The ZMNJF2 can be used in both clockwise and counterclockwise direction ranging from 1000Nm up to 5000Nm. The sensor is used in static and non-rotating torsion measure applications.

Nickel plated alloy steel

The ZHKY901 is a rugged non-contact type torque sensor ideal for high torque applications with maximum of 300kN·m. The ZHKY901 is built with a stainless steel shaft and an aluminum body that can high capacities at high speeds of up to 8000RPM.

ZHKY901은 최대 300kN·m의 고토크 어플리케이션에 적합한 견고한 비접촉식 토크 센서입니다. ZHKY901은 스테인리스 스틸 샤프트와 알루미늄 바디로 제작되어 최대 8000RPM의 고속에서도 높은 성능을 발휘합니다.

The ZHKY2050A is a series of non-contact type torque sensors ideal for testing and measurement of industrial rotating machines. Designed to be small and rugged it can easily be installed in a variety of industrial applications. The sensor can output torque and speed for measuring power exerted by the attached rotating machine.
