Inline Load Cells DYMH-104
Characteristic and Application fields
It has the advantages of bi-directional tension and compression, compact structure, high comprehensive precision, good long-term stability and nickel plating on the surface of high-quality alloy steel.
Universal materisl testing machine, hopper scale, hook scale, packaging scale, belt scale, plug-in force tester and othere tension and pressure testing instruments as well as automation equipment and testing field.
Dimension(mm)
Capacity (kg) 20 50 100 200 300 500 1000 2000 3000 5000
Wiring diagram

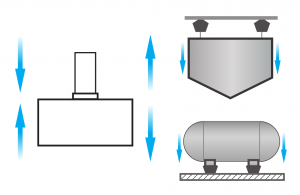

Force diagram
Technical parameter
| Parameter | Unit | Technical
Specifications |
Parameter | Unit | Technical
Specifications |
| Sensitivity | mV/V | 2.0±10% | Temperature coefficient of sensitivity | ≤%F·S
/10℃ |
±0.1 |
| Nonlinear | ≤%F·S | ±0.3 | Operating temperature range | ℃ | -20℃～+80℃ |
| Hysteresis | ≤%F·S | ±0.1 | Input resistance | Ω | 350±50Ω |
| Repeatability | ≤%F·S | ±0.1 | Output Resistance | Ω | 350±5Ω |
| Creep | ≤%F·S/30min | ±0.1 | Safe Overload | ≤%F·S | 150% F·S |
| Zero output | ≤%F·S | ±1 | Insulation resistance | MΩ | ≥5000MΩ(50VDC) |
| Zero temperature
coefficient |
≤%F·S/10℃ | ±0.1 | Excitation voltage | V | 5V-15V |
