Specification
| Operating Voltage | 10-30Vdc or 5V polarity protection |
| Current Consumption | < 40mA (24V power supply) no load |
| Output Signal | Modbus RTU output
Conform to the standard of GB/Z19582 Settable for length/ angle /velocity measurement |
| Linearity Resolution | 1/4096 |
| Laps
Repeatability Precision Signal adjustment |
1~4096 laps, Clock-type gear structure
Repeatability ±2BIT( Actual precision related with installation and shaft concentricity.) Resolution or direction settable, external setting line preset functiion. |
| Operating Temperature | -25—80℃ Programming temperature range：0℃～＋70℃ |
| Storage Temperature
Protection class Vibration & shock |
-40—80℃
IP67 for housing IP65 for shaft 20g，10～2000Hz；100g，6ms |
| Permissible Rotation Rate | 2400rpm |
| Connection Cable | 1m 8-core shielded cable. |
| Overall Feature | Clamping flange or synchronous flange, metal enclosure, sealed dual-bearing structure ( see attached drawing of overall dimension) |
Modbus RTU Factory Parameters
| Function code | parity | Baud rate | address | resolution | direction |
| 04 | even | 9600 | 1 | 4096 | CW |
Instance
Reset command
Host sends 01H 05H 00H 00H check code
Slave reply: 01H 05H 00H 00H check code
Read the measurement data commands
Host sends 01 04 00 01 00 02 20 0B
Note: 01 is encoder address , 04H is function code , 00H 01H is the data address , 00H 02H is data length , 20H 0BH is check code.
Slave reply: 01H 04H 04H 00H 00H 01H 00H FAH 14H
Note: 01 is encoder address, 04H is the function code, 04H is the data length, 00H 00H 01H 00H is the data, FAH 14H is check code.
Installation dimensions (mm)

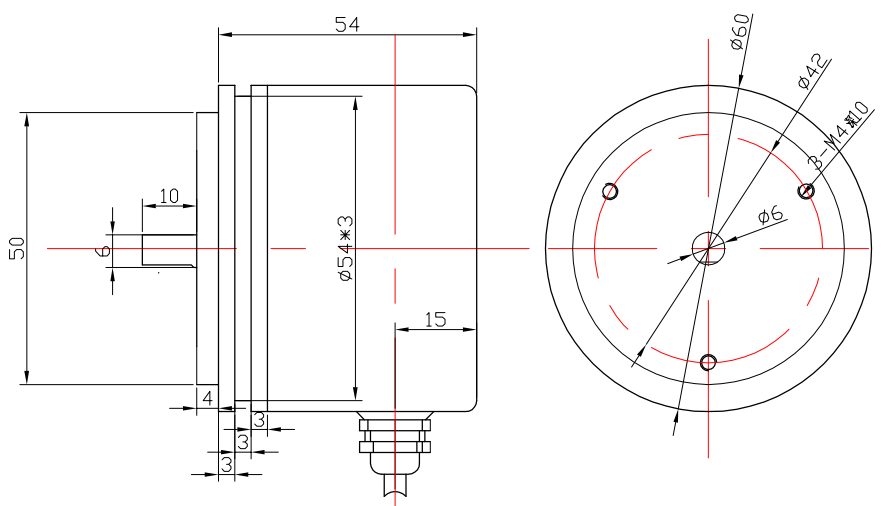

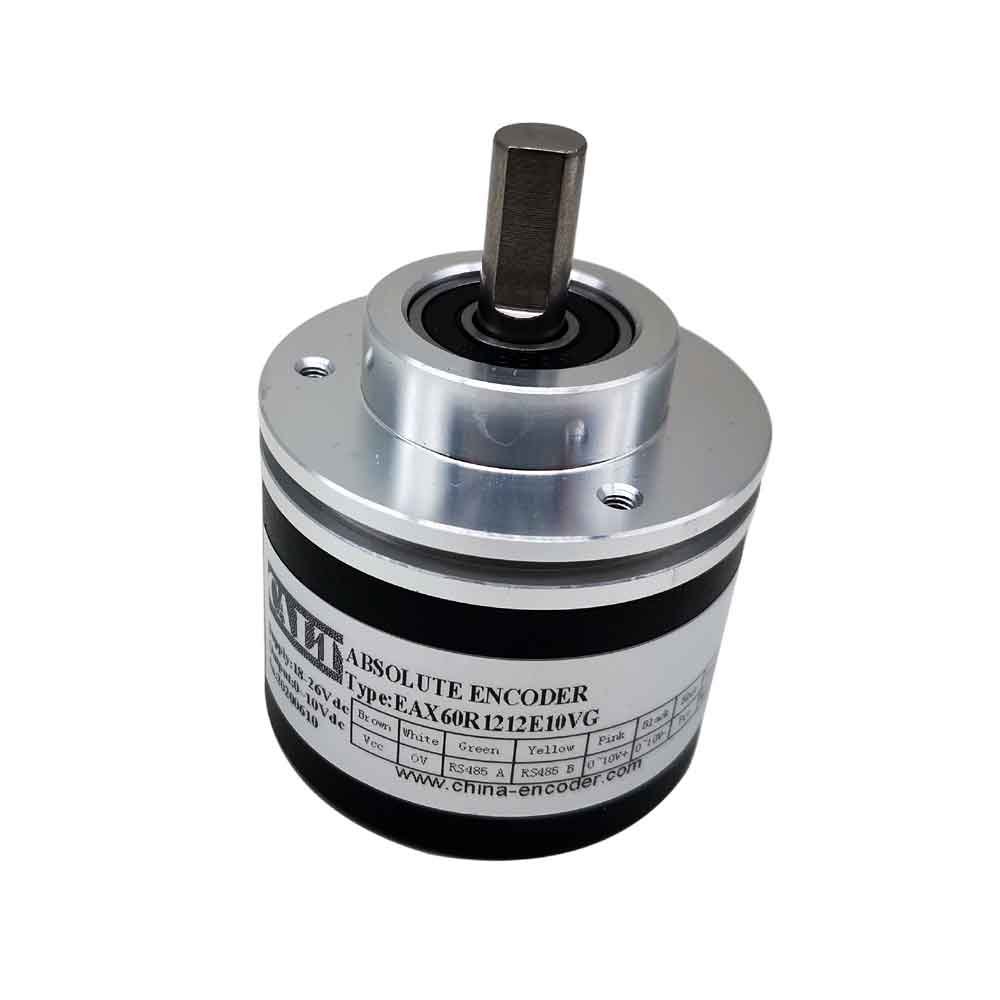

Clamping & synchro flange(default)

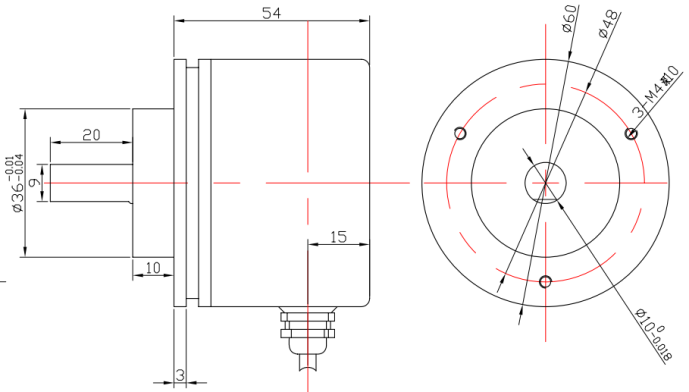

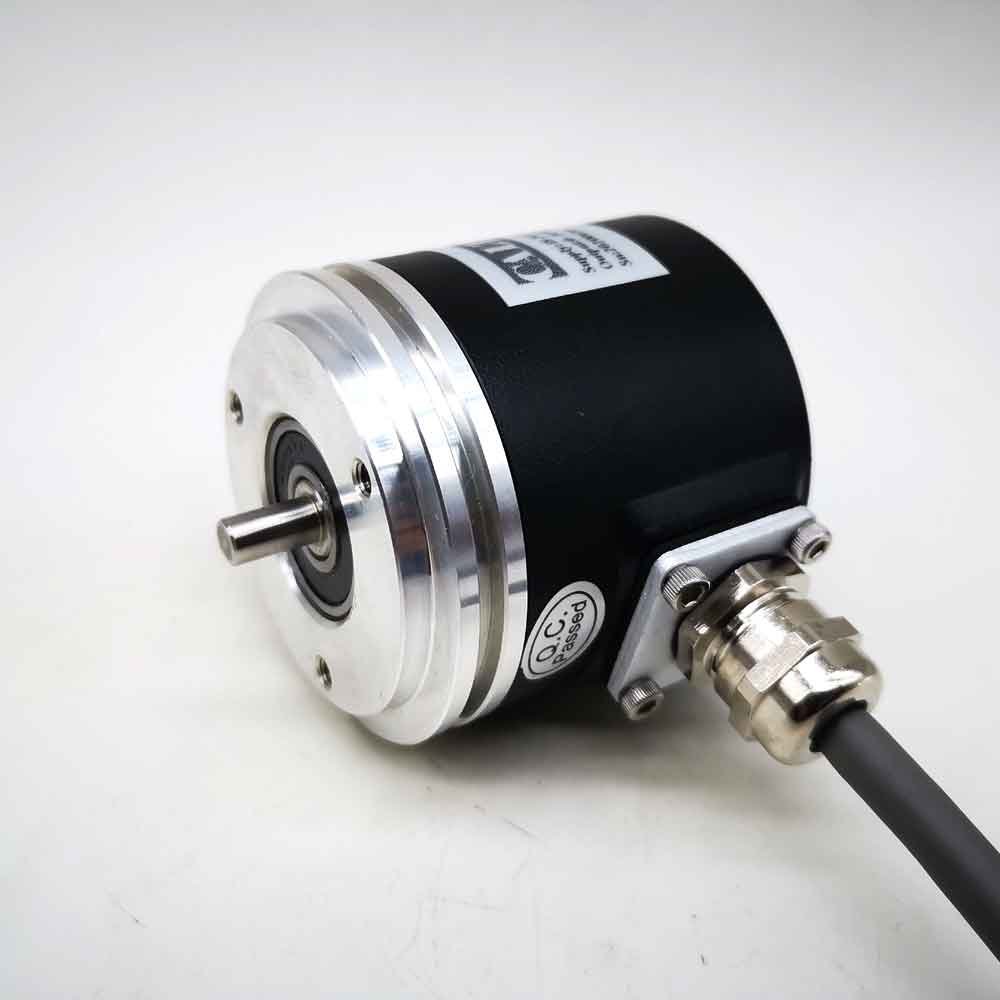

synchro flange

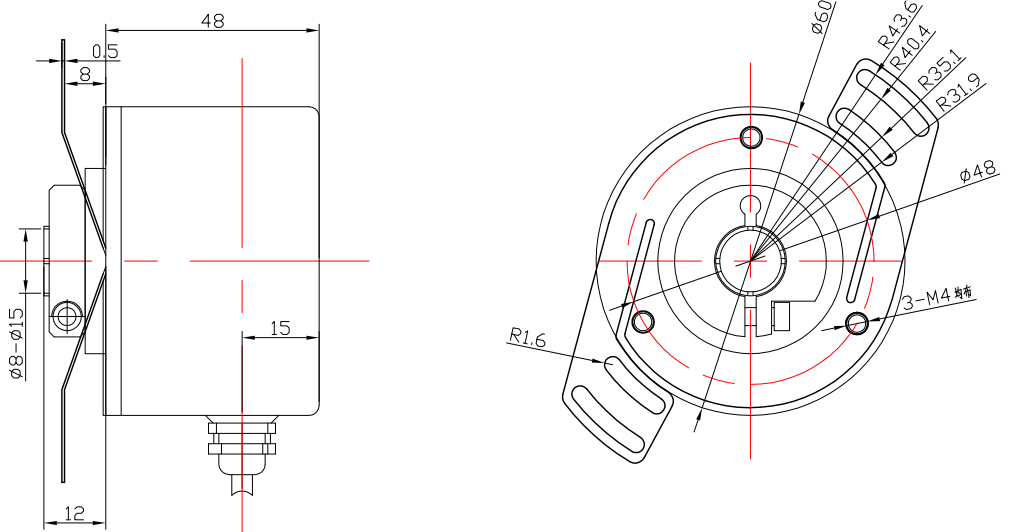

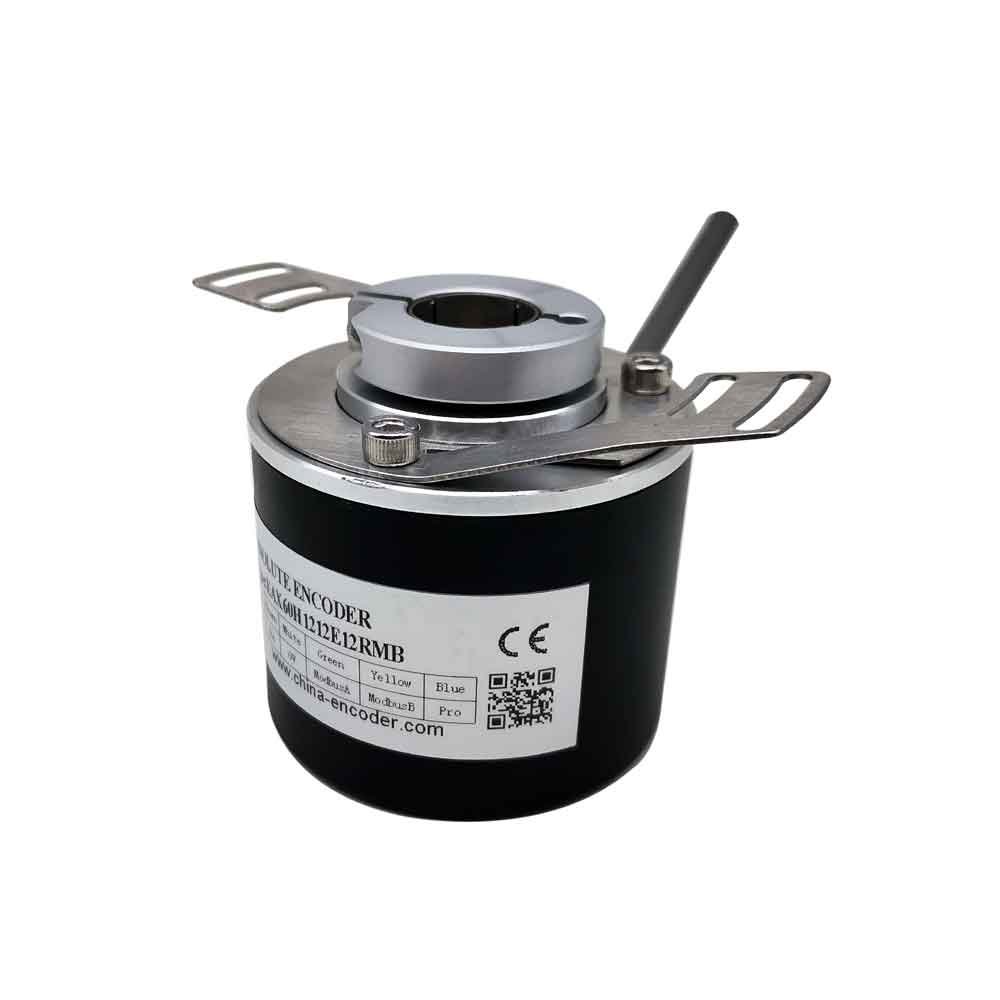

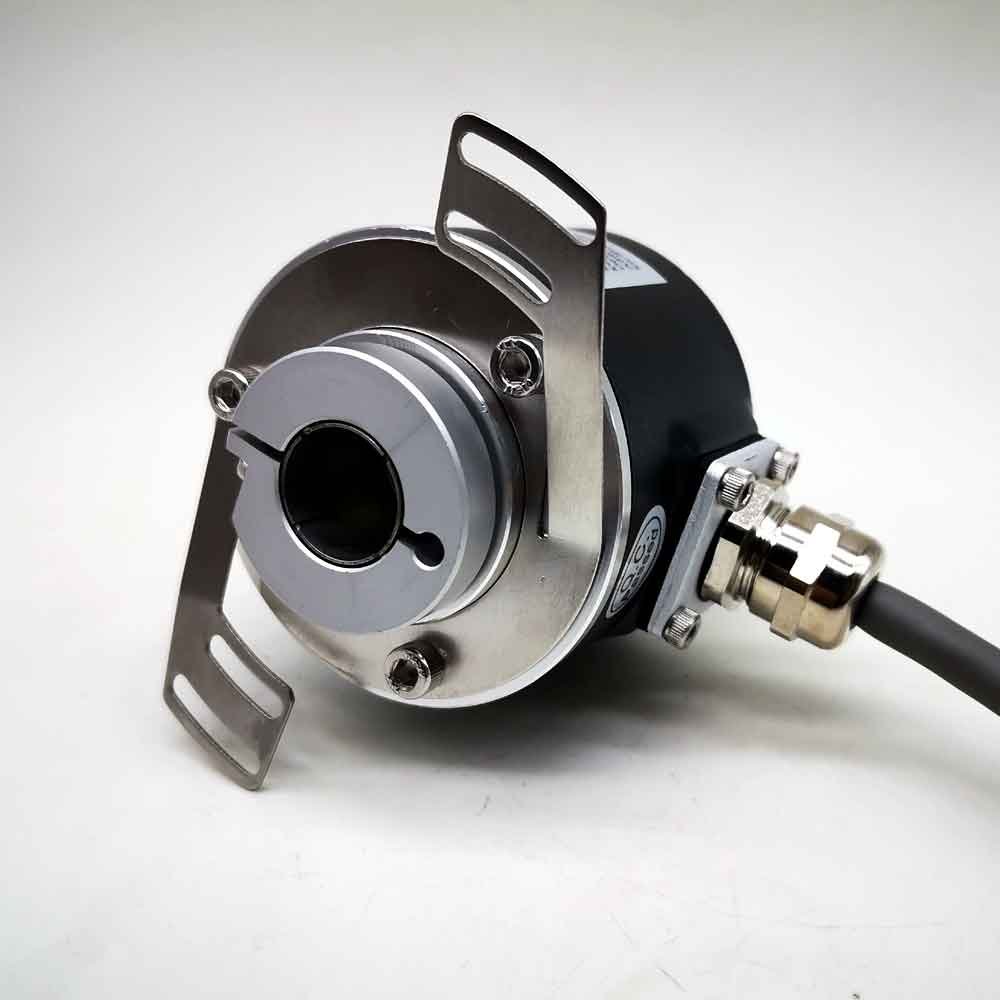

Blind hollow shaft
