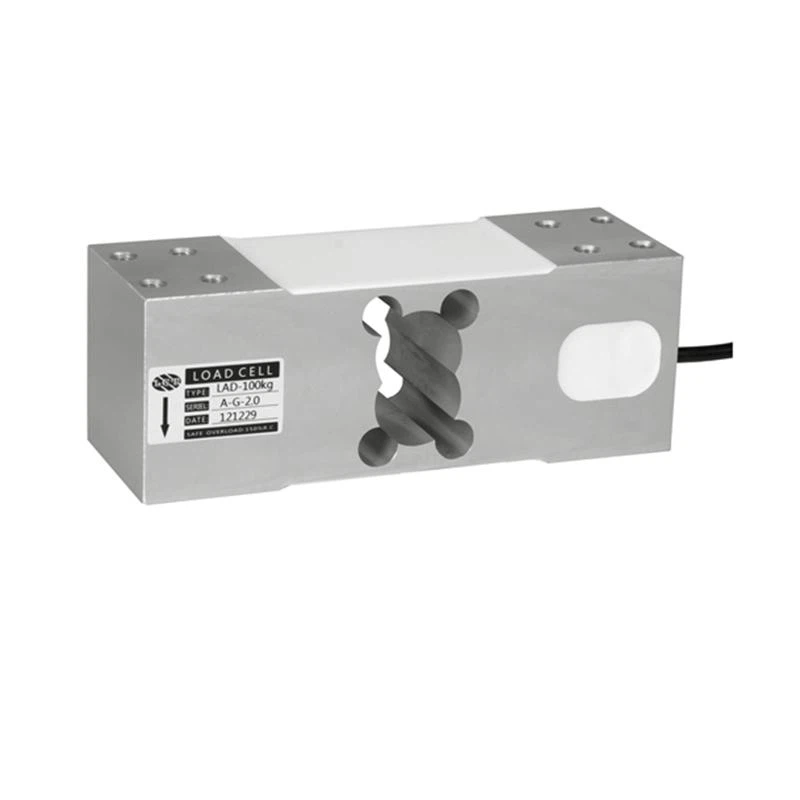

BRG805 Load Cell and Strain Gauge
Features
● Parellel bending beam
● Capacity: 60kg, …, 3000kg
● Accuracy: 0.02%R.O.
● Option: OIML C3 and 0.015%R.O.
● Recommended platform size: 800*800MM
● Aluminum construction with surface anodized
● Environment protection class: IP65
Applications Load Cell and Strain Gauge
● Price computing scales
● Counting scales
● Weighing scales
● Retail scales
● Bench scales
● Platform scales
Description
Load Cell and Strain Gauge have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. A Single Point Load Cells is also called Platform Load Cell.
Advantages of Load Cell and Strain Gauge:
Quick to install thanks to off-center load compensation at the factory (per OIML R60), and only one unit is sufficient to build up a scale.
Load Cell and Strain Gauge are designed to this “single point”type and manufactured from high quality aluminum alloy of aviation standard. LAD-A load cells can be used to measure loads range from 60kg to 3000kg with the measuring accuracy of 0.02% R.O.( R.O.=Rated Output)
BRG805 load cells are mainly used for price computing scales, counting scales, weighing scales, retail scales, bench scales and platform scales.
Dimension
Electrical Connection
Technical Data
| Rated Capacity | 60, 100, 200, 300, 500, 600, 800, 1000, 3000 (kg) |
| Accuracy Class | G * |
| Rated Output | 2.0± 5%mV/V |
| Zero Balance | ±5%R.O. |
| Input Resistance | 405±10Ω |
| Output Resistance | 350±3Ω |
| Linearlty Error | ±0.015%R.O. |
| Repeatability Error | ±0.01%R.O. |
| Hysteresis Error | ±0.01%R.O. |
| Creep in 30 Min. | ±0.02%R.O. |
| Temp.Effect on Output | ±0.02%R.O./10℃ |
| Temp.Effect on Zero | ±0.02%R.O./10℃ |
| Compensated Temp.Range | -10－+40℃ |
| Excitation, Recommended | 5－12VDC |
| Excitation, Maximum | 18VDC |
| Operating Temp.Range | -20－+60℃ |
| Safe Overload | 150%R.C. |
| Ultimate Overload | 200%R.C. |
| Insulation Resistance | ≥5000MΩ(50VDC) |
| Cable, Length | ø5mm×2m * |
| Protection Class | IP65 |
Application
From high precision micro-analysis to more than 100 tons of weighing application, we specialize our products and solutions around various processes of the petrochemical, metallurgical, chemical, port, building material, breeding, paper making, pharmaceutical, food, textile, and logistics industry. Main products of load cell: electronic weighing scale (bench scale, floor scale, platform scale, crane scale, animal scale, pallet truck scale), digital weighing indicator, load cell, sensor, weighing module, etc.
