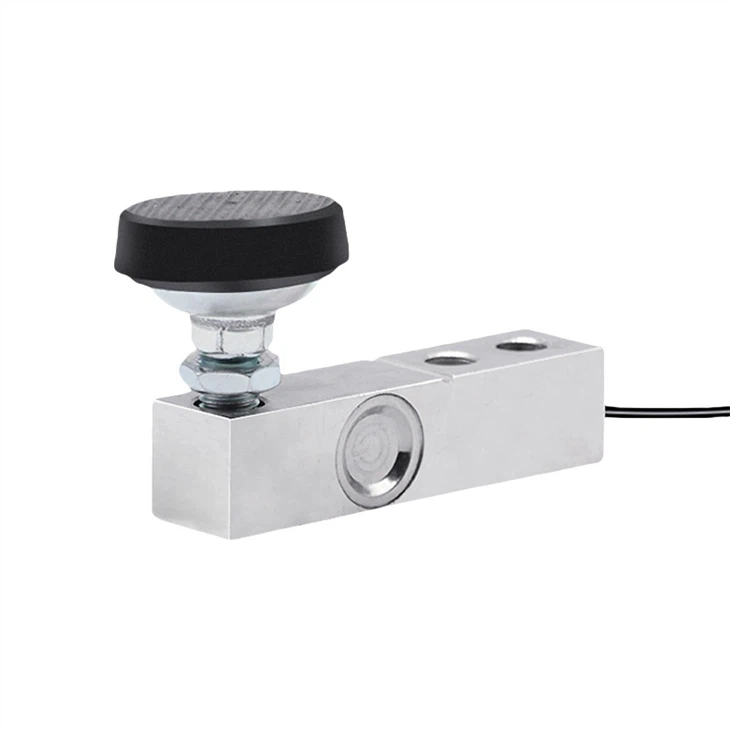

BRG-320 Cantilever Beam Load Cell
Description
Features :
- High precision and good performance
- Four corner error adjustment
- Suitable for platform weighing
- Simple structure, easy to use
Technical Parameters
| Model | BRG-320 |
| Capacity | 0.05t~10t |
| Related output | 3.0± 0.04 MV/V |
| Accuracy class | C2 C3 |
| Maxlmum number of verification intervals | 2000n max 3000n max |
| Minimum load cell verification intervals | E Max/5000 V min E Max/7500 V min |
| Combined erro | ≤ ±0.03 %RO ≤ ±0.02 %RO |
| Creep | 0.02 %RO/ 30min 0.014 %RO/ 30min |
| Temperature effect on sensitivity | 0.0016 %RO /℃ |
| Temperature effect on zero | 0.003%RO /℃ 0.002%RO /℃ |
| Zero balance | ±1.0 %RO |
| Input resistance | 365± 10 Ω 1050± 10 Ω |
| Output resistance | 350± 3Ω 1000± 5 Ω |
| Insulation resistance | 5000MΩ (50V) |
| Recommended excitation voltage | 10~ 12V |
| Compensated temperature range | -10 ~+40 ℃ |
| Operating temperature range | -35 ~+80 ℃ |
| Safe overload | 150 %RO |
| Ultimate overload | 200 %RO |
| Load cell material | Alloy steel IP67 |
| 17-4 stainless steel IP68 | |
| Connecting cable | 0.25~3t φ5.7*3.5m |
| 5~10t φ5.7*6m |
Product size chart (unit:mm)
Product Advantages :
- Strong anti-interference capability;
- Precise and reliable;
- High stability; Alloy steel material;
- Precision manufacturing;
- Extra-long shelf life.
High Accuracy During Measurement.
Made of high-quality alloy steel, it has a compact structure, high overall accuracy, and good long-term stability.
Metal Sealing Joint
Excellent sealing performance, durable, reduces mechanical impact, and has a long service life.
Force Bearing Method
